Parts Location: Illustration

Fig 1: Identifying Lighting System Components (1 Of 6)
GTY141032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

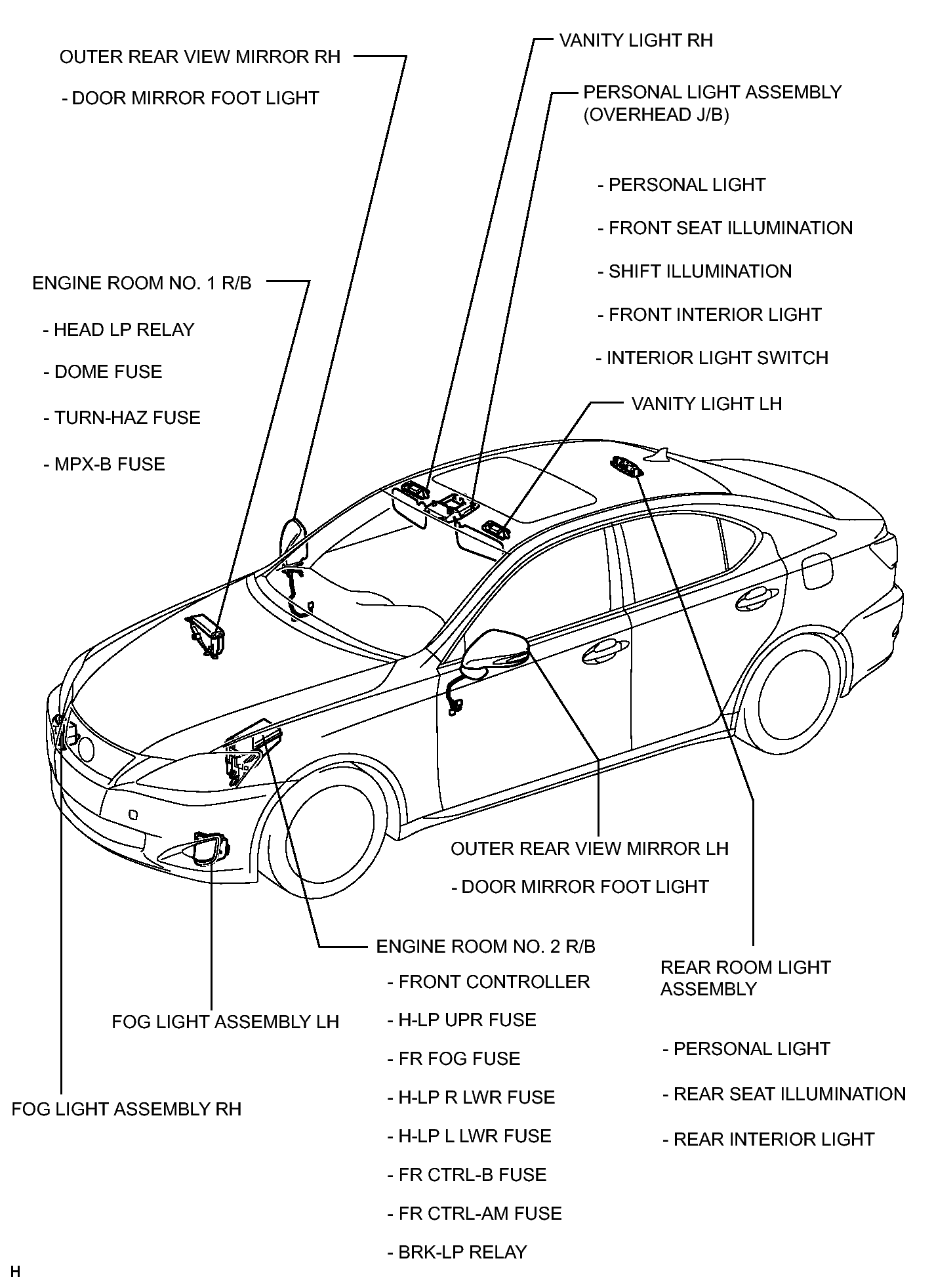

Fig 1: Identifying Lighting System Components (2 Of 6)
GTY143264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components (3 Of 6)
GTY122928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components (4 Of 6)
GTY128364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components (5 Of 6)
GTY126281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components (6 Of 6)
GTY144444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
