Turn Signal Light Circuit: Wiring Diagram

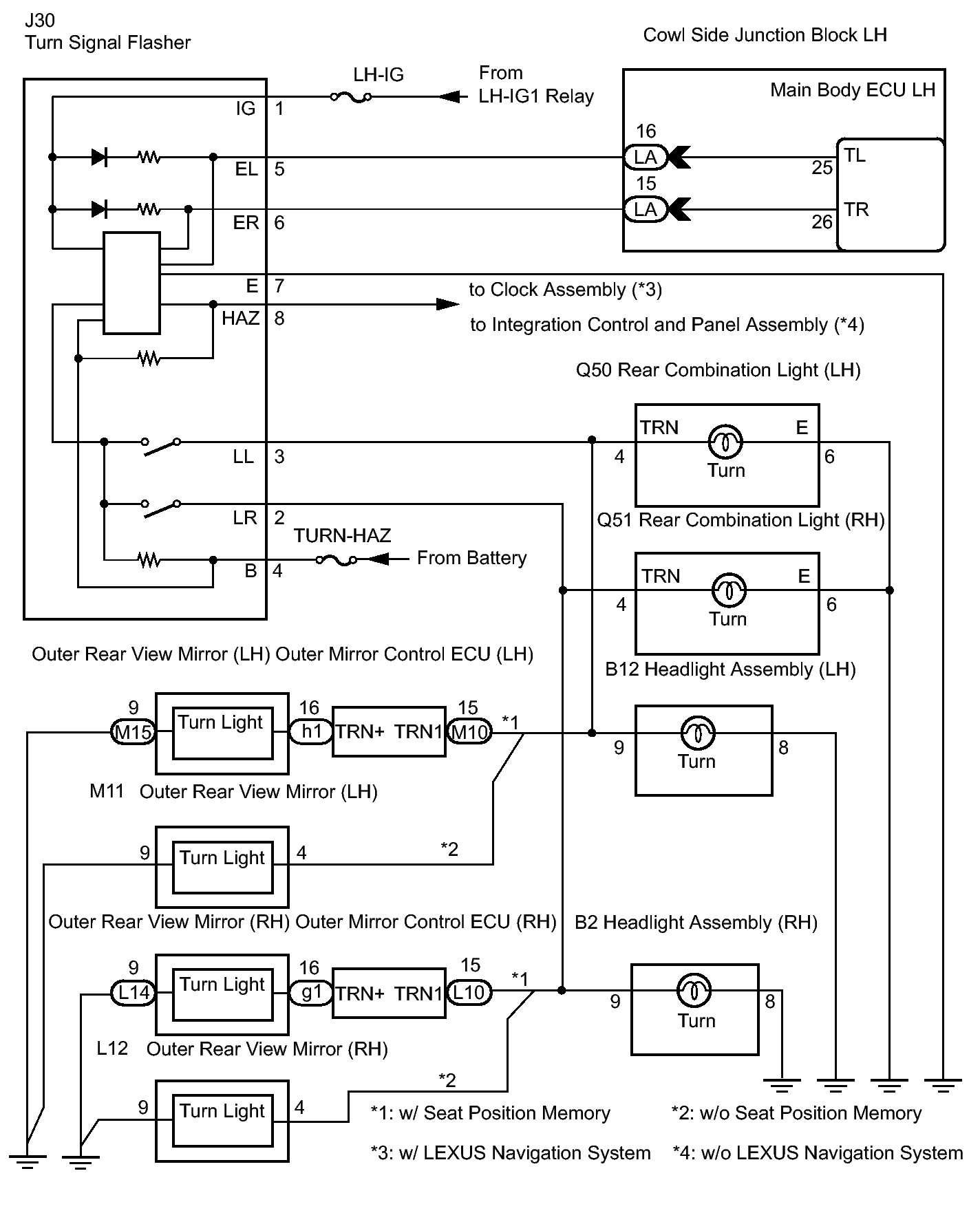

Fig 1: Identifying Turn Signal Light Circuit Wiring Diagram

GTY134565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
