Headlight Relay Circuit: Wiring Diagram

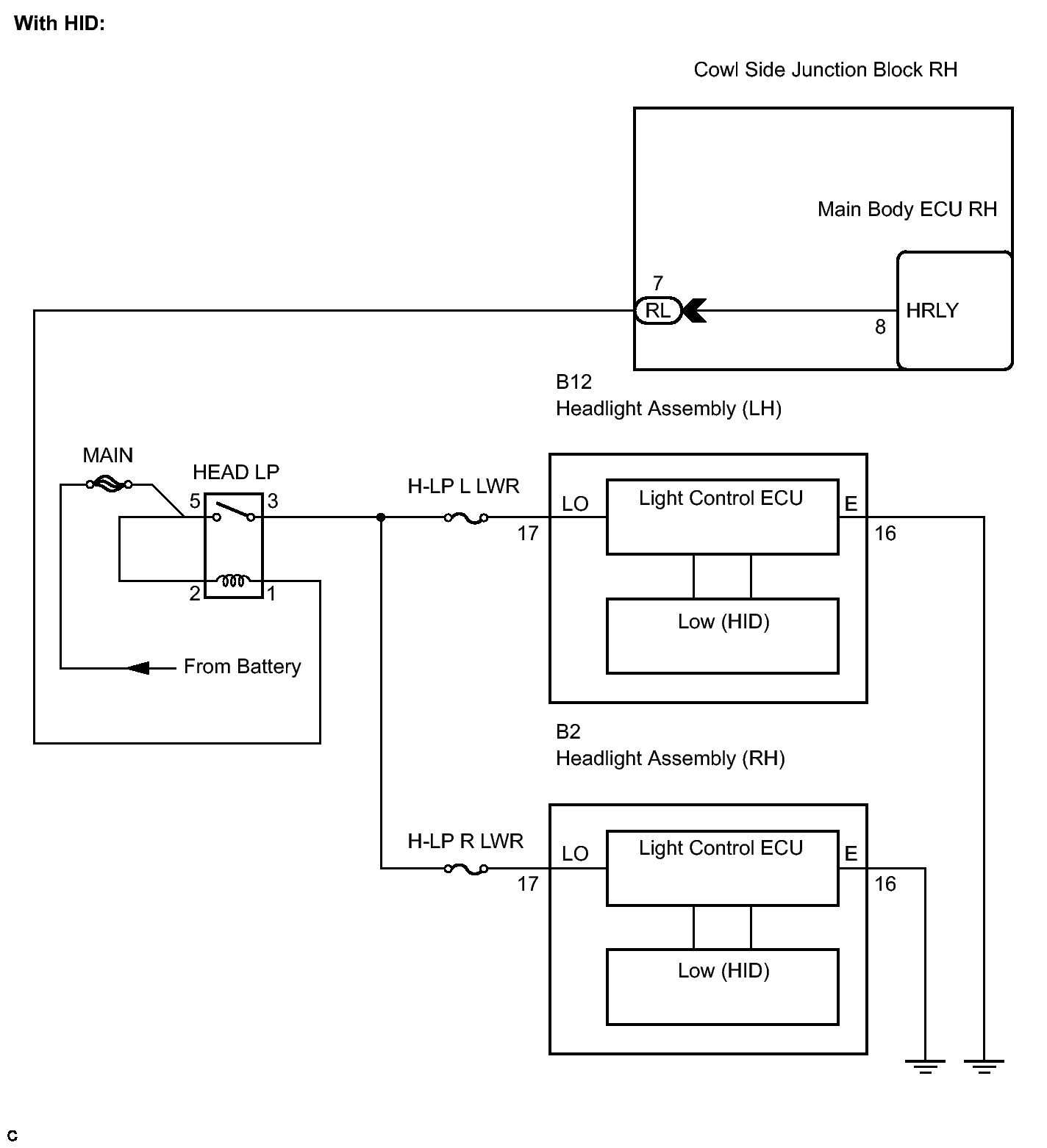

Fig 1: Identifying Headlight Relay Wiring Diagram (1 Of 2)
GTY151397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

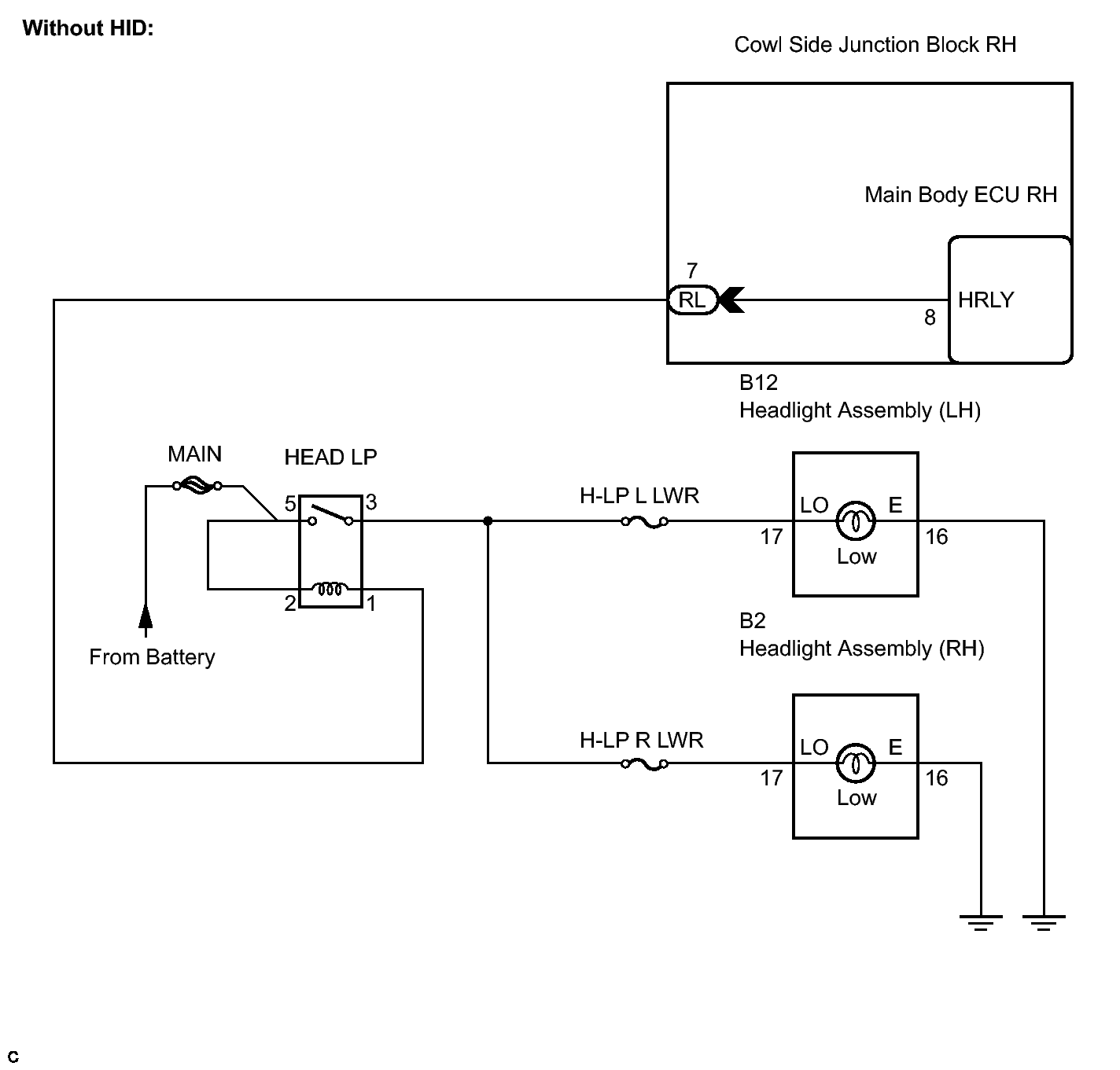

Fig 2: identifying Headlight Relay Wiring Diagram (2 Of 2)
GTY151398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
