Hazard Warning Switch Circuit: Wiring Diagram

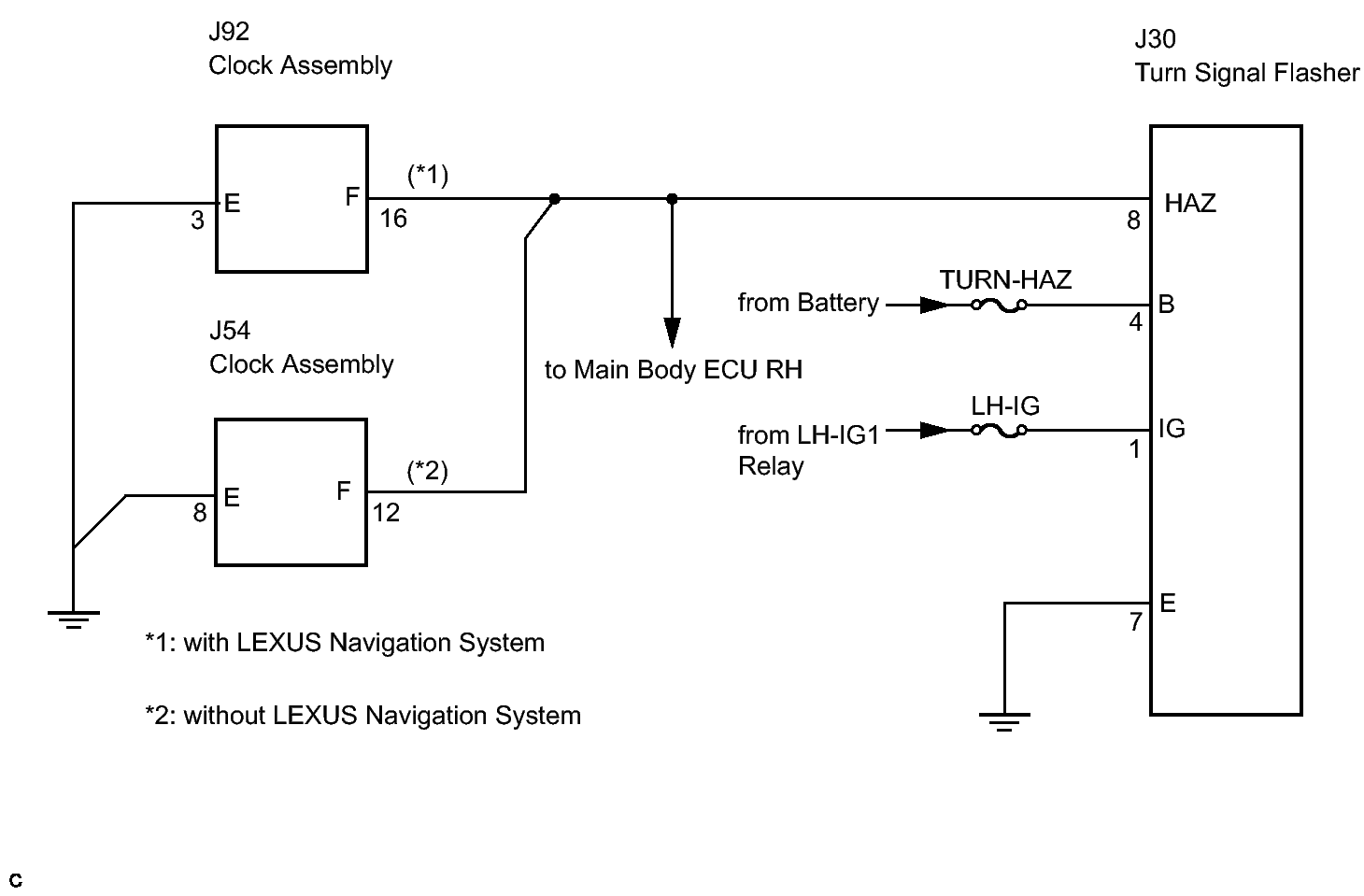

Fig 1: Identifying Hazard Warning Switch Circuit Wiring Diagram

GTY124105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
