Instrument Panel Safety Pad: Removal: Removal

  1. PRECAUTION

    Refer to PRECAUTION

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

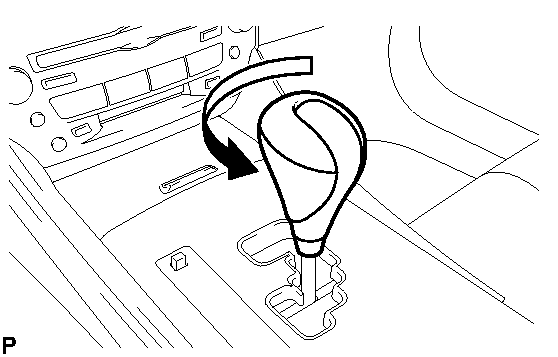

      Fig 1: Removing Shift Lever Knob Sub-Assembly (Automatic Transmission)
      GTY126729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

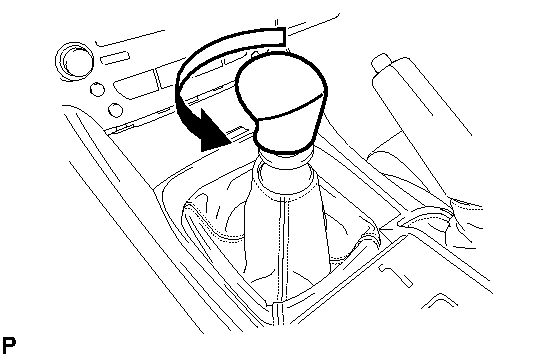

      Fig 2: Removing Shift Lever Knob Sub-Assembly (Manual Transmission)
      GTY119136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Using a molding remover, disengage the claw.

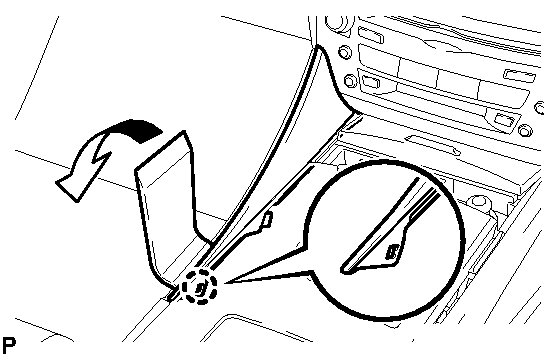

      Fig 3: Removing Upper No. 1 Console Panel Garnish
      GTY119110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove the upper No. 1 console panel garnish.

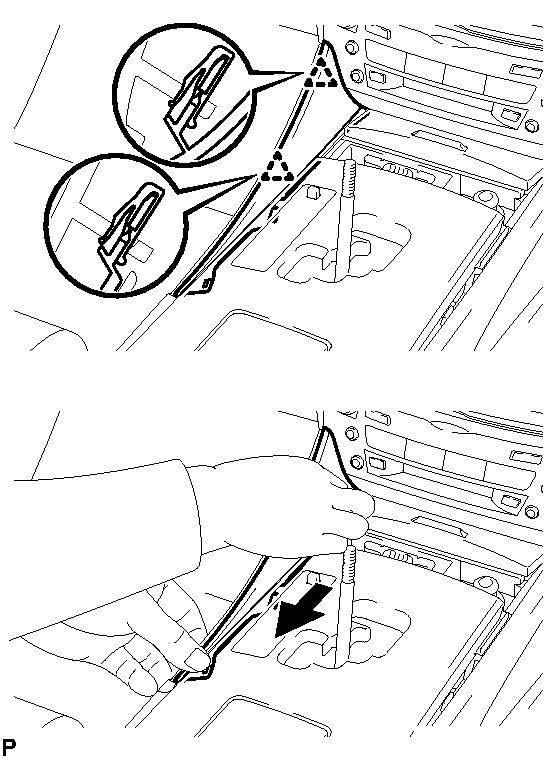

      Fig 4: Pulling Upper No. 1 Console Panel Garnish
      GTY142061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Using a molding remover, disengage the claw.

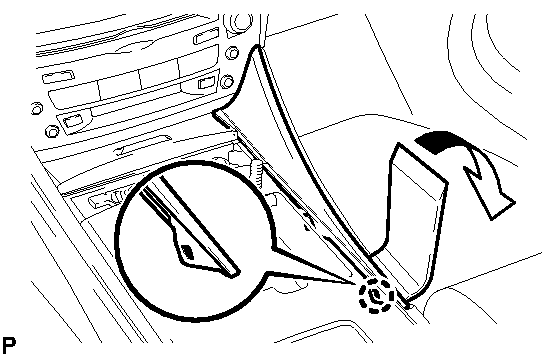

      Fig 5: Removing Upper No. 2 Console Panel Garnish
      GTY119109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove the upper No. 2 console panel garnish.

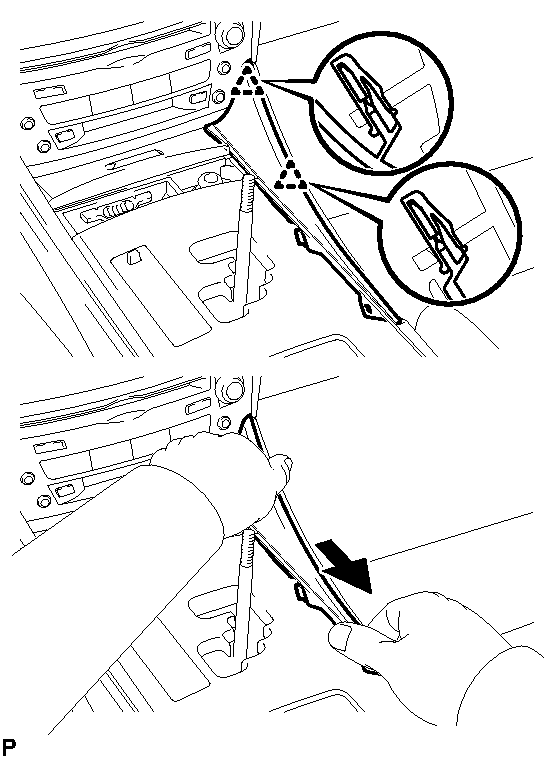

      Fig 6: Pulling Upper No. 2 Console Panel Garnish
      GTY126728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
    1. Disengage the 8 clips.

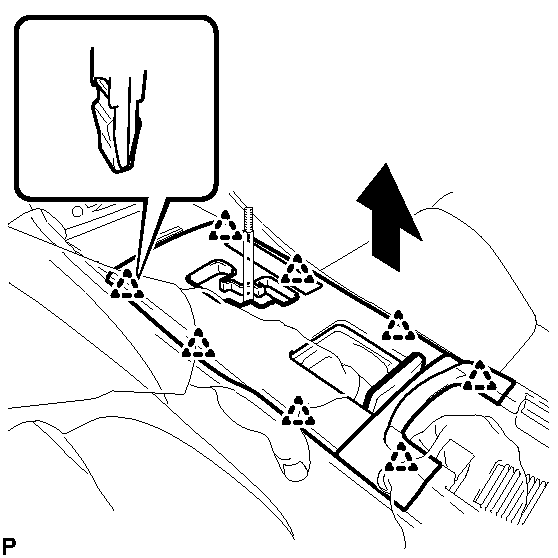

      Fig 7: Removing Console Panel Sub-Assembly
      GTY119111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and remove the console panel sub-assembly.
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Open the snap.

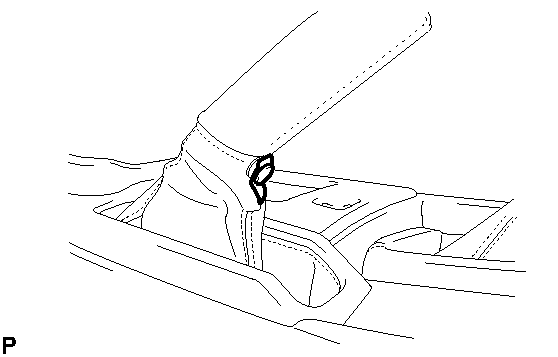

      Fig 8: Identifying Snap
      GTY131688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.

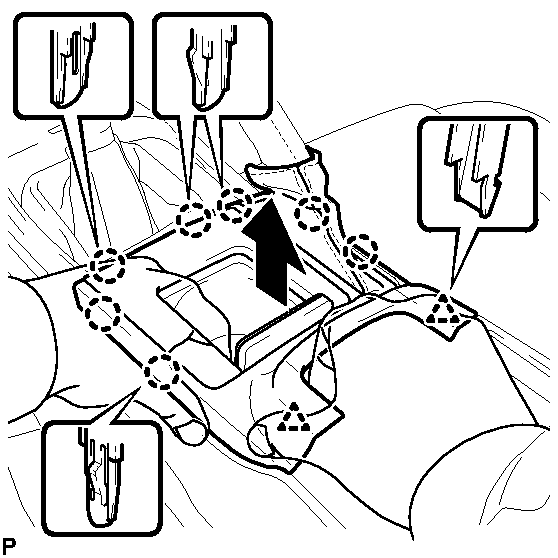

      Fig 9: Removing Rear Console Panel Sub-Assembly
      GTY126720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Open the snap.

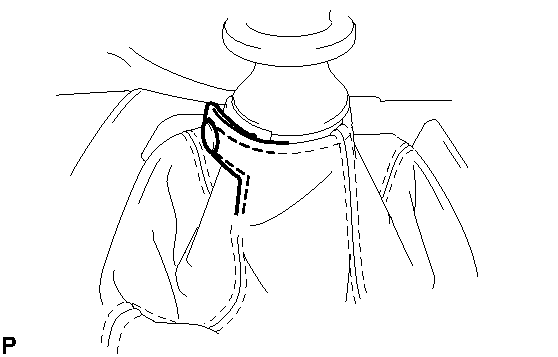

      Fig 10: Identifying Snap
      GTY131831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove the front console panel sub-assembly.

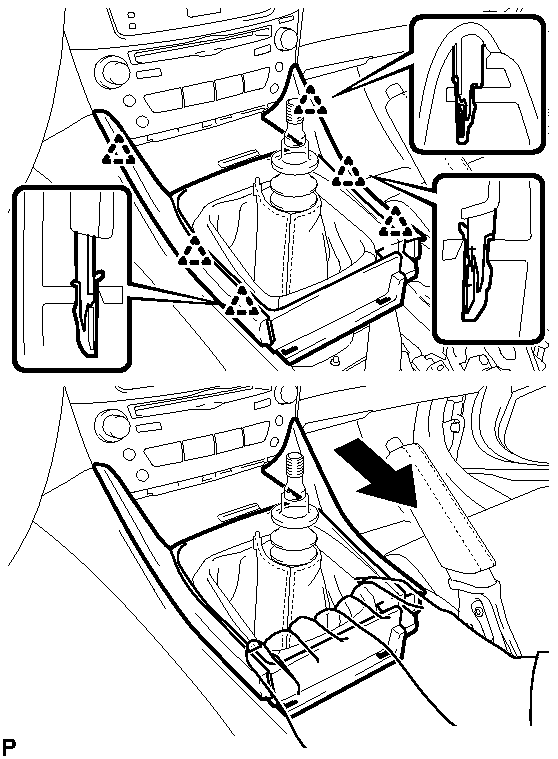

      Fig 11: Pulling Front Console Panel Sub-Assembly
      GTY119139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
    1. Remove the 2 screws <F>.

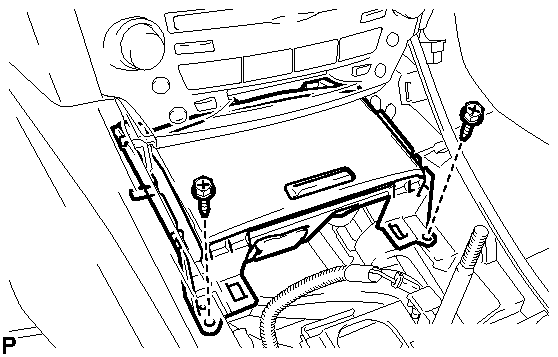

      Fig 12: Identifying Front Ash Receptacle Sub-Assembly Screws
      GTY134807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove the front ash receptacle sub-assembly.

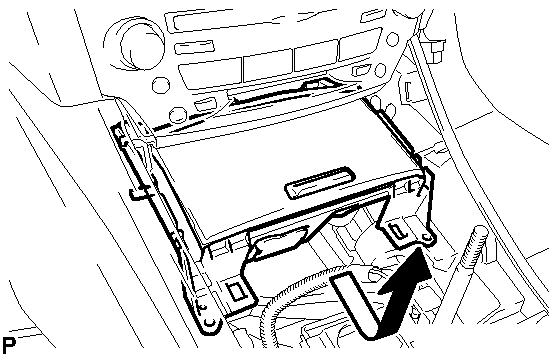

      Fig 13: Pulling Front Ash Receptacle Sub-Assembly
      GTY119402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Remove the rear ash receptacle assembly.

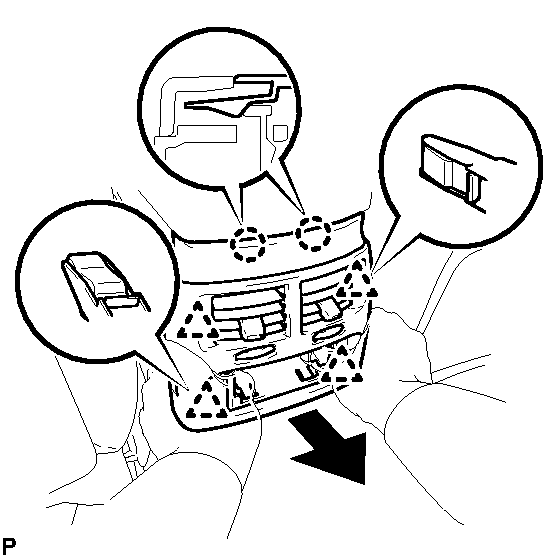

      Fig 14: Removing Console Box Register Assembly
      GTY119112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 4 clips to remove the console box register assembly.
  13. REMOVE CONSOLE BOX
    1. Remove the 2 bolts <C>.

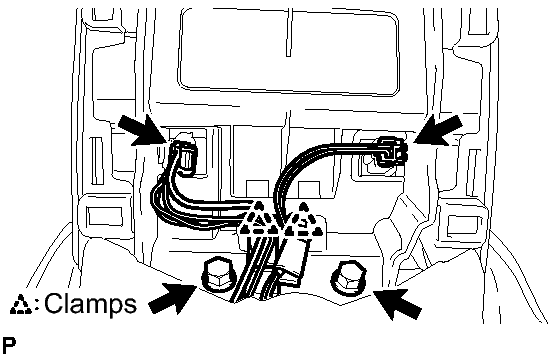

      Fig 15: Identifying Console Box, Connectors, Clamps, And Bolts
      GTY124166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
    3. Disengage the 2 clamps.
    4. Remove the 2 bolts <C>.

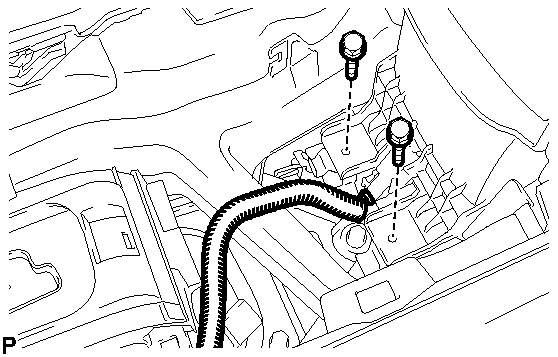

      Fig 16: Identifying Connector And Bolts
      GTY127575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector.
    6. Remove the 2 bolts <C>.
      Fig 17: Identifying Bolts
      GTY126441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 2 claws and 2 clips, and then remove the console box.
      Fig 18: Identifying Console Box, Claws, And Clips
      GTY138695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws.
      Fig 19: Identifying No. 3 Instrument Panel Register Assembly
      GTY129610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Apply protective tape to the areas shown in the illustration.
      Fig 20: Identifying Protective Tape
      GTY124262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a molding remover, disengage the 4 claws starting from the left of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
      Fig 21: Identifying No. 3 Instrument Panel Register Assembly And Claws
      GTY140288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly.

    4. Disconnect the connector and remove the No. 3 instrument panel register assembly.
      Fig 22: Identifying No. 3 Instrument Panel Register Assembly Connector
      GTY124230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Disengage the 4 claws to remove the center lower instrument cluster finish panel.
      Fig 23: Identifying Center Lower Instrument Cluster Finish Panel
      GTY119113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 17
  17. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 13
  18. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  19. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 3
  20. REMOVE STEERING PAD  . Refer to REMOVAL - Step 5
  21. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 11
  22. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)  . Refer to REMOVAL - Step 12
  23. REMOVE STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)  . Refer to REMOVAL - Step 12
  24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 13
  25. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)  . Refer to REMOVAL - Step 50
  26. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)  . Refer to REMOVAL - Step 52
  27. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 6 claws to remove the front door opening trim cover LH.
      Fig 24: Identifying Front Door Opening Trim Cover LH
      GTY143514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE SIDE INSTRUMENT PANEL LH
    1. Using a molding remover, disengage the 5 claws and 3 clips to remove the side instrument panel LH.

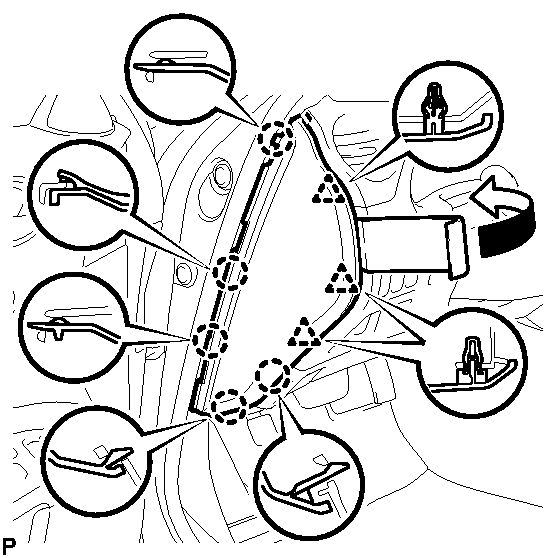

      Fig 25: Identifying Side Instrument Panel LH
      GTY126738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws <E>.
      Fig 26: Removing No. 1 Instrument Panel Under Cover Sub-Assembly
      GTY119114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the 2 claws in the direction indicated by the arrow to disengage them.
    3. Remove the No. 1 instrument panel under cover sub-assembly from the guide as shown in the illustration and pull the cover toward the rear of the vehicle.
    4. Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.
  30. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Disengage the 7 clips.
      Fig 27: Identifying Lower Instrument Panel Finish Panel Sub-Assembly
      GTY119115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
  31. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 9
  32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws and <G> and 2 clips, and then remove the instrument cluster finish panel sub-assembly.
      Fig 28: Locating Instrument Cluster Finish Panel Sub-Assembly
      GTY119116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE COMBINATION METER ASSEMBLY
    1. Using a screwdriver, disengage the 2 claws.

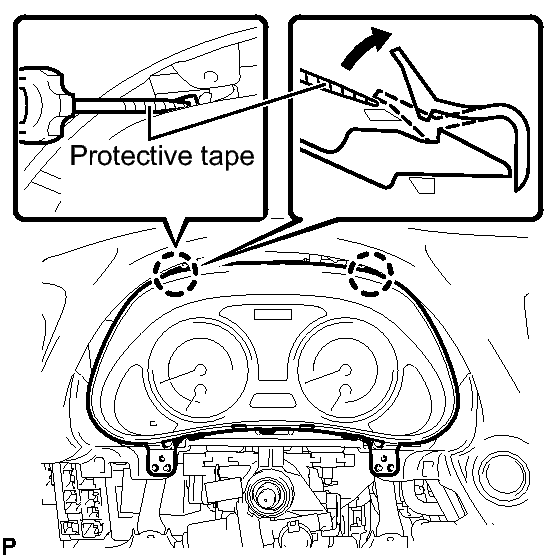

      Fig 29: Removing Combination Meter Assembly
      GTY138426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connectors and remove the combination meter assembly.
  34. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)

    HINT:

    Use the same procedure for the RH side and the LH side.

  35. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)

    HINT:

    Use the same procedure for the RH side and the LH side.

  36. REMOVE FRONT DOOR OPENING TRIM COVER RH
    1. Disengage the 6 claws to remove the front door opening trim cover RH.
      Fig 30: Identifying Front Door Opening Trim Cover RH
      GTY131264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE SIDE INSTRUMENT PANEL RH
    1. Using a molding remover, disengage the 5 claws and 3 clips to remove the side instrument panel RH.

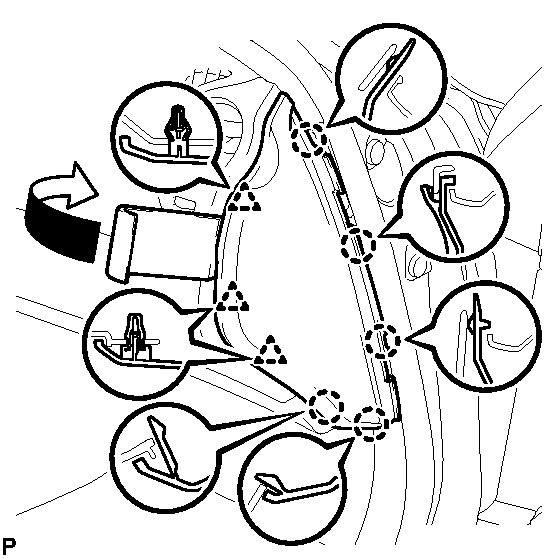

      Fig 31: Removing Side Instrument Panel RH
      GTY119117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Using a molding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.

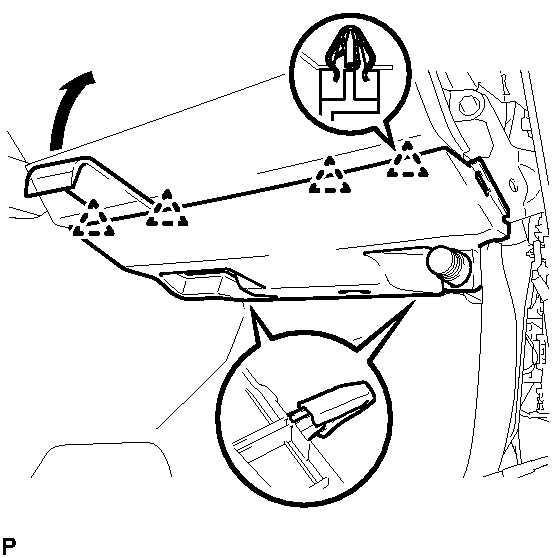

      Fig 32: Removing No. 2 Instrument Panel Under Cover Sub-Assembly
      GTY119118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 8
  40. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 5 screws <E>.

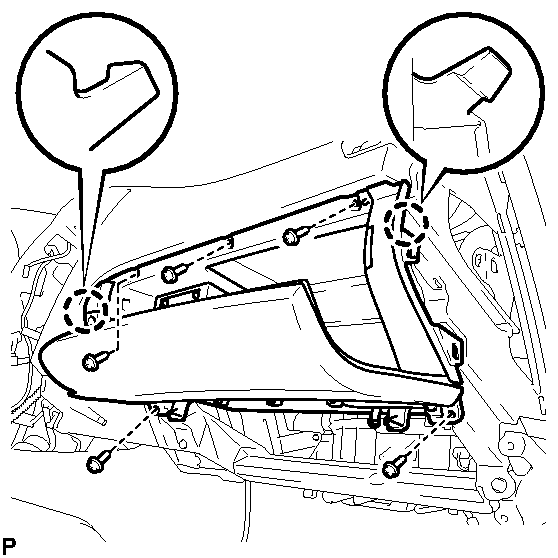

      Fig 33: Removing Connectors & Removing Glove Compartment Door Assembly
      GTY119119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.
    3. Disconnect the connectors and remove the glove compartment door assembly.
  41. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL - Step 56
  42. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  43. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Pull the No. 1 instrument panel register assembly in the direction indicated by the arrow to disengage the 7 claws and 2 clips to disconnect the connector and remove the No. 1 instrument panel register assembly.

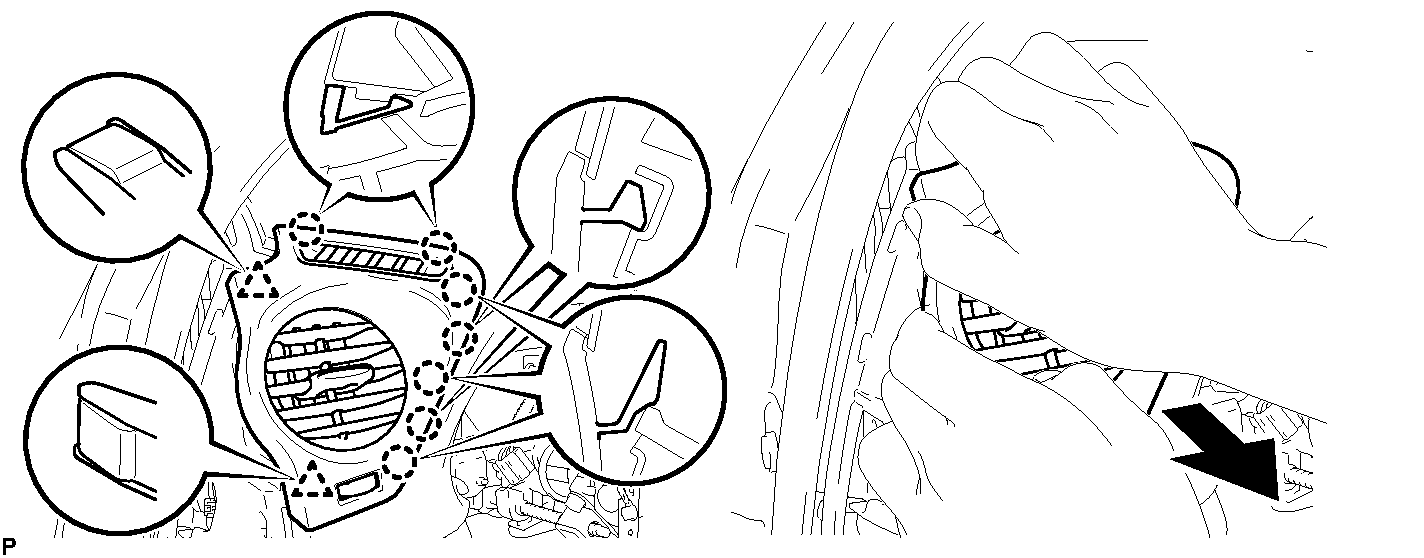

      Fig 34: Removing No. 1 Instrument Panel Register Assembly
      GTY126744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Pull the No. 2 instrument panel register assembly in the direction indicated by the arrow to disengage the 4 claws and 2 clips to disconnect the connector and remove the No. 2 instrument panel register assembly.

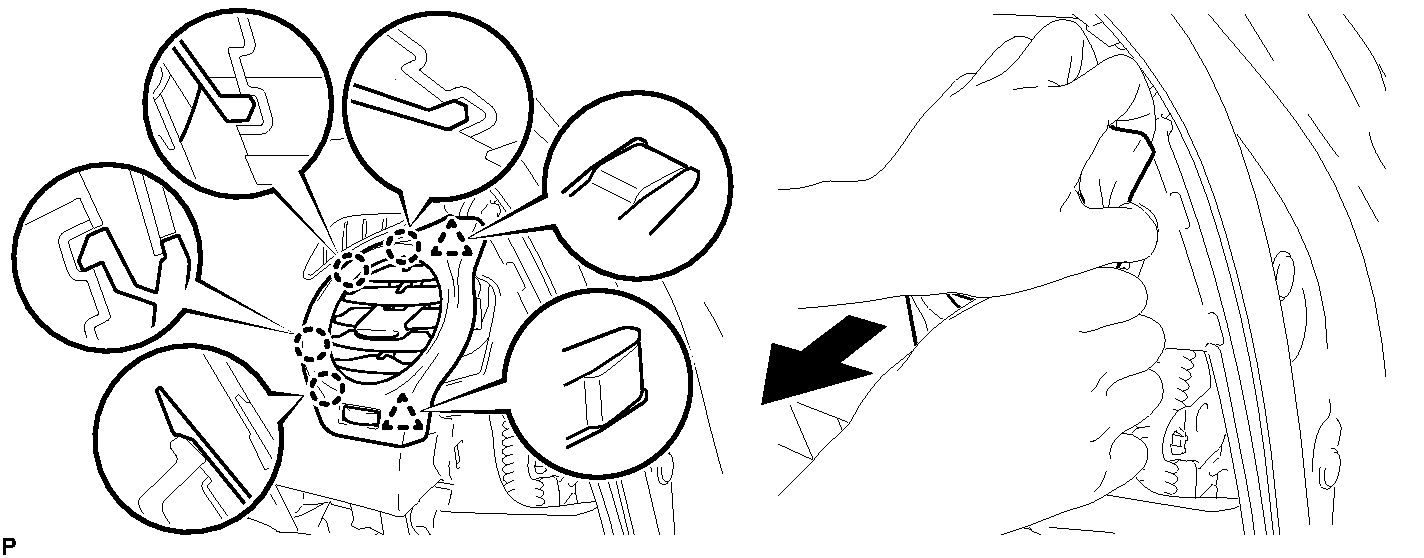

      Fig 35: Pulling No. 2 Instrument Panel Register Assembly
      GTY119120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 7 claws and 2 clips, and remove the No. 3 instrument panel speaker panel sub-assembly.

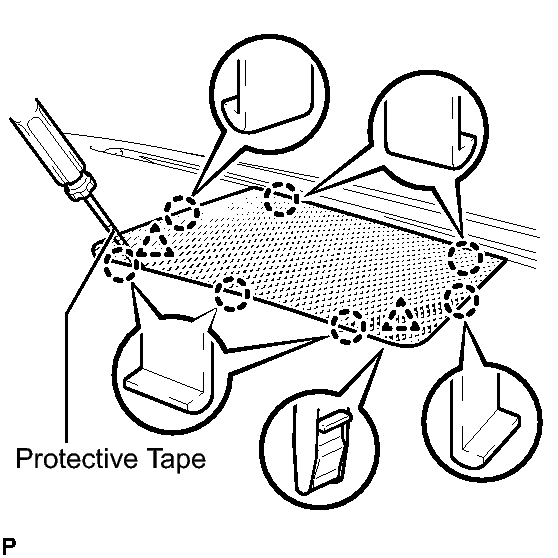

      Fig 36: Removing No. 3 Instrument Panel Speaker Panel Sub-Assembly
      GTY130810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  . Refer to REMOVAL - Step 2
  47. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Remove the 2 clips and No. 2 console box duct.
      Fig 37: Identifying No. 2 Console Box Duct Clips (For Automatic Transmission)
      GTY119121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Remove the clip and No. 1 console box duct.
      Fig 38: Identifying No. 1 Console Box Duct Clip (For Automatic Transmission)
      GTY119404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
    1. Remove the clip and No. 2 console box duct.

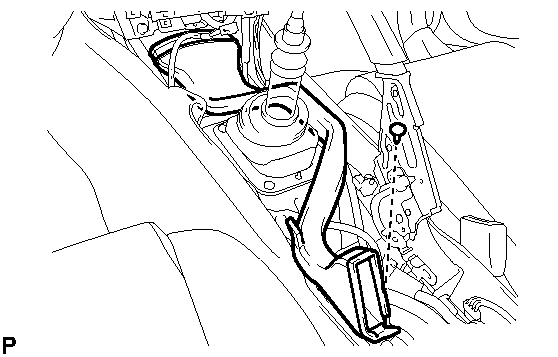

      Fig 39: Identifying No. 2 Console Box Duct Clip (For Manual Transmission)
      GTY143826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. DISCONNECT PASSENGER AIRBAG CONNECTOR  . Refer to REMOVAL - Step 10
  51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Disengage the clamps.
    2. Disconnect the connectors.
    3. Disengage the 2 claws and separate the cooler thermistor.

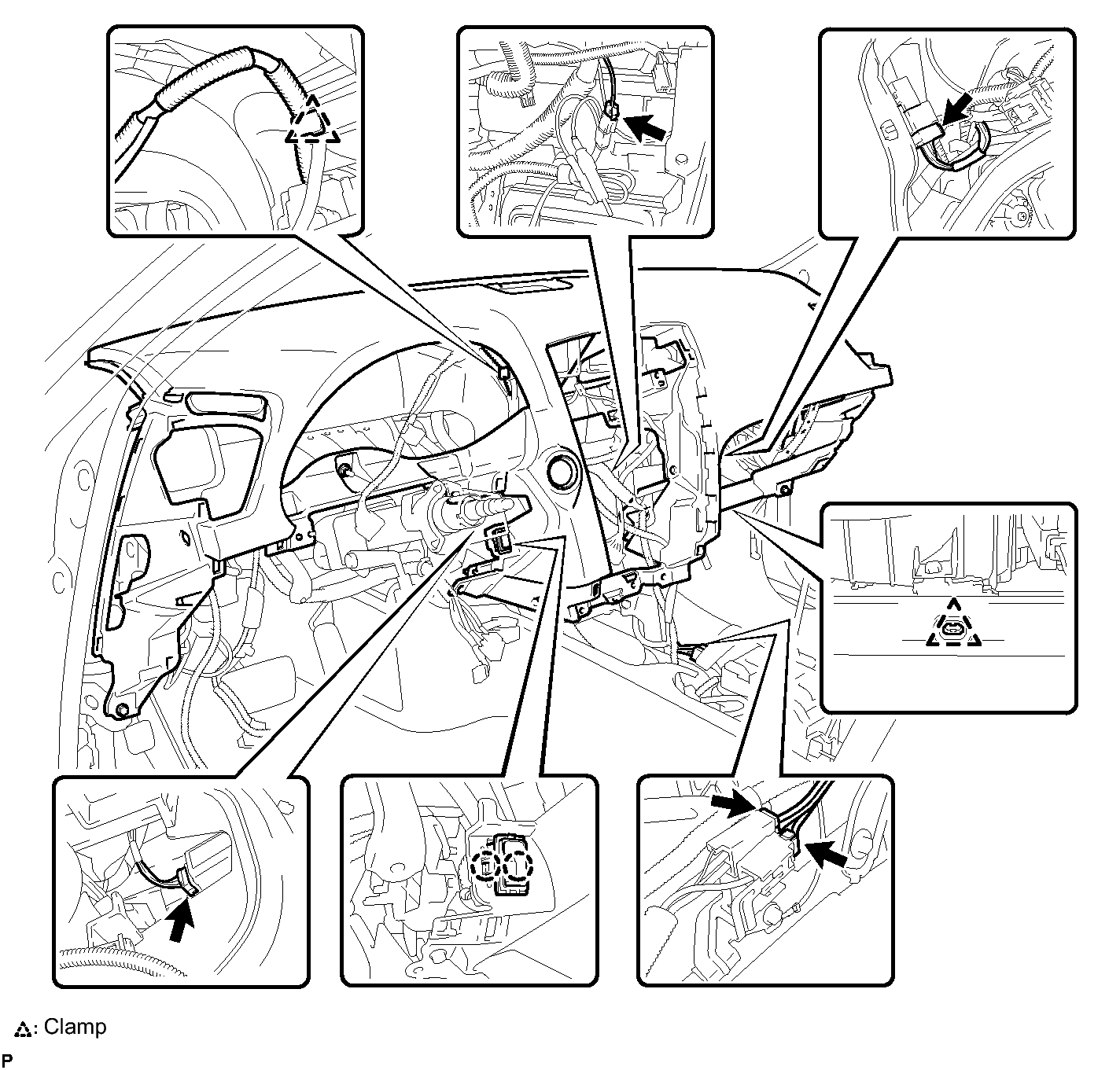

      Fig 40: Identifying Instrument Panel Safety Pad Assembly (1 Of 2)
      GTY121473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts <D> and nut <H>.
    5. Remove the 2 passenger airbag bolts <A> or <B>.
    6. Disengage the 2 clamps.
    7. Disengage the 5 claws and remove the instrument panel safety pad assembly.

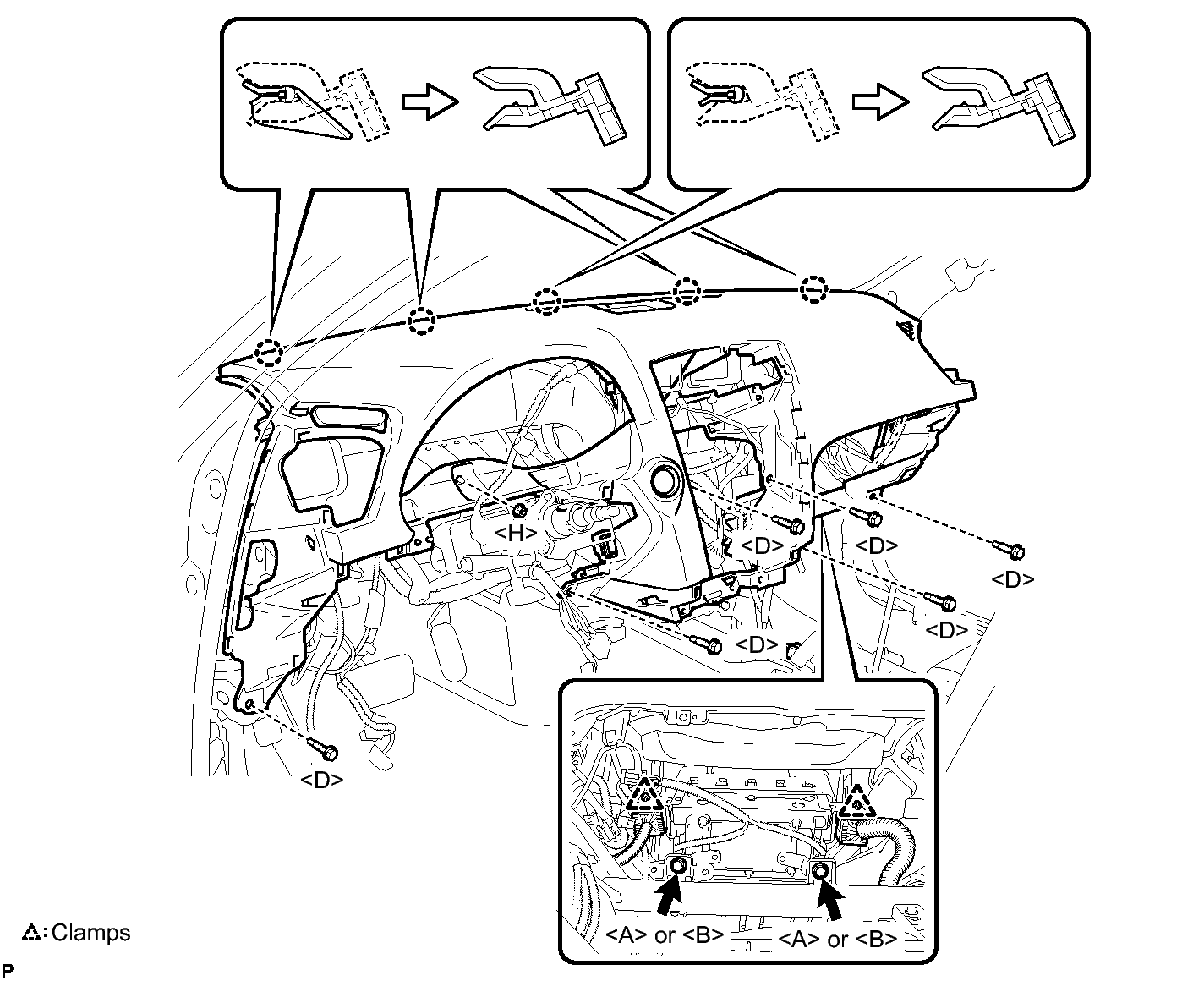

      Fig 41: Identifying Instrument Panel Safety Pad Assembly (2 Of 2)
      GTY119122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE INSTRUMENT PANEL CLIP
    1. Disengage the 4 claws to remove the 4 instrument panel clips.
      Fig 42: Identifying Instrument Panel Clips
      GTY136351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE INSTRUMENT PANEL STAY
    1. Disengage the claw to remove the instrument panel stay.
      Fig 43: Identifying Instrument Panel Stay Claw
      GTY136528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
