Headlight Dimmer Switch: Components: Illustration

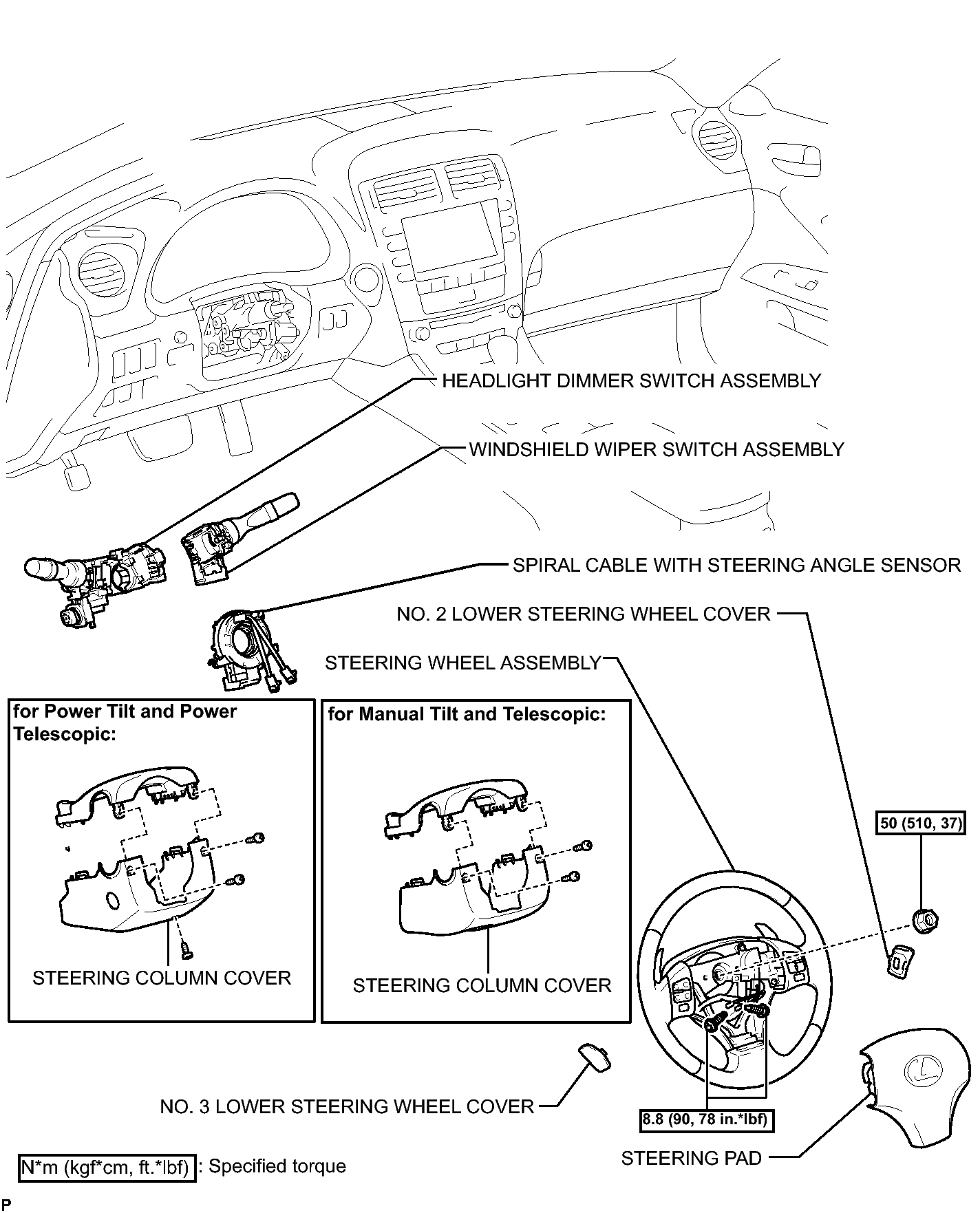

Fig 1: Identifying Headlight Dimmer Switch Replacement Components With Torque Specifications

GTY151192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
