DTC B2415: Vehicle Speed Sensor Malfunction: Procedure
- CHECK DTC (VEHICLE STABILITY CONTROL SYSTEM)
- Check that vehicle stability control system DTCs are not output. Refer to PRECAUTION
.
Result
Result Proceed to DTC is not output A DTC is output B
B → REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
A: Go to next step
- Check that vehicle stability control system DTCs are not output. Refer to PRECAUTION
.

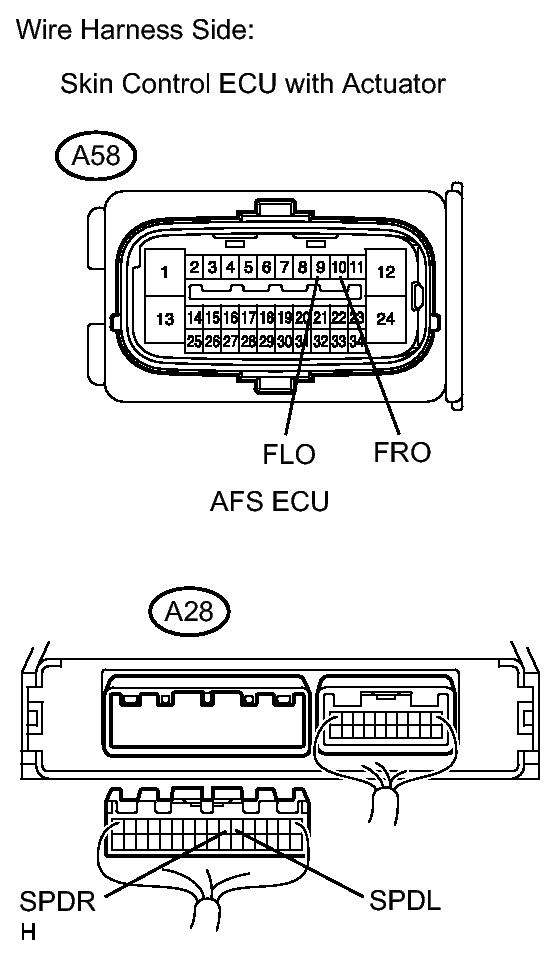

- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU WITH ACTUATOR - AFS ECU)
- Disconnect the A58 skid control ECU with actuator connector.
- Disconnect the A28 AFS ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition A58-10 (FRO) - A28-7 (SPDR) Always Below 1 Ω A58-9 (FLO) - A28-6 (SPDL) Always Below 1 Ω A28-7 (SPDR) - Body ground Always 10 kΩ or higher A28-6 (SPDL) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK AFS ECU
- Disconnect the A28 AFS ECU connector.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition Specified Voltage A28-6 (SPDL) - Body ground Vehicle is driving at approx. 30 km/h (19 mph) 0 to 5 V
Pulse generation
(see waveform 1)A28-7 (SPDR) - Body ground Vehicle is driving at approx. 30 km/h (19 mph) 0 to 5 V
Pulse generation
(see waveform 1)- Waveform 1: Oscilloscope wave
Item Contents Tool setting 2 V/DIV., 2 ms./ DIV. Vehicle condition Vehicle is driving at approximately 30 km/h (19 mph) OK
Waveform is output as shown in the illustration.
Result
Result Proceed to OK (When checking from DIAGNOSTIC TROUBLE CODE CHART) A OK (When checking from PROBLEM SYMPTOMS TABLE) B NG C
- Waveform 1: Oscilloscope wave
C → REPLACE BRAKE ACTUATOR ASSEMBLY
B → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A → REPLACE AFS ECU
