DTC B1297: Clearance Sonar ECU Communication Stop: Wiring Diagram

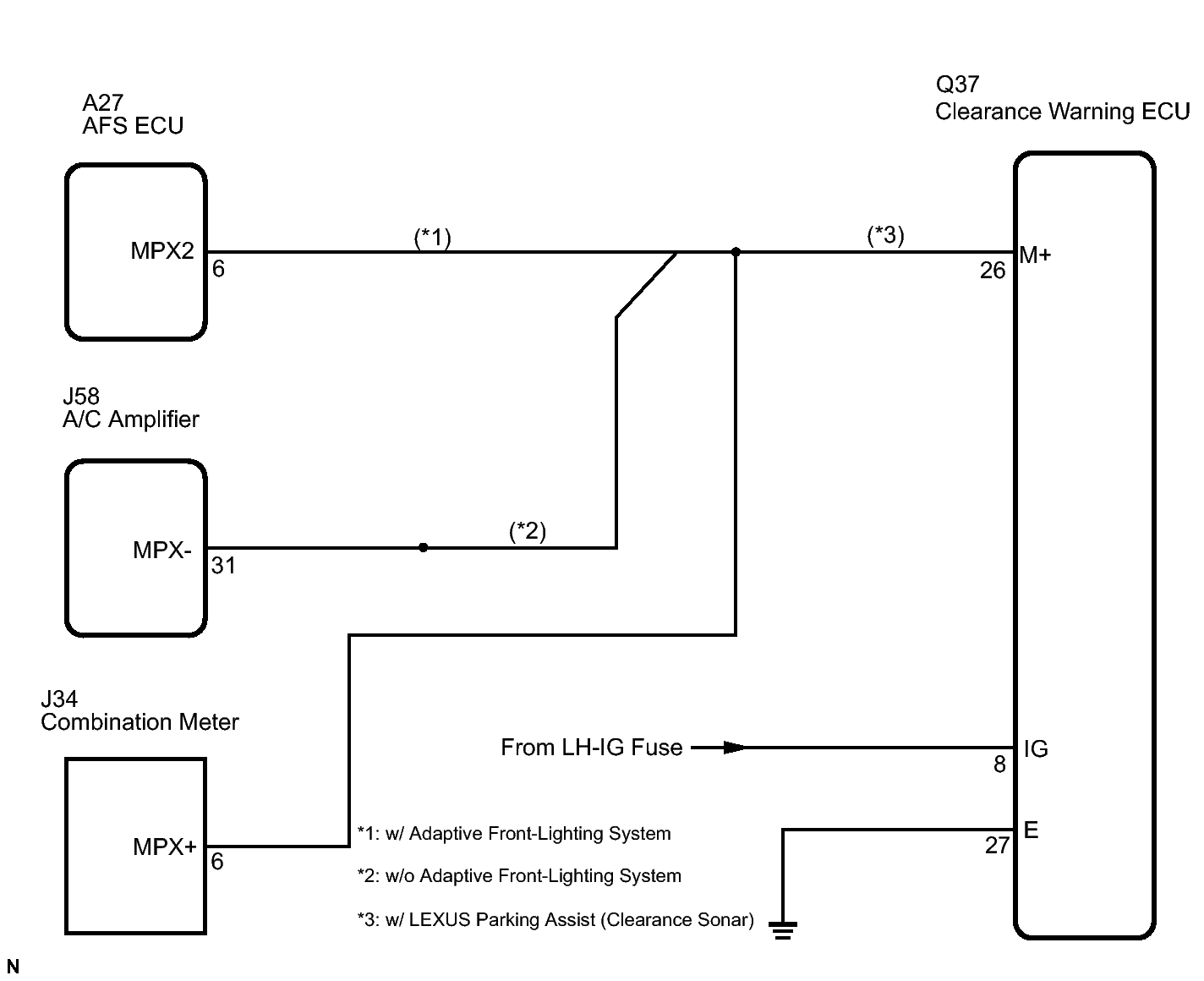

Fig 1: Identifying Clearance Sonar ECU Communication Wiring Diagram

GTY119659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
