DTC B1289: Passenger Seat ECU Communication Stop: Wiring Diagram

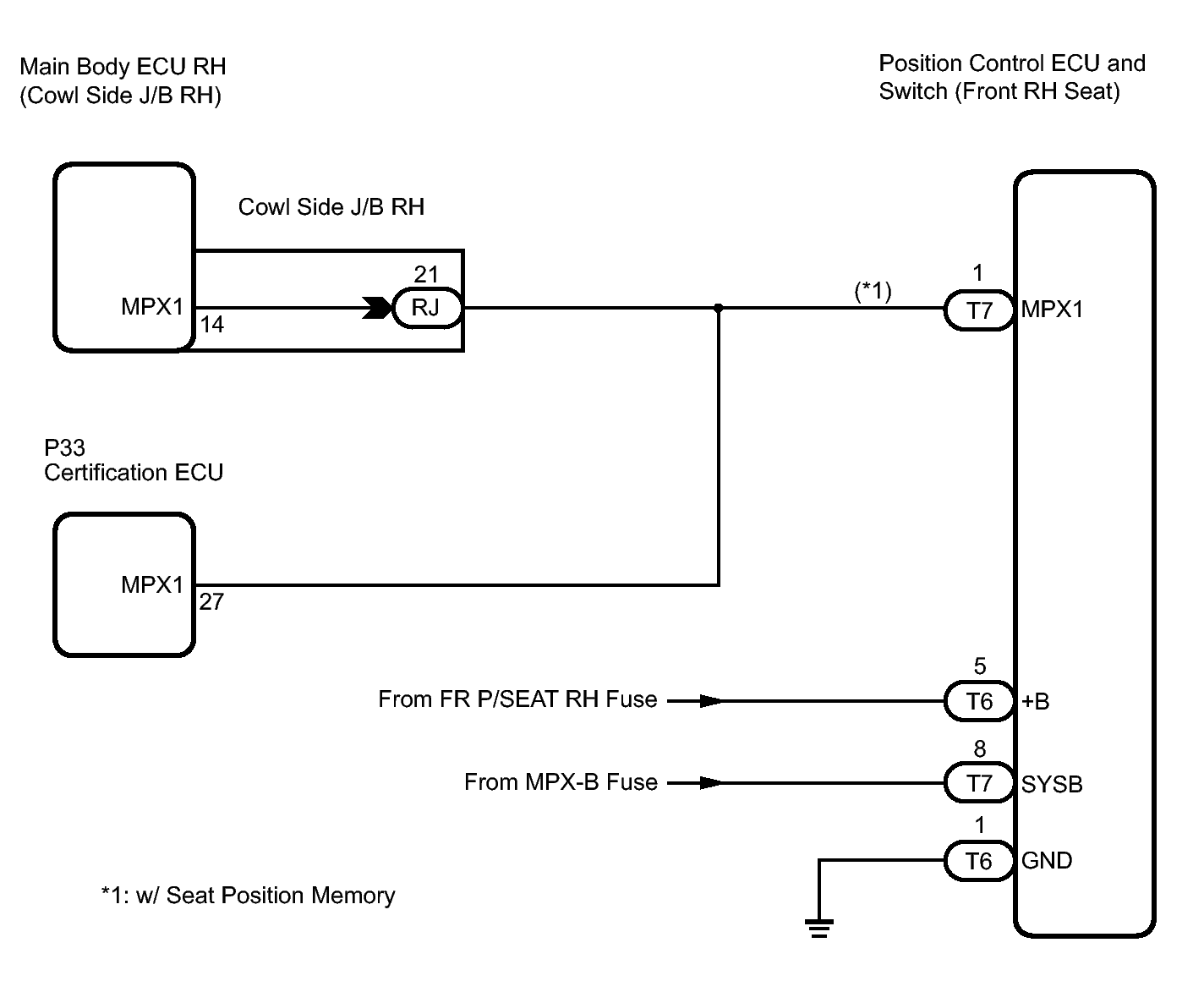

Fig 1: Identifying Position Control ECU And Switch (Passenger ECU)

GTY130715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
