DTC B1213: Tilt and Telescopic ECU Communication Stop: Wiring Diagram

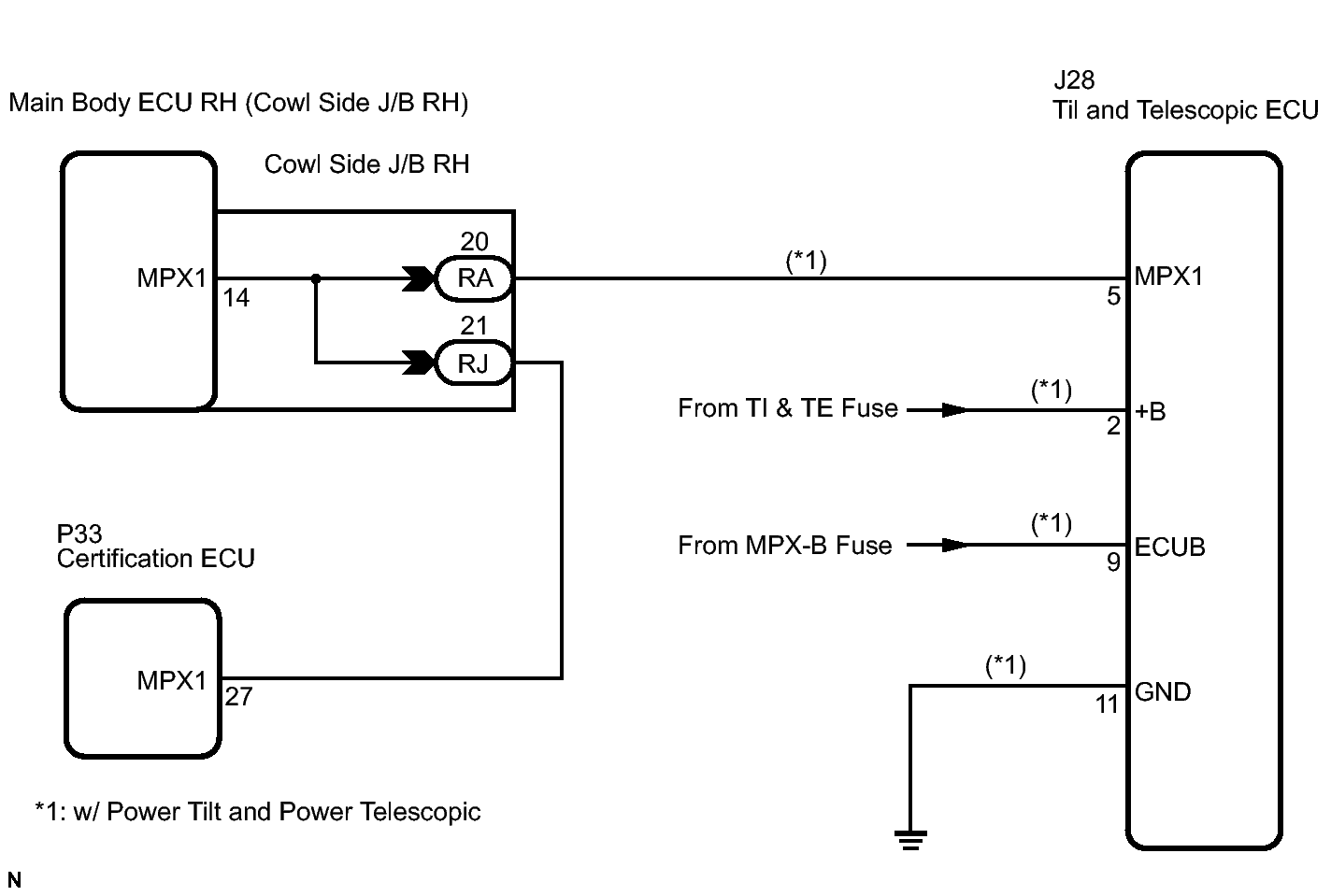

Fig 1: Identifying Tilt & Telescopic ECU Communication Wiring Diagram

GTY119759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
