DTC B1200: MPX Body ECU Stop: Wiring Diagram

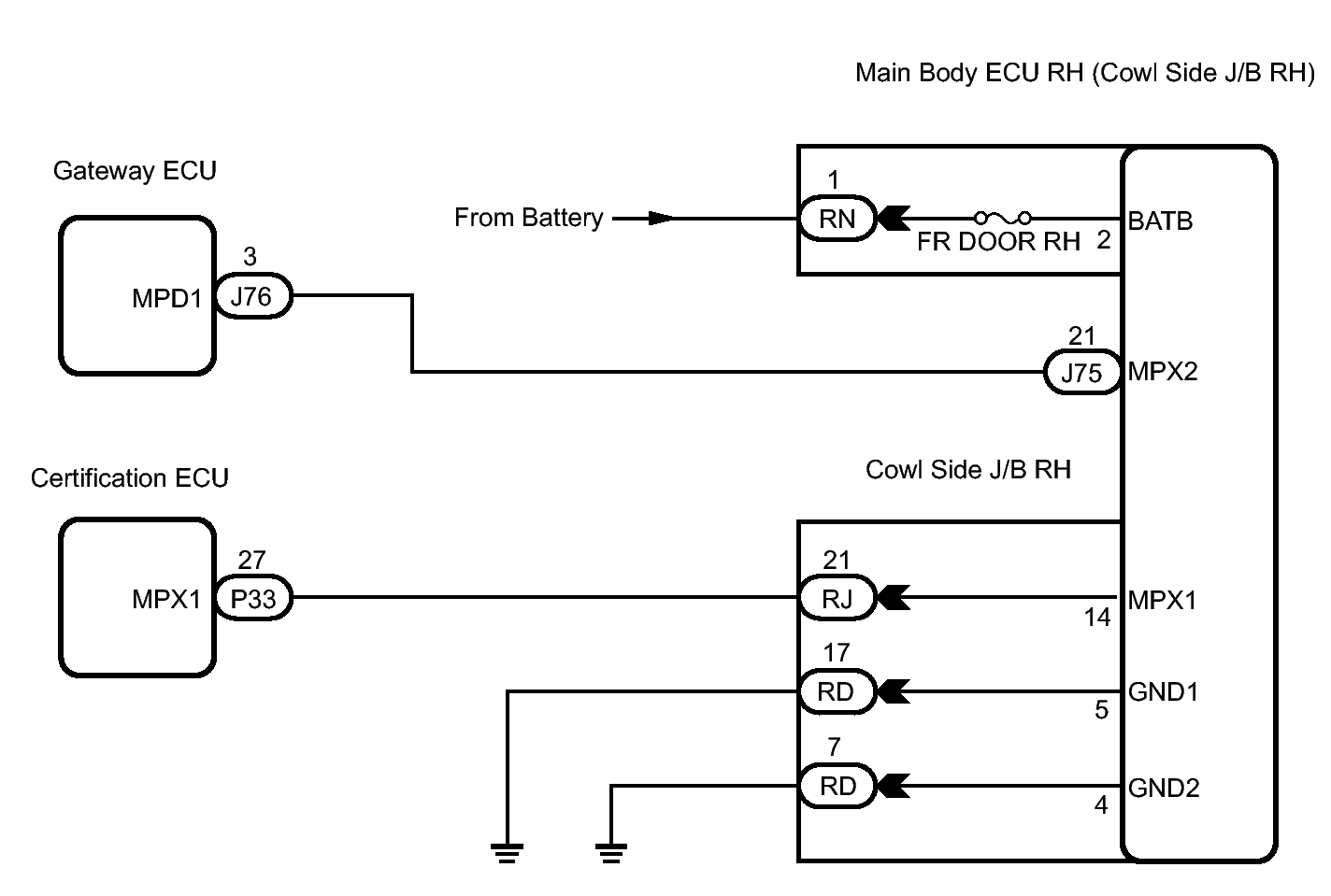

Fig 1: Main Body ECU RH (Cowl Side J/B RH)

GTY134529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
