Short to GND in CAN Bus Line: Wiring Diagram

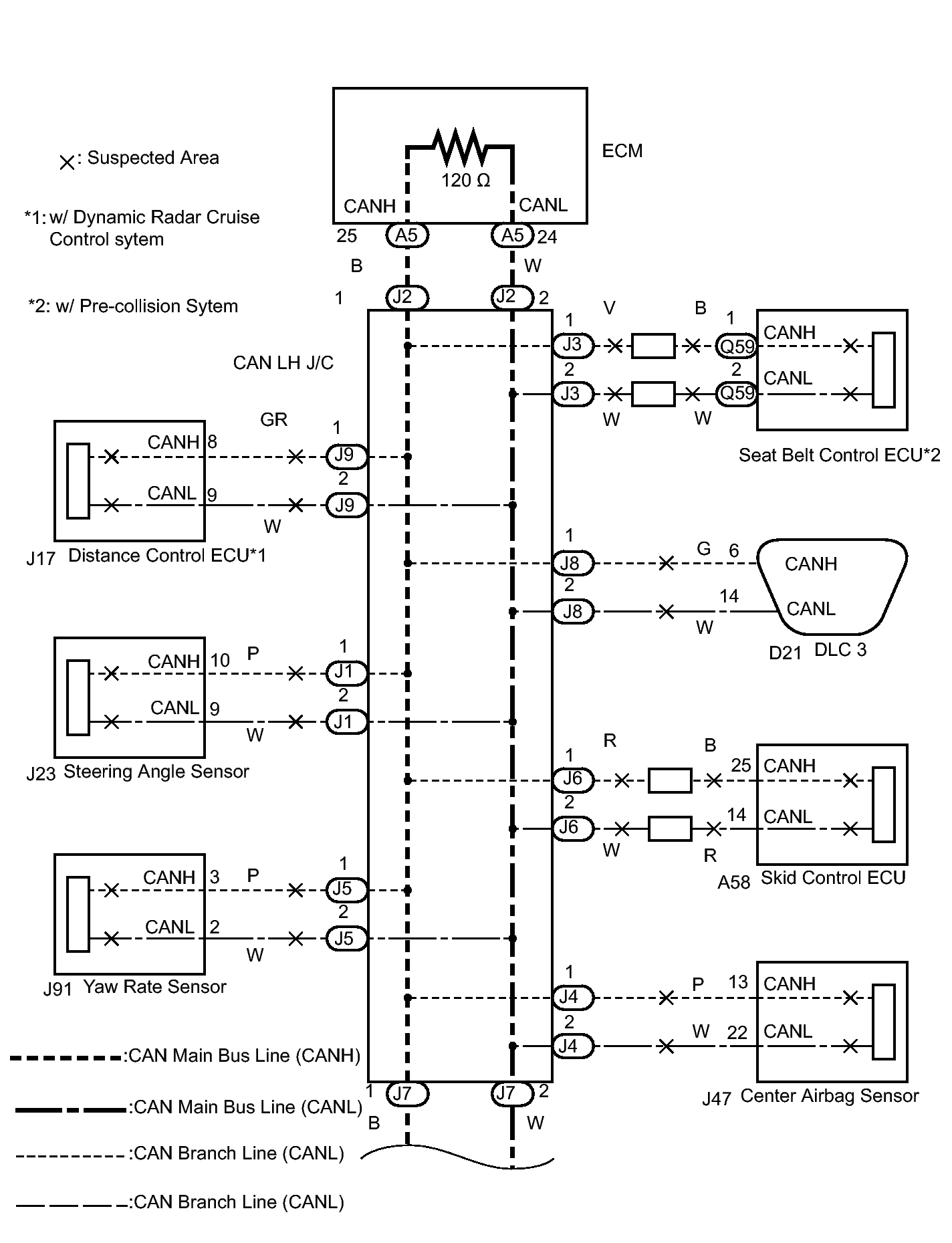

Fig 1: Identifying CAN Bus Line Wiring Diagram (1 Of 2)
GTY138162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

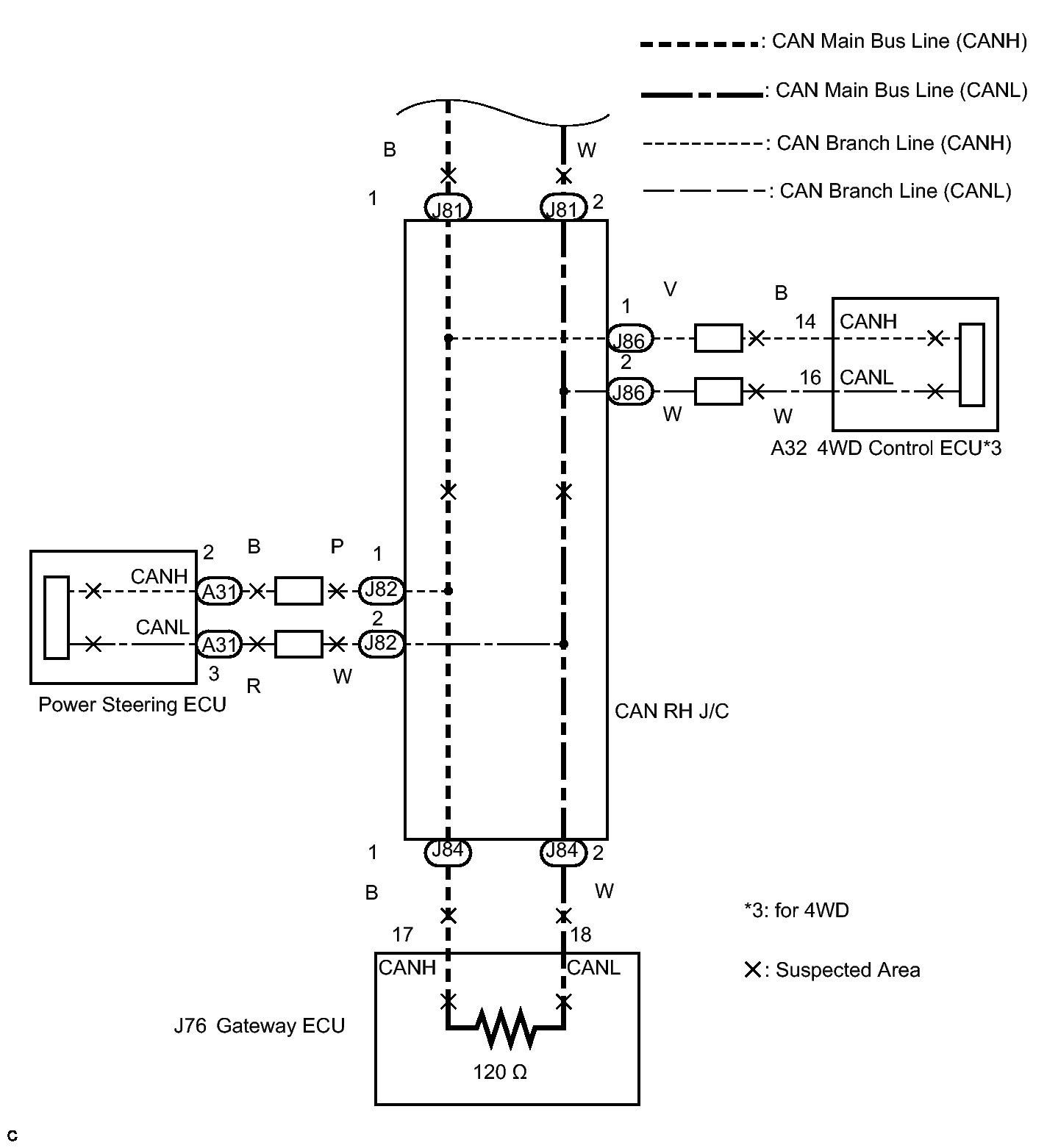

Fig 2: Identifying CAN Bus Line Wiring Diagram (2 Of 2)
GTY121381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
