DTC B2007: Open in Seat Belt Motor LH Circuit: Wiring Diagram

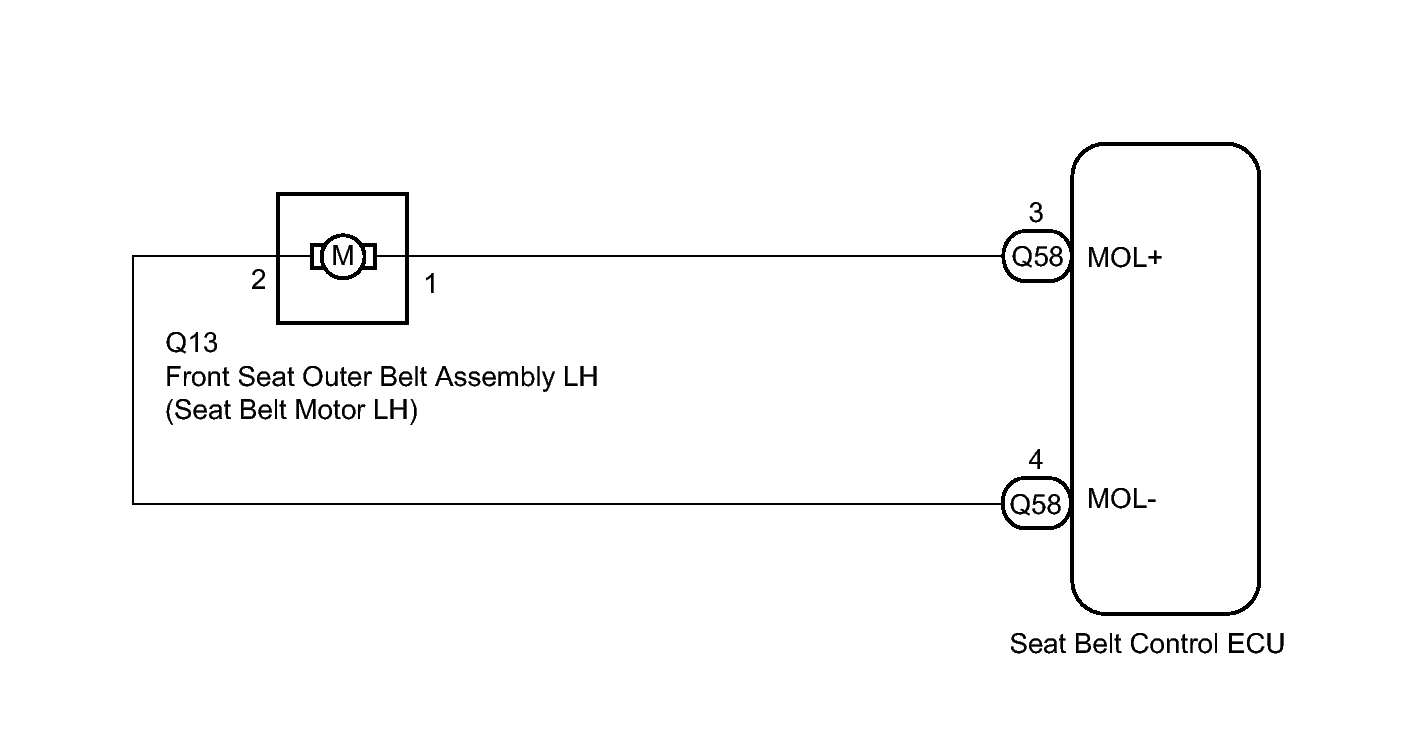

Fig 1: Identifying Seat Belt Control ECU Wiring Diagram

GTY138466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
