Clearance Warning Ecu: Components: Illustration

Fig 1: Identifying Clearance Warning ECU Replacement Components (1 Of 2)
GTY139714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

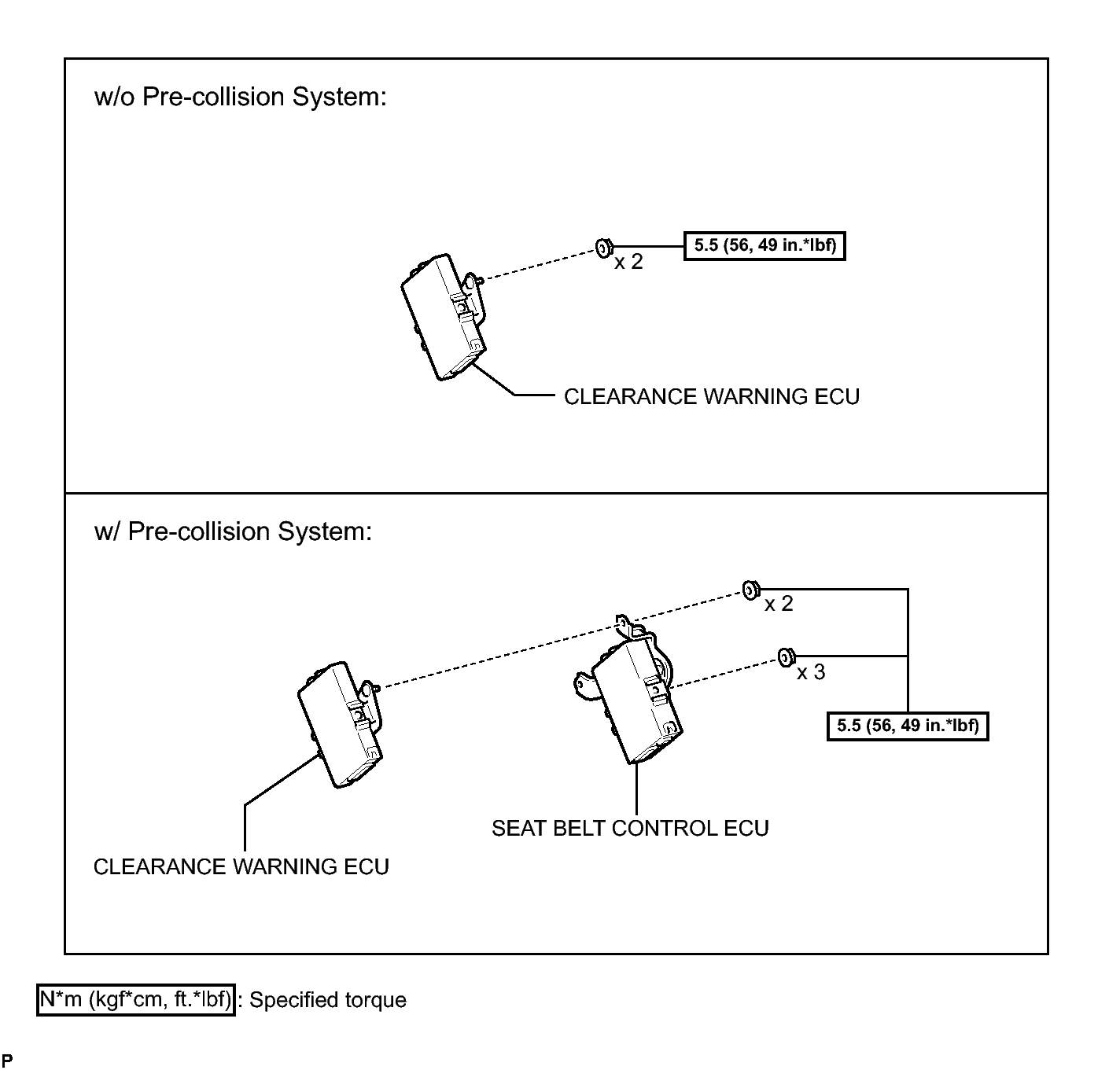

Fig 1: Identifying Clearance Warning ECU Replacement Components With Torque Specifications (2 Of 2)
GTY135534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
