Parts Location: Illustration

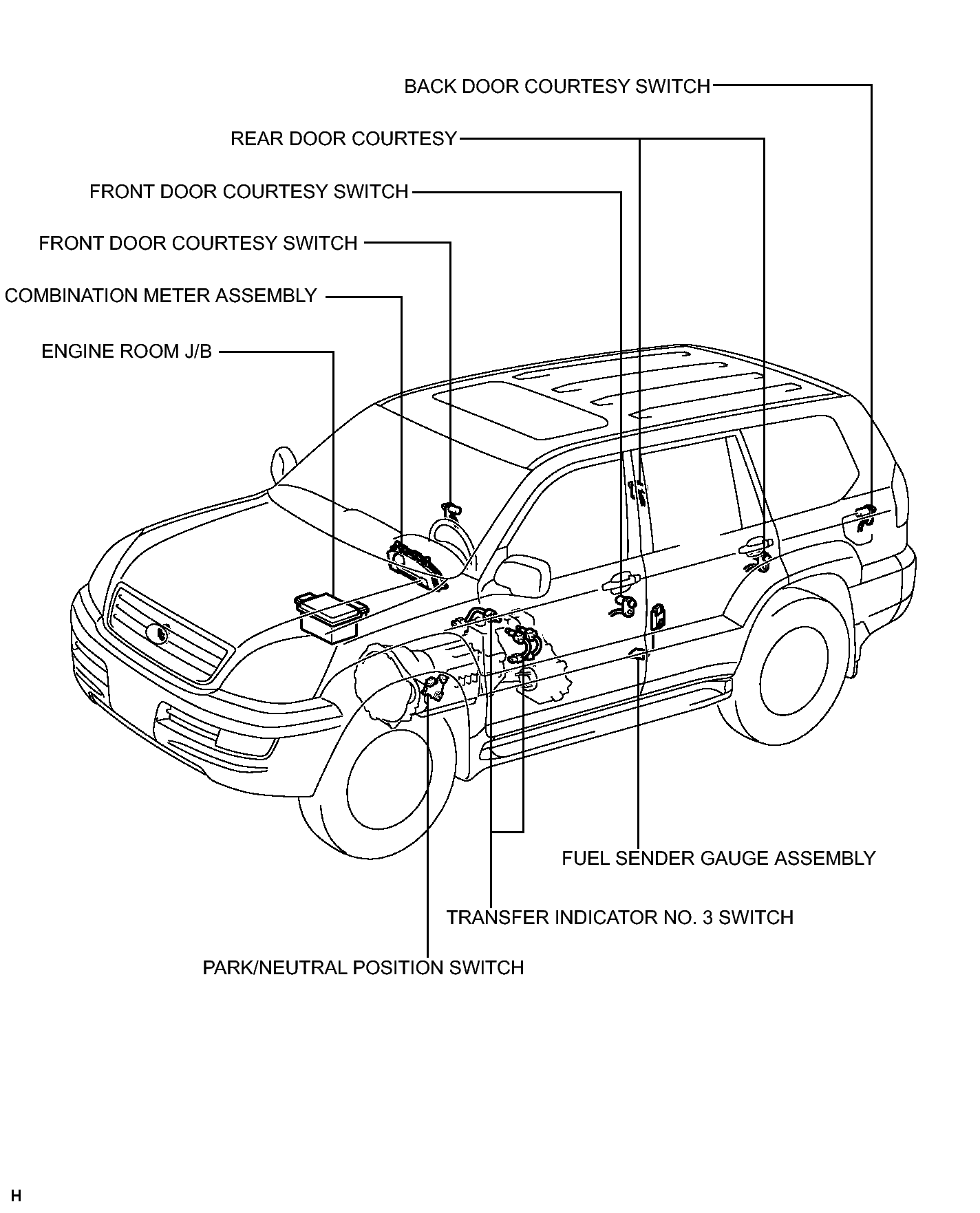

Fig 1: Identifying Meter/Gauge System Replacement Components (1 Of 2)
GTY137584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

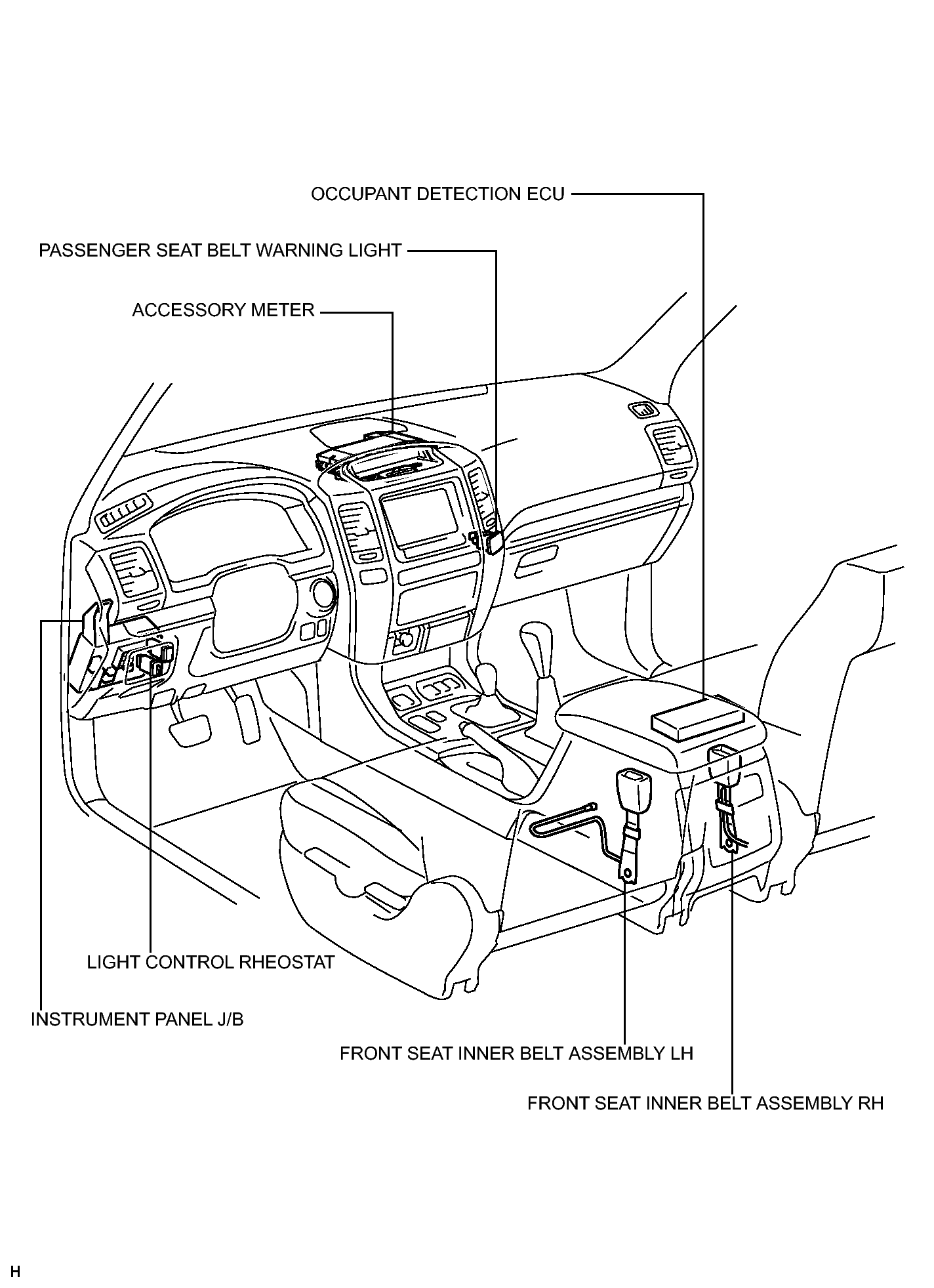

Fig 1: Identifying Meter/Gauge System Replacement Components (2 Of 2)
GTY150708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
