Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

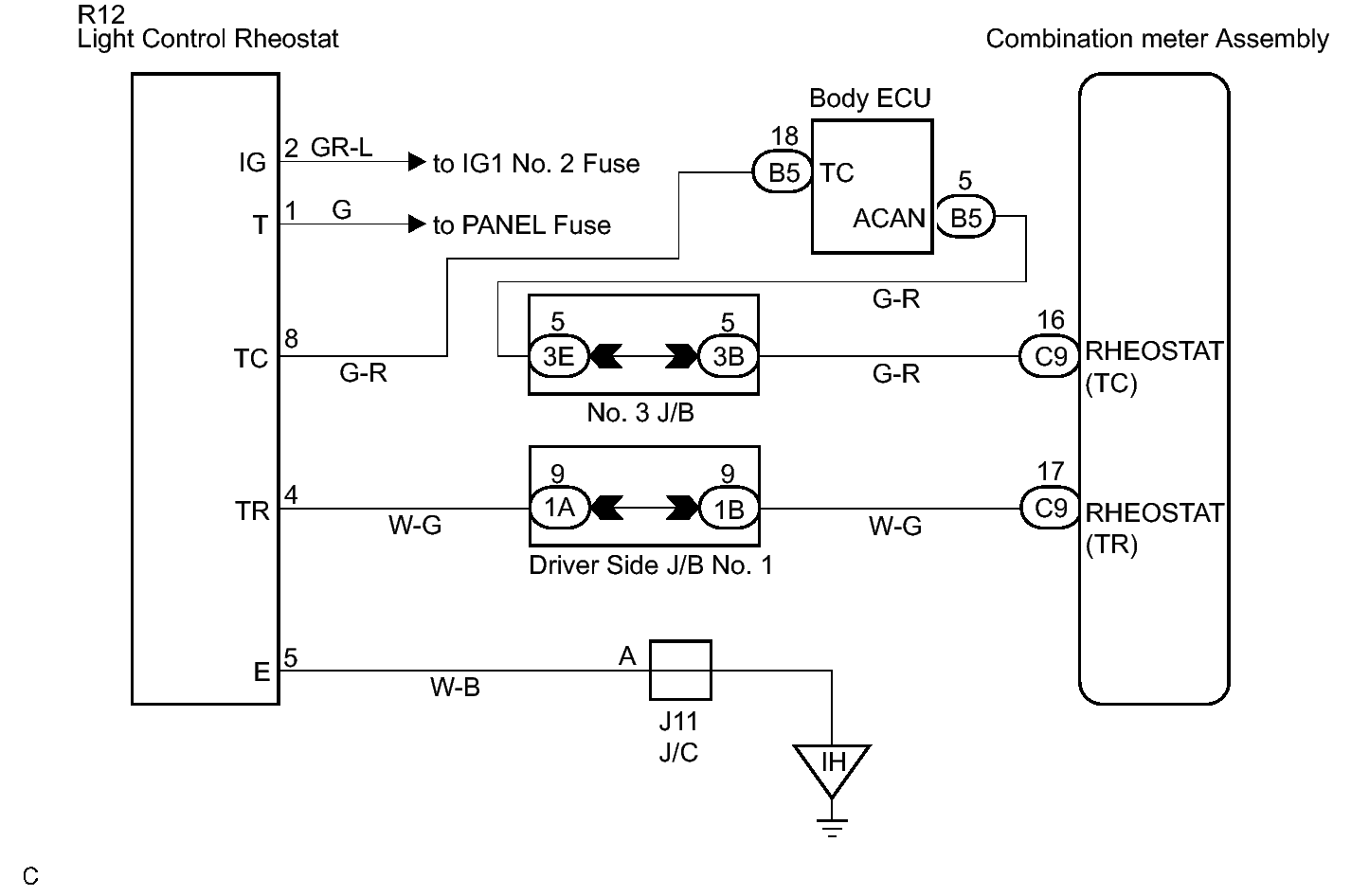

Fig 1: Light Control Rheostat - Wiring Diagram

GTY156063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
