Multi-Display Power Source Circuit: Wiring Diagram

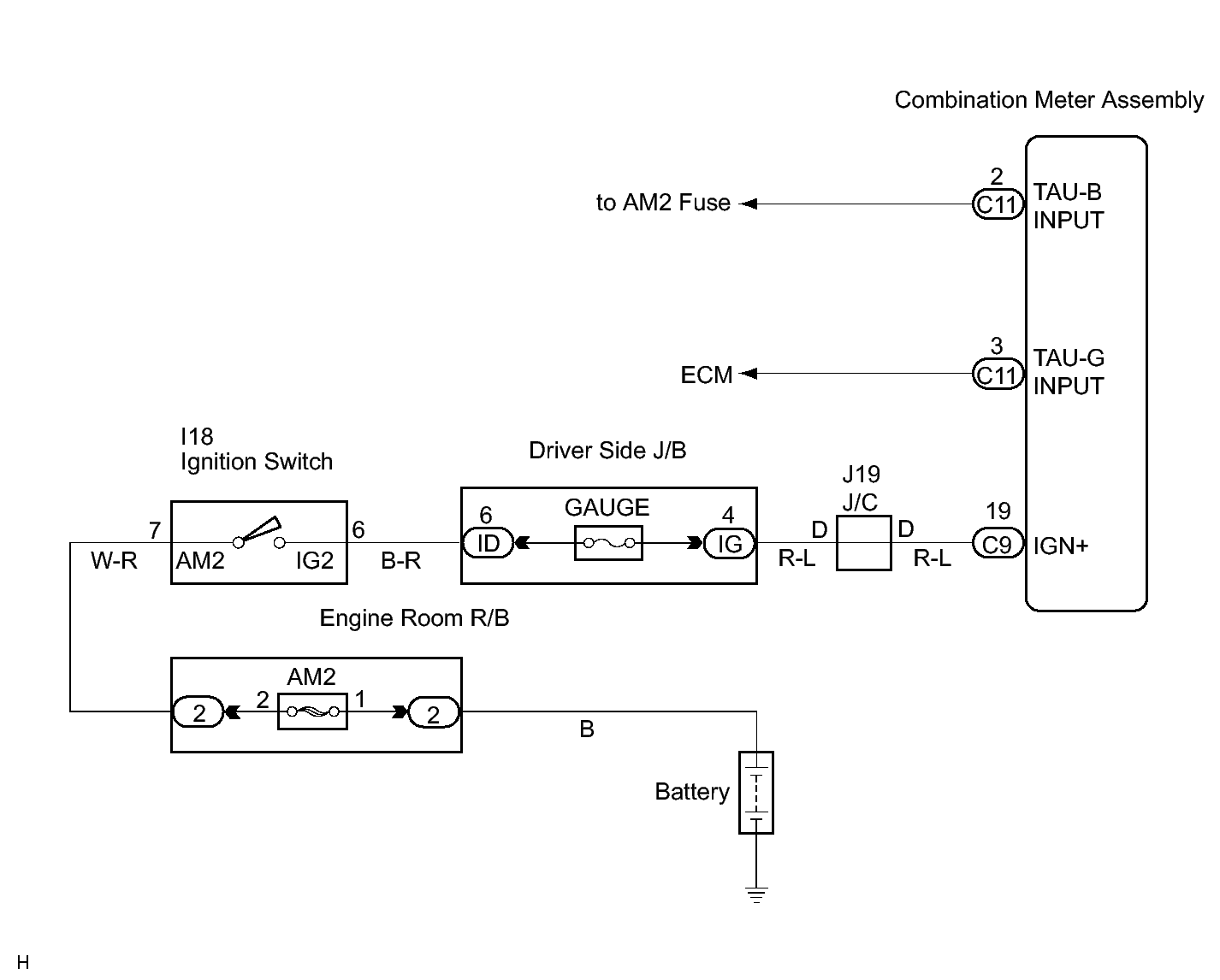

Fig 1: Multi-Display Power Source Circuit - Wiring Diagram

GTY156332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
