Multi-Display Power Source Circuit: Procedure

1. Remove the combination meter assembly.

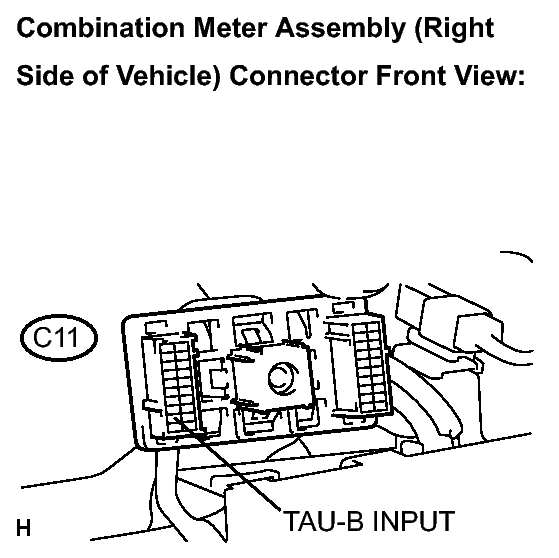

   Fig 1: Identifying C11 Combination Meter Assembly (TAU-B) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester connection	Condition	Specified condition
   C11-2 (TAU-B INPUT) - Body ground	Ignition switch ON	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the input signal waveform.

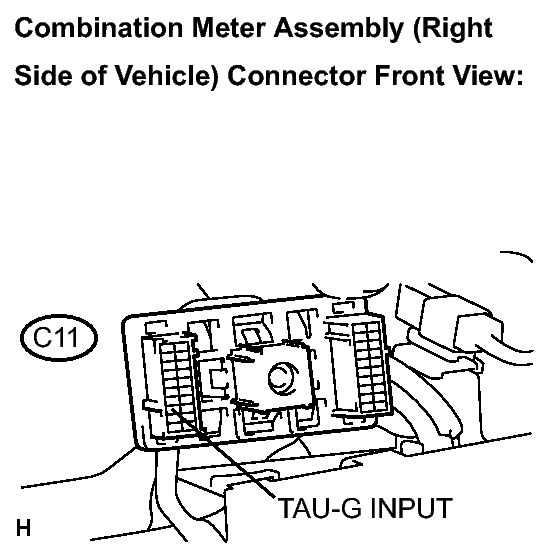

   Fig 2: Identifying C11 Combination Meter Assembly (TAU-G) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the combination meter assembly.
   2. Connect the oscilloscope to terminal C11-3 (TAU-G INPUT) and body ground.
   3. Start the engine.
   4. Check the signal waveform according to the condition(s) in the table below.
      Fig 3: Identifying Signal Waveform Graph

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM:



      Item	Condition
      Tool setting	10 V/DIV., 20 ms/DIV.
      Vehicle condition	Engine idle speed

      HINT:

      As the engine speed goes higher, the frequency becomes shorter.

NG → GO TO ENGINE CONTROL SYSTEM

OK → REPLACE COMBINATION METER ASSEMBLY
