Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

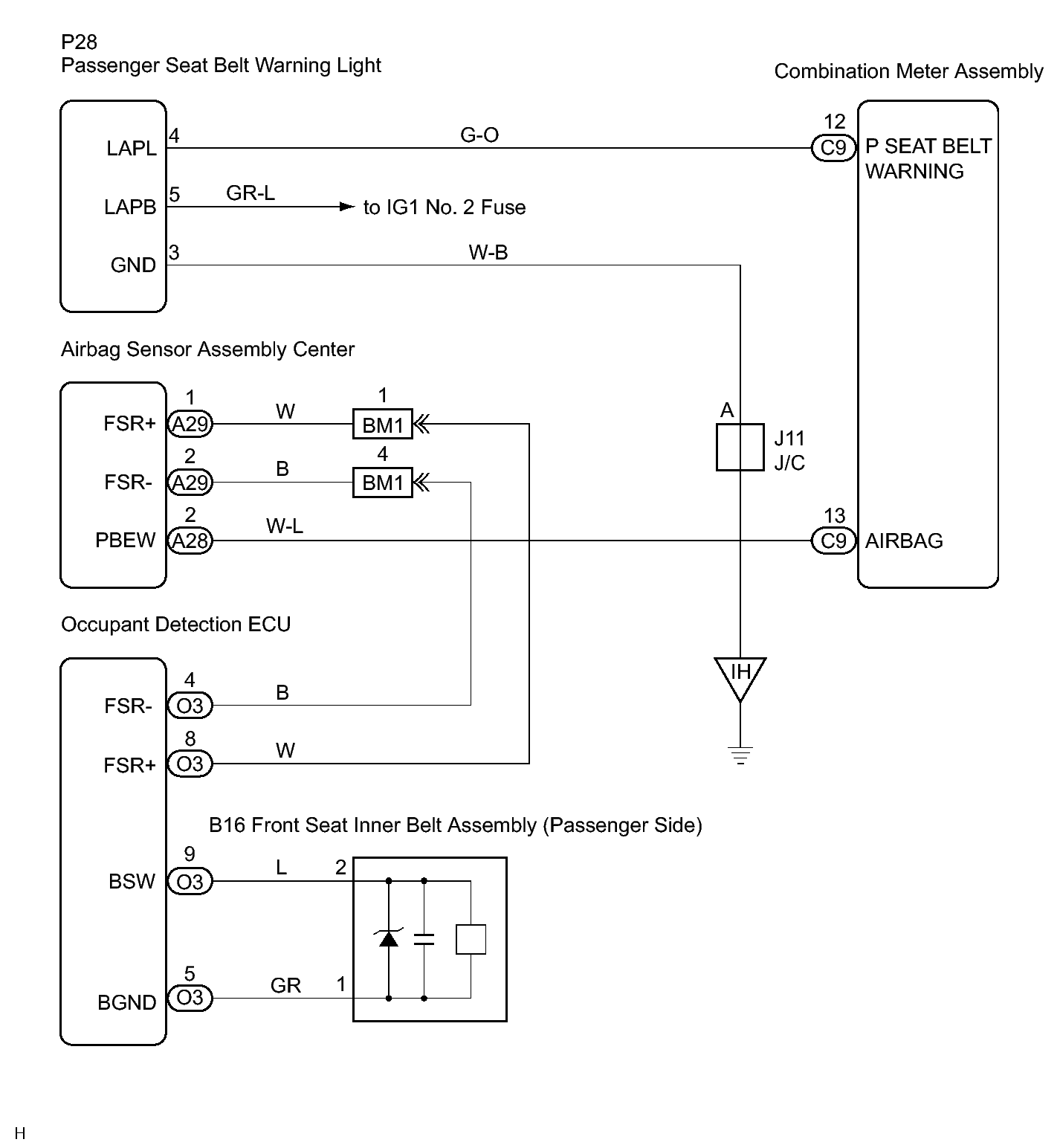

Fig 1: Front Passenger Side Seat Belt Warning Light - Wiring Diagram

GTY156331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
