Entire Combination Meter Does Not Operate: Wiring Diagram

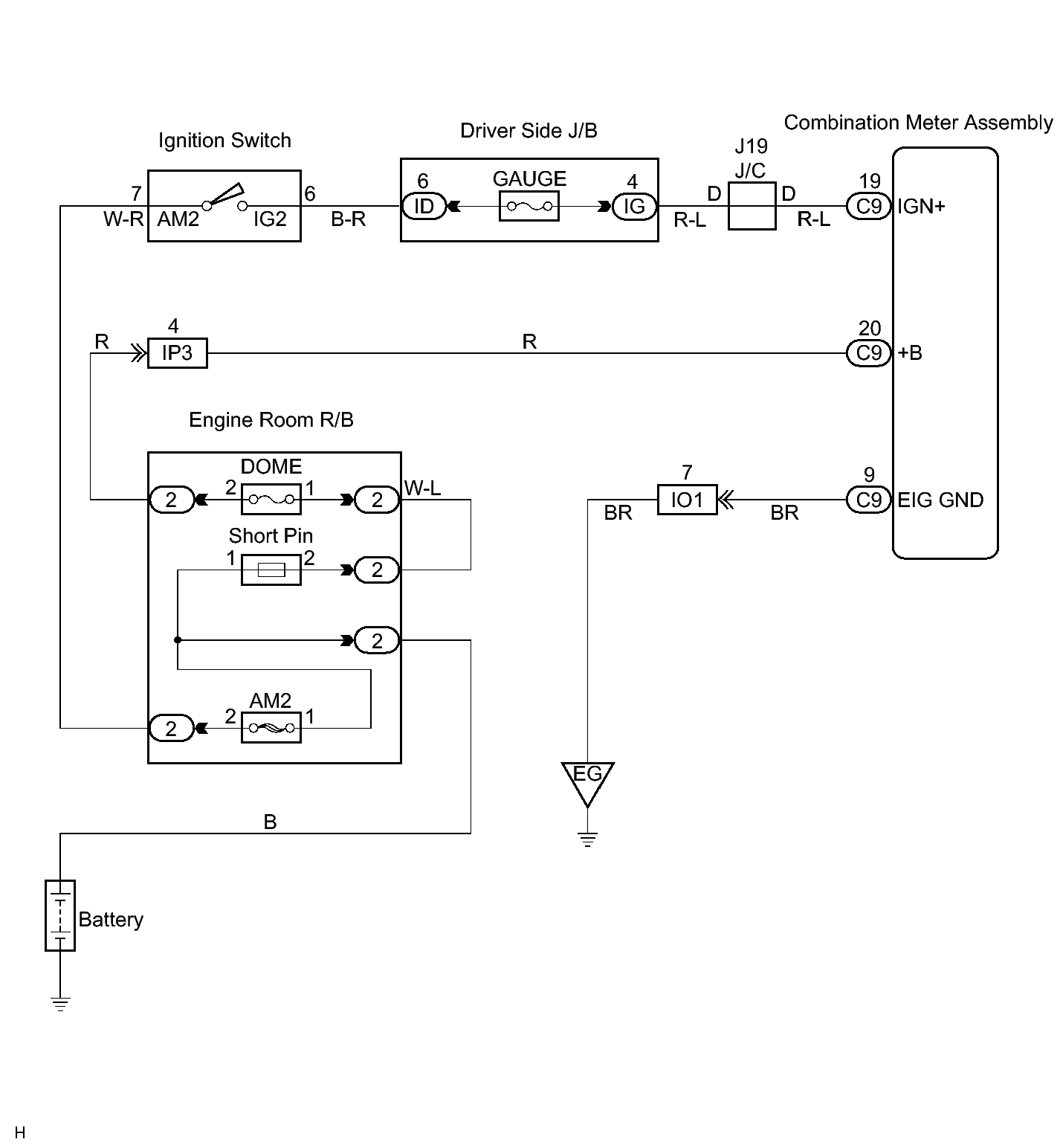

Fig 1: Combination Meter Power Source Circuit - Wiring Diagram
GTY156329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
