Driver Side Seat Belt Warning Light Does Not Operate: Procedure

1. Disconnect the C11 connector.

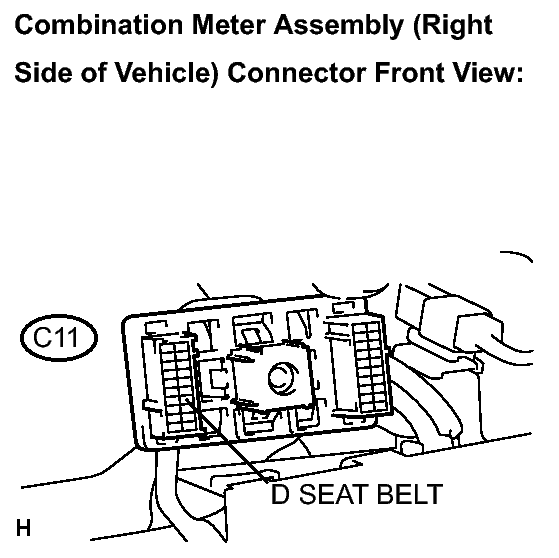

   Fig 1: Identifying C11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   C11-17 (D SEAT BELT) - Body ground	Seat belt is unfastened	Below 1 Ω
   C11-17 (D SEAT BELT) - Body ground	Seat belt is fastened	10 kΩ or higher

NG → See step   2

OK → REPLACE COMBINATION METER ASSEMBLY

1. Disconnect the B14 connector.
   Fig 2: Identifying B14 Front Seat Inner Belt Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   B14-3 - B14-4	Seat belt is unfastened	Below 1 Ω
   B14-3 - B14-4	Seat belt is fastened	10 kΩ or higher

NG → REPLACE FRONT SEAT INNER BELT ASSEMBLY LH

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR
