Home >> Lexus >> 2009 >> GX 470 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge (Diagnostics - Introduction) >> Meter / Gauge System >> Ambient Temperature Does Not Display >> Wiring Diagram

Ambient Temperature Does Not Display: Wiring Diagram

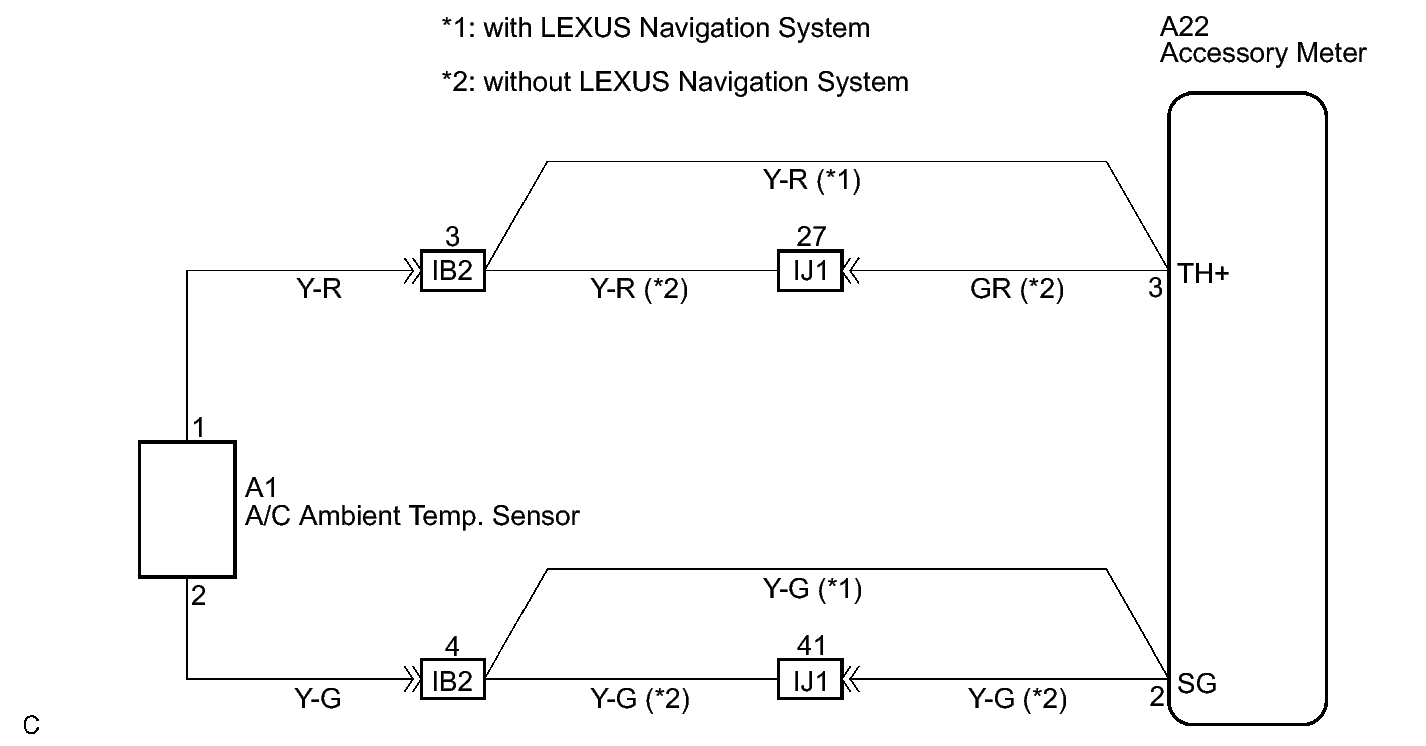

Fig 1: Ambient Temperature Sensor - Wiring Diagram

GTY156036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
