Combination Meter: Components: Illustration

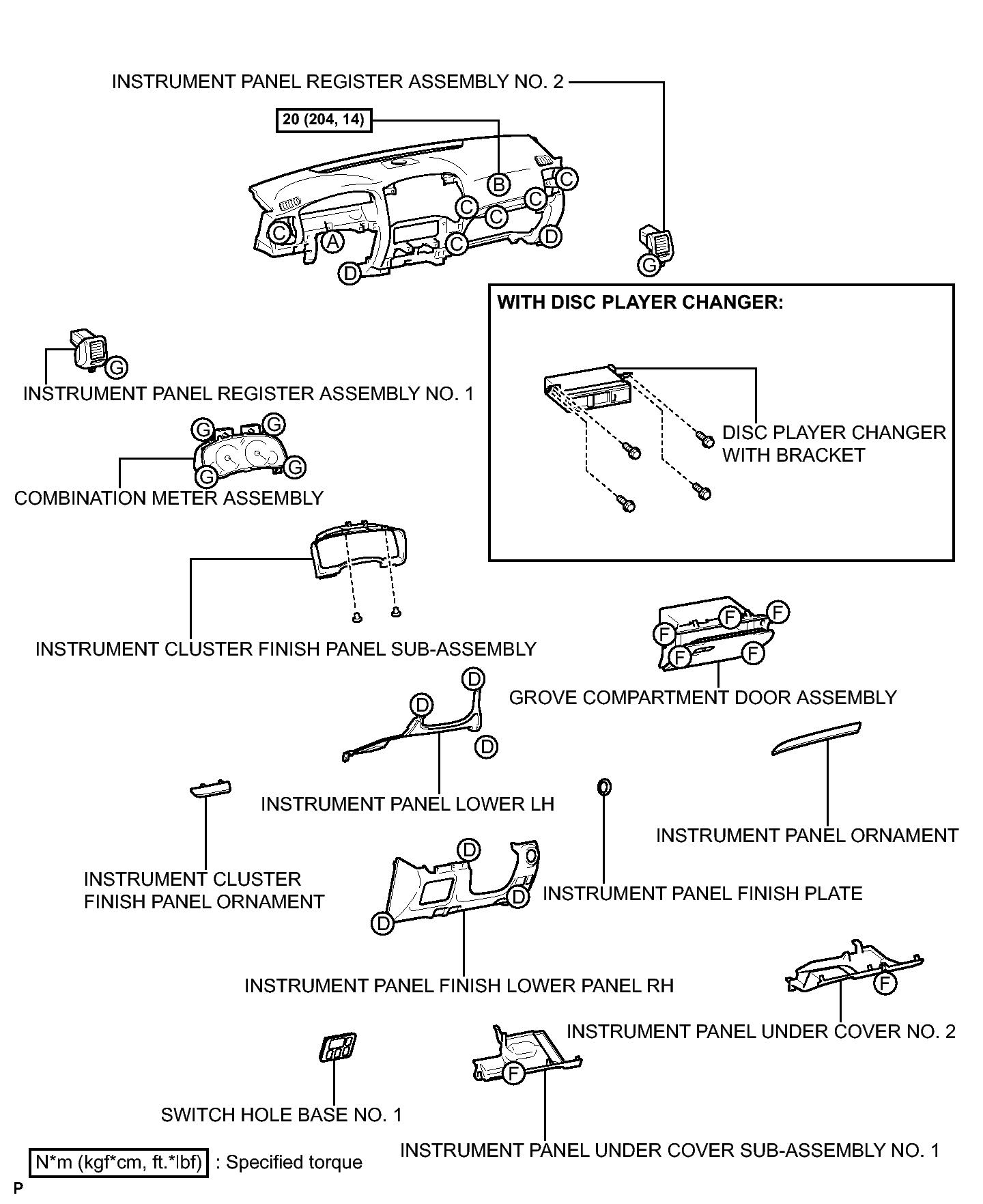

Fig 1: Identifying Combination Meter Replacement Components With Torque Specifications (1 Of 2)
GTY136235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Combination Meter Replacement Components (2 Of 2)
GTY143978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
