Accessory Meter: Components: Illustration

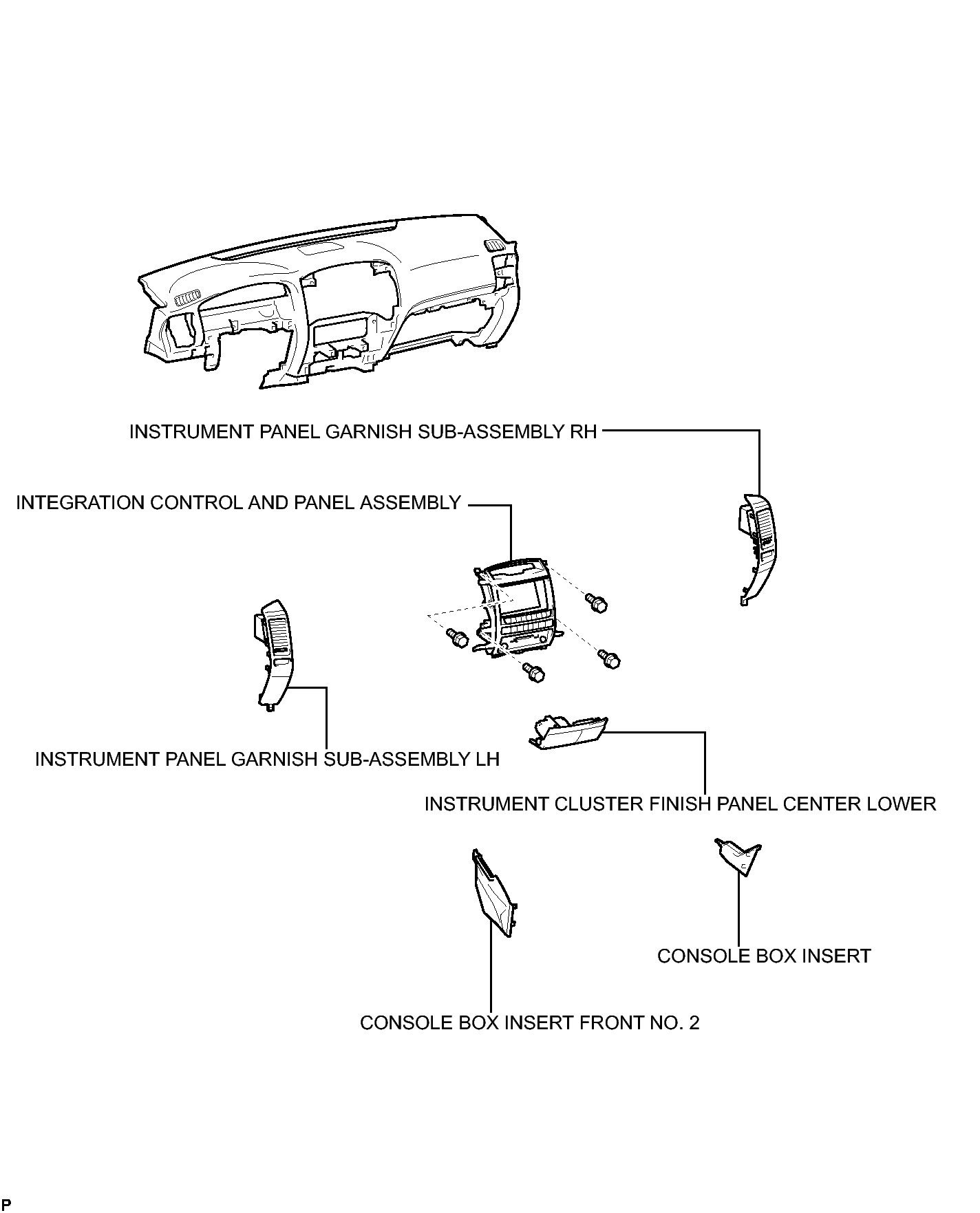

Fig 1: Identifying Accessory Meter Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

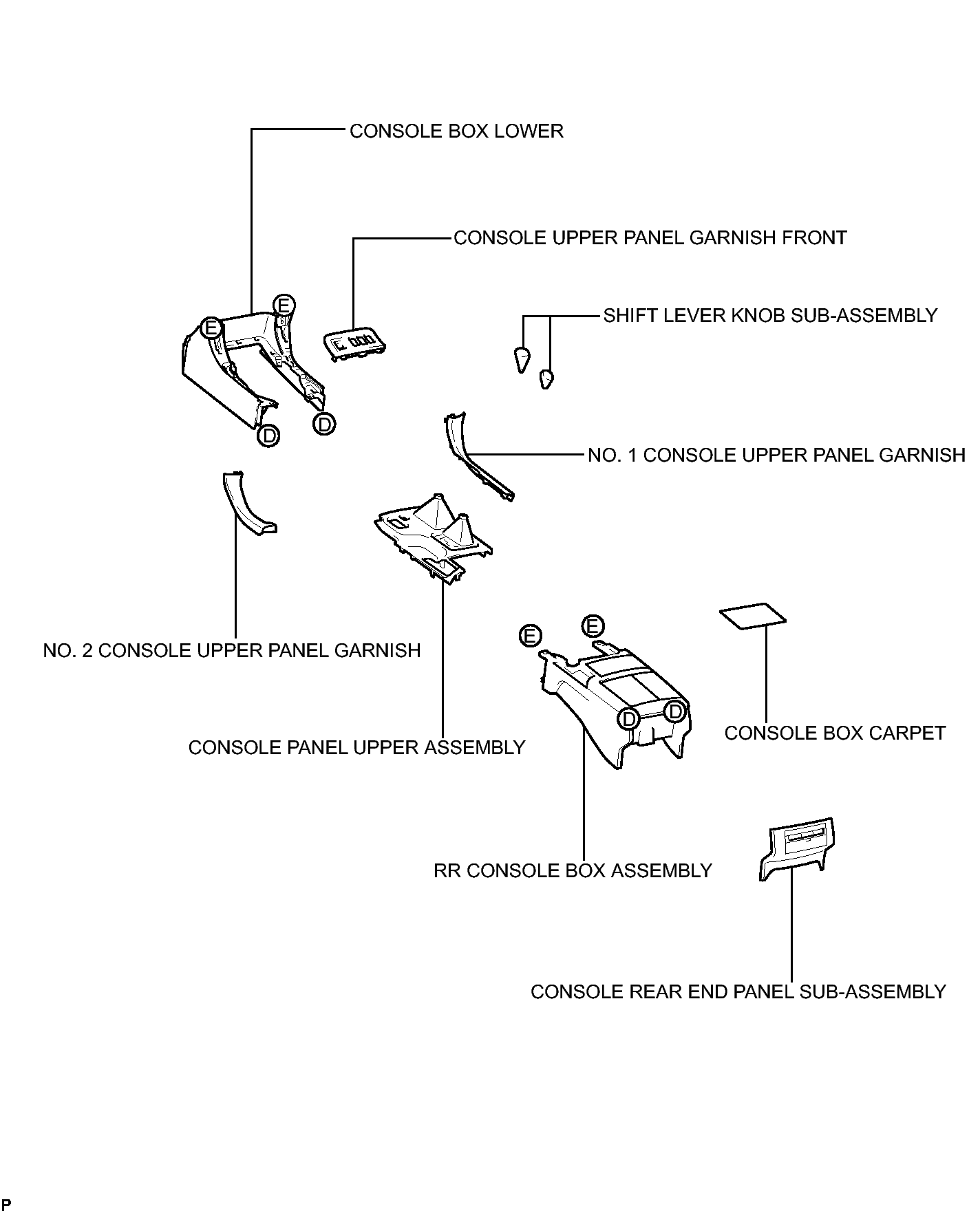

Fig 1: Identifying Accessory Meter Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

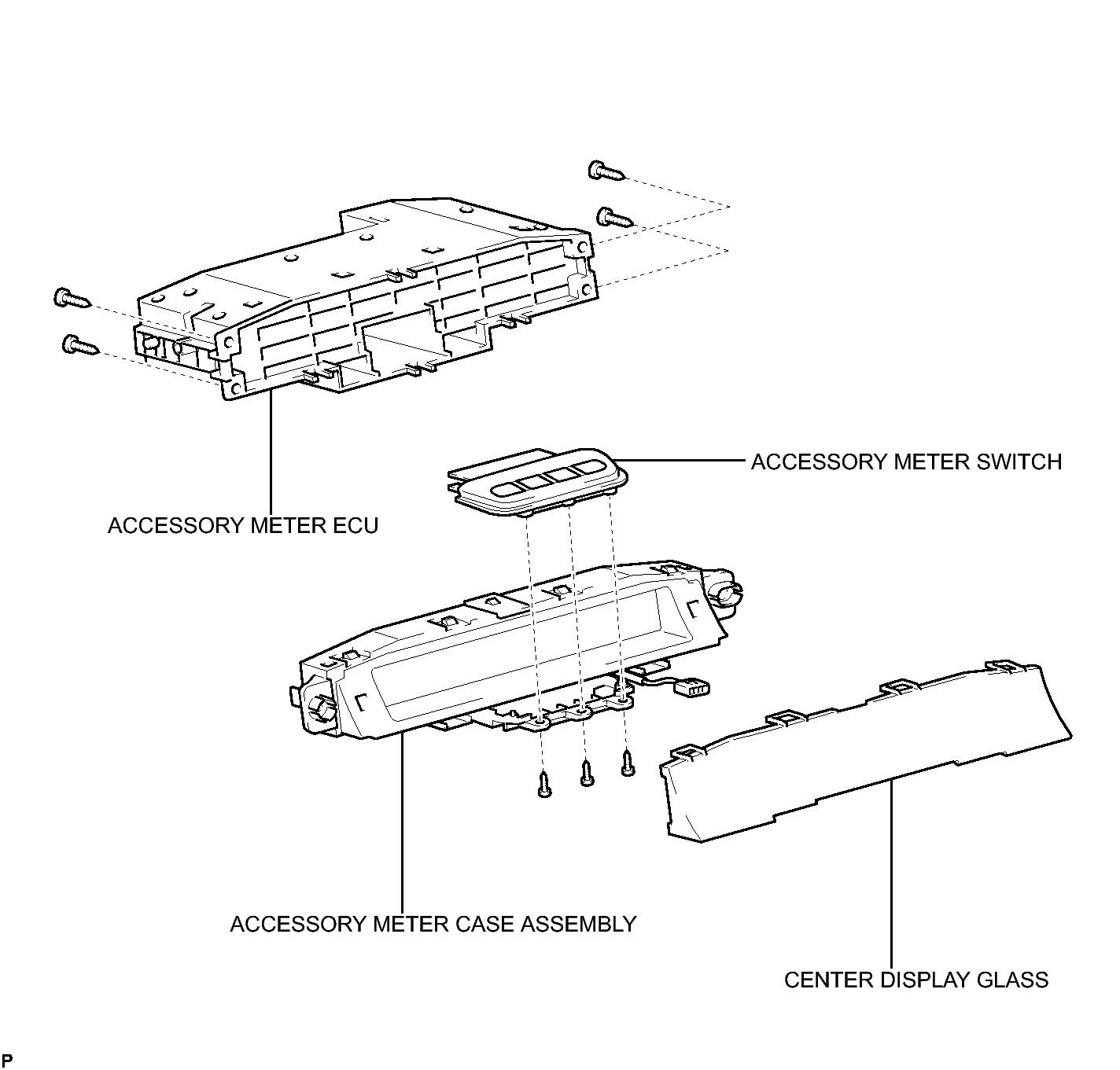

Fig 1: Identifying Accessory Meter Replacement Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
