DTC P3176-863: Transmission Oil Pump Motor Coil Temperature Sensor Circuit Low: Wiring Diagram

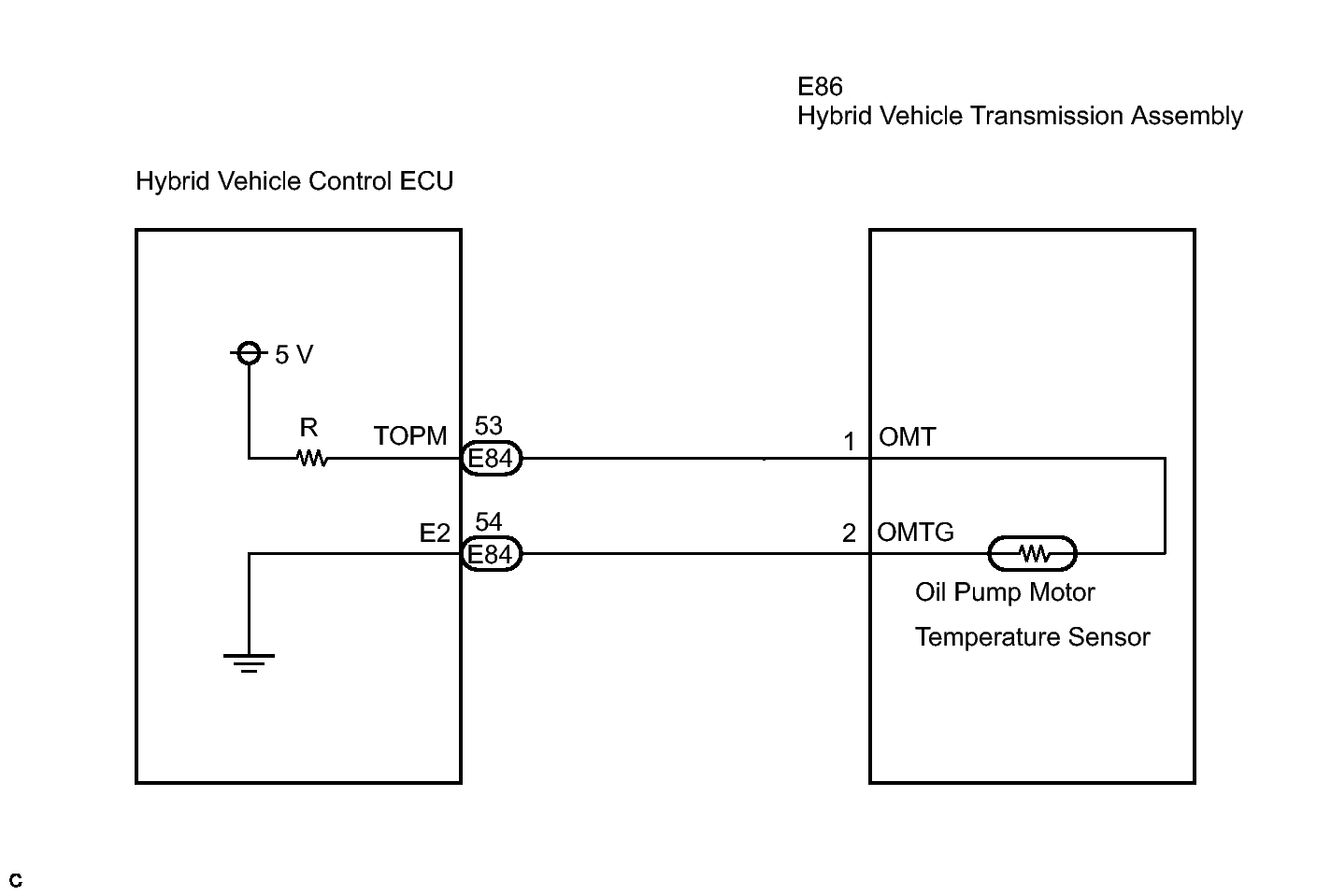

Fig 1: Hybrid Vehicle Control ECU To Hybrid Vehicle Transmission Assembly - Wiring Diagram
GTY130275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
