DTC P3110-139: IGCT Relay Malfunction; DTC P3110-223: IGCT Relay Malfunction: Wiring Diagram

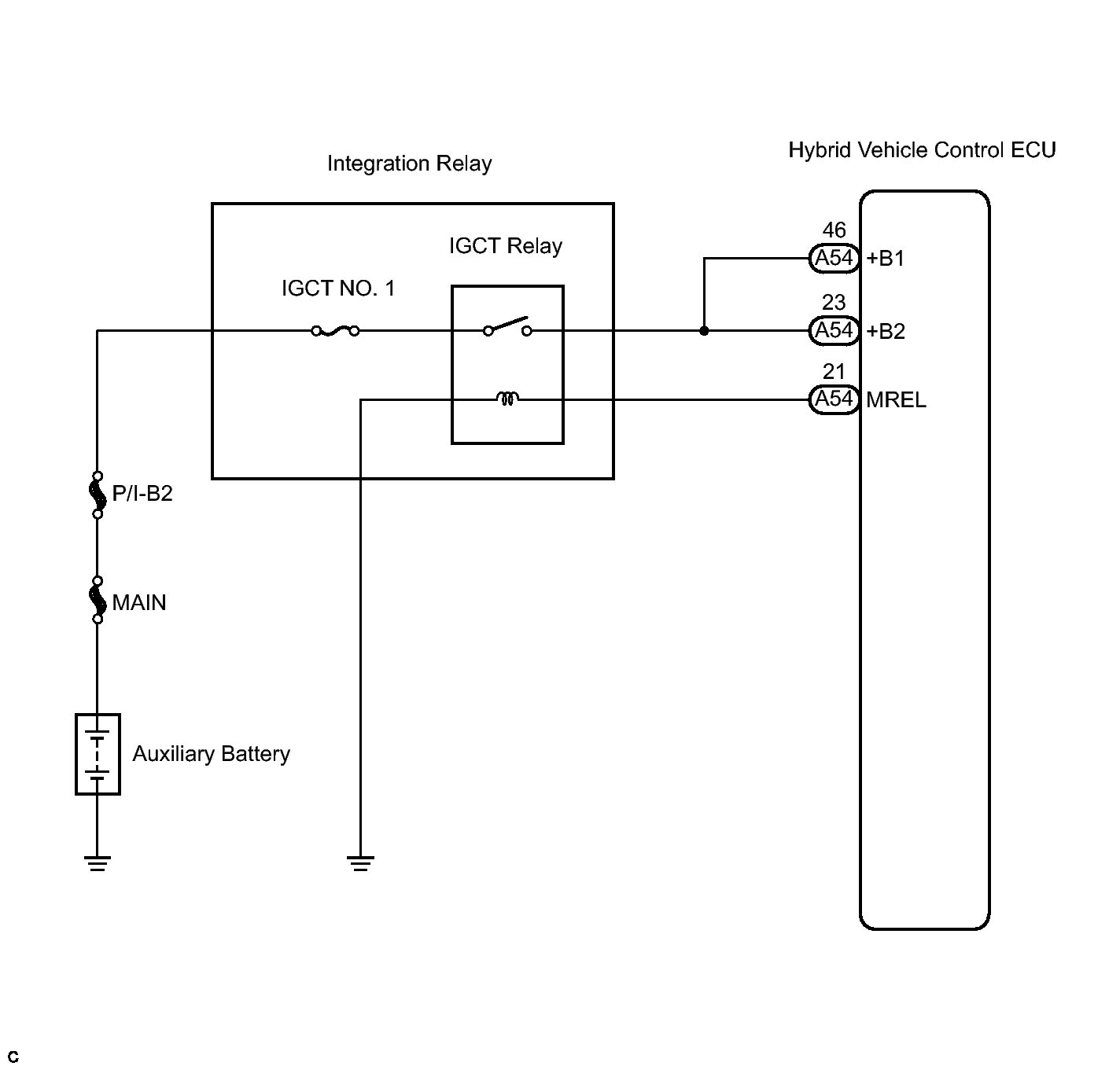

Fig 1: IGCT Relay Malfunction -- Wiring Diagram

GTY143870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
