DTC P2797-865: Auxiliary Transmission Fluid Pump Control Performance: Wiring Diagram

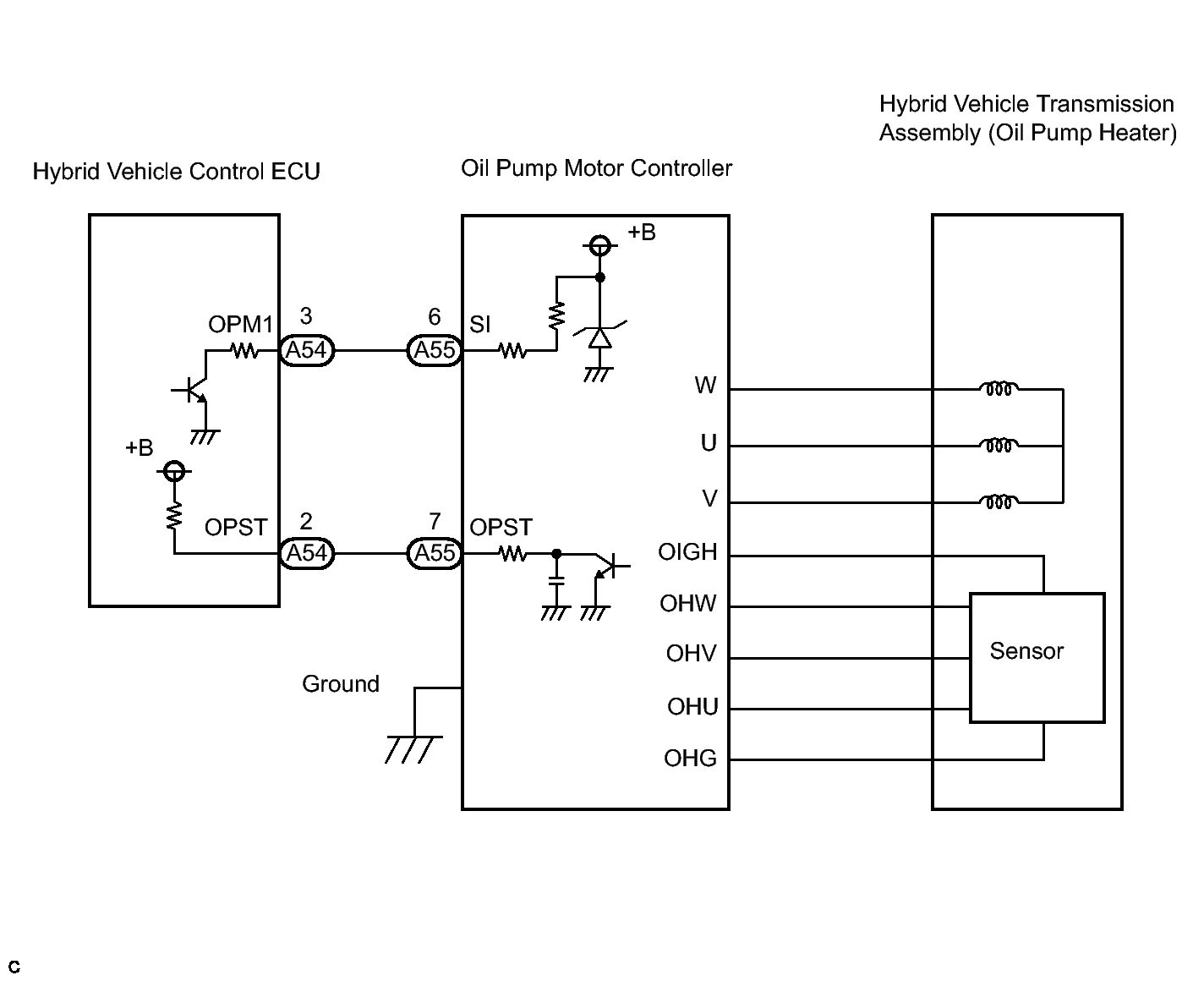

Fig 1: Auxiliary Transmission Fluid Pump Control Performance - Wiring Diagram
GTY147325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
