DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low: Wiring Diagram

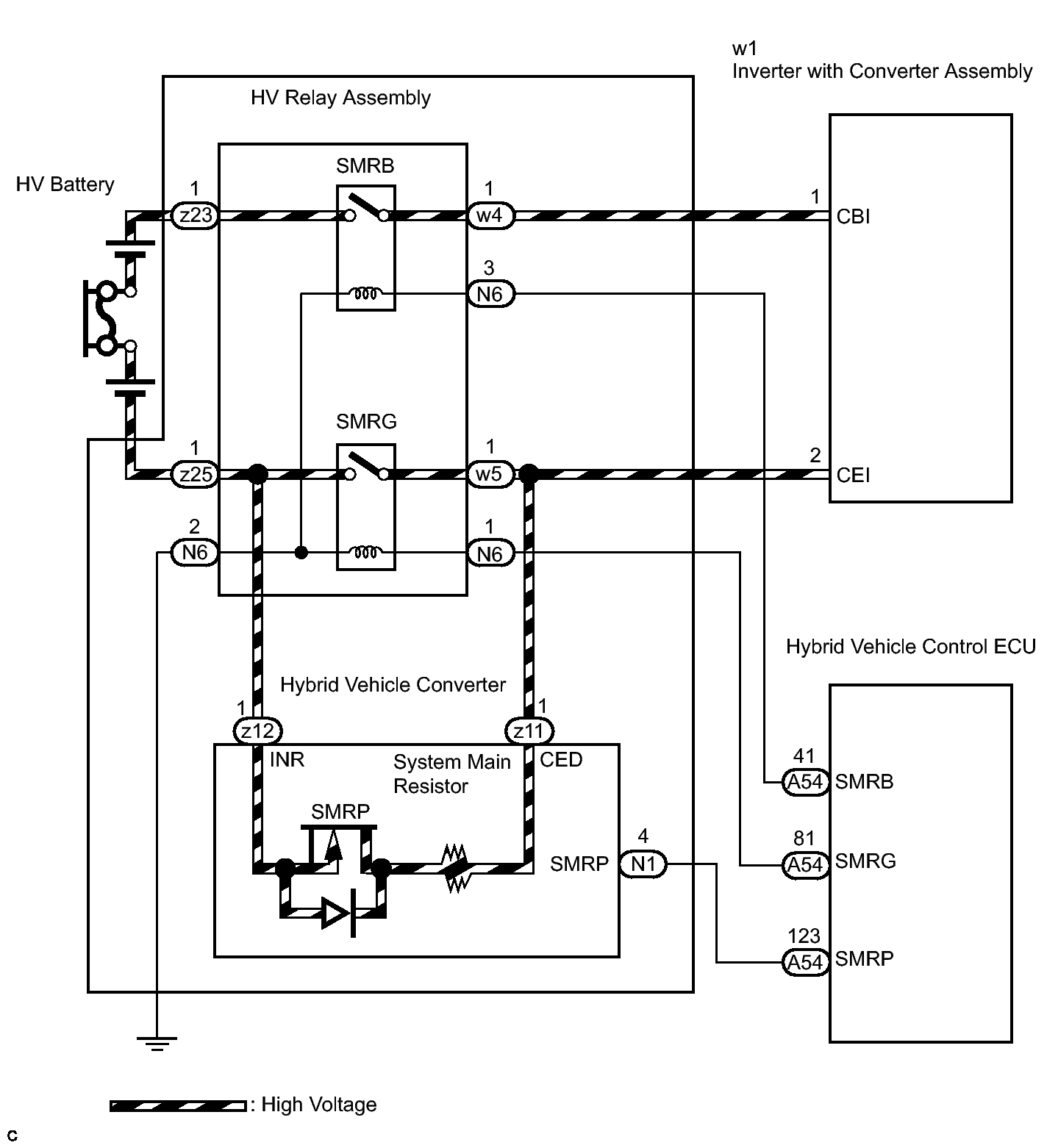

Fig 1: Hybrid Vehicle Control ECU - Wiring Diagram (1 Of 2)
GTY135769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

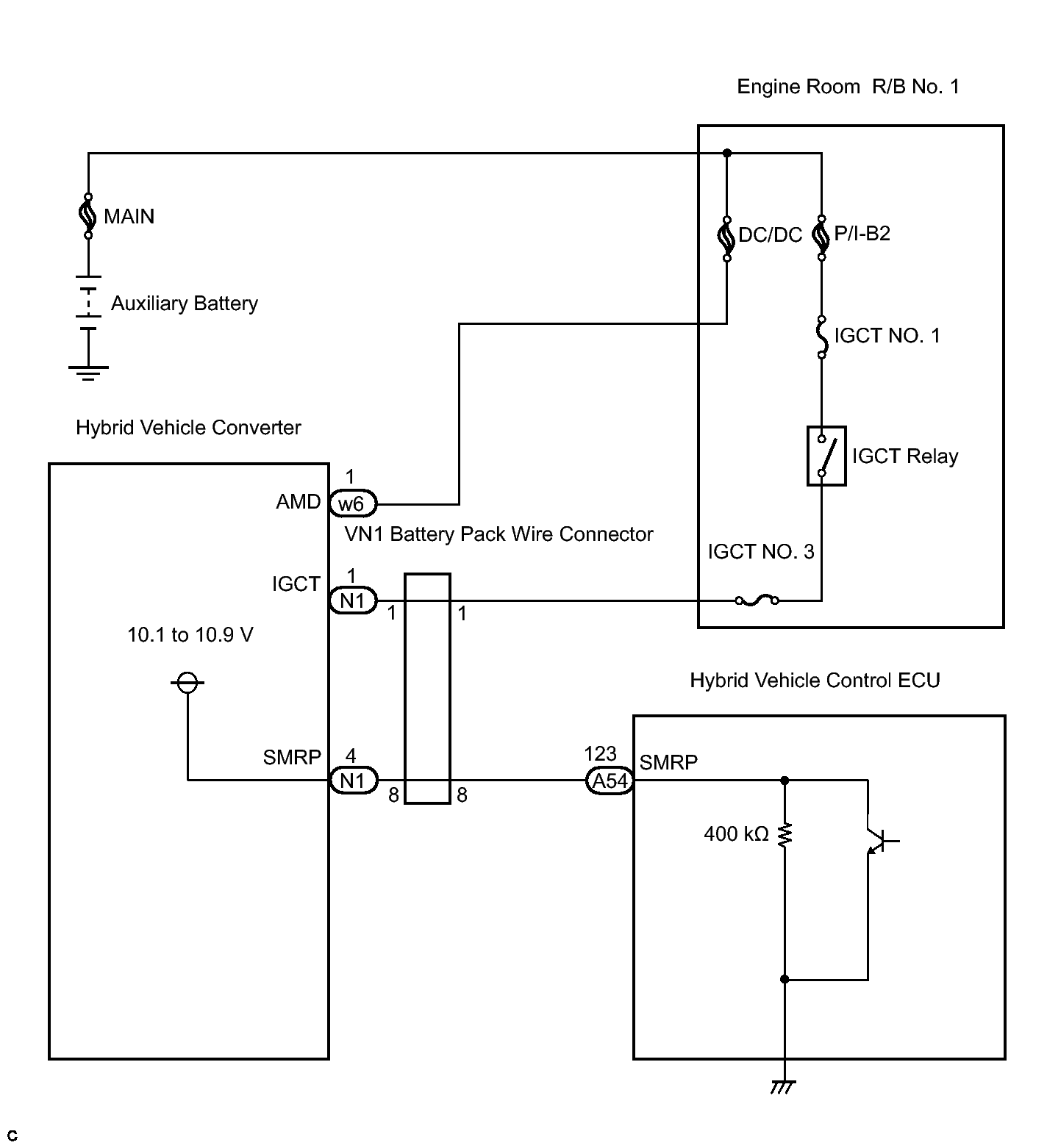

Fig 2: Hybrid Vehicle Control ECU - Wiring Diagram (2 Of 2)
GTY142876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
