System Diagram

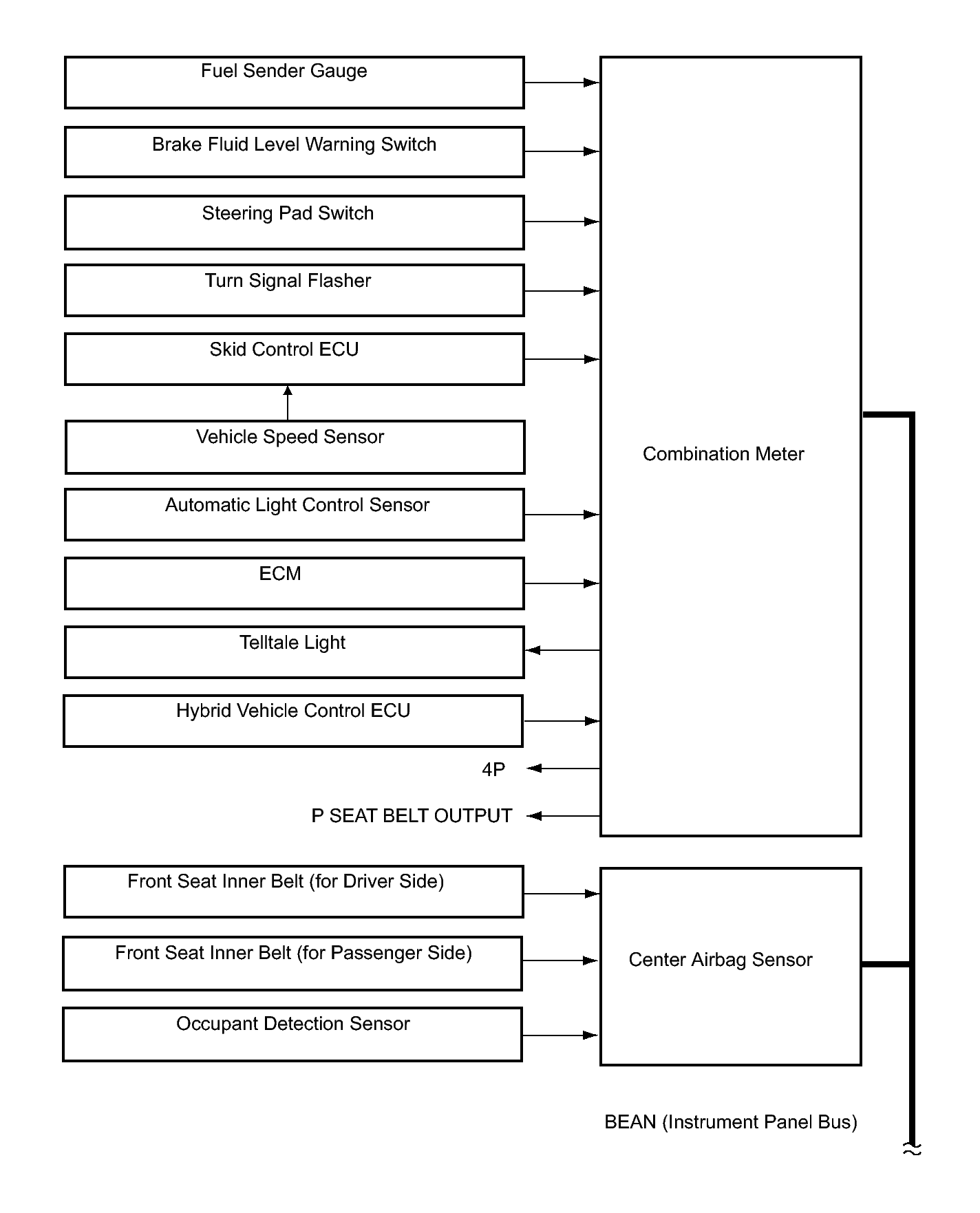

Fig 1: Meter/Gauge System Diagram (1 Of 4)

GTY118218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

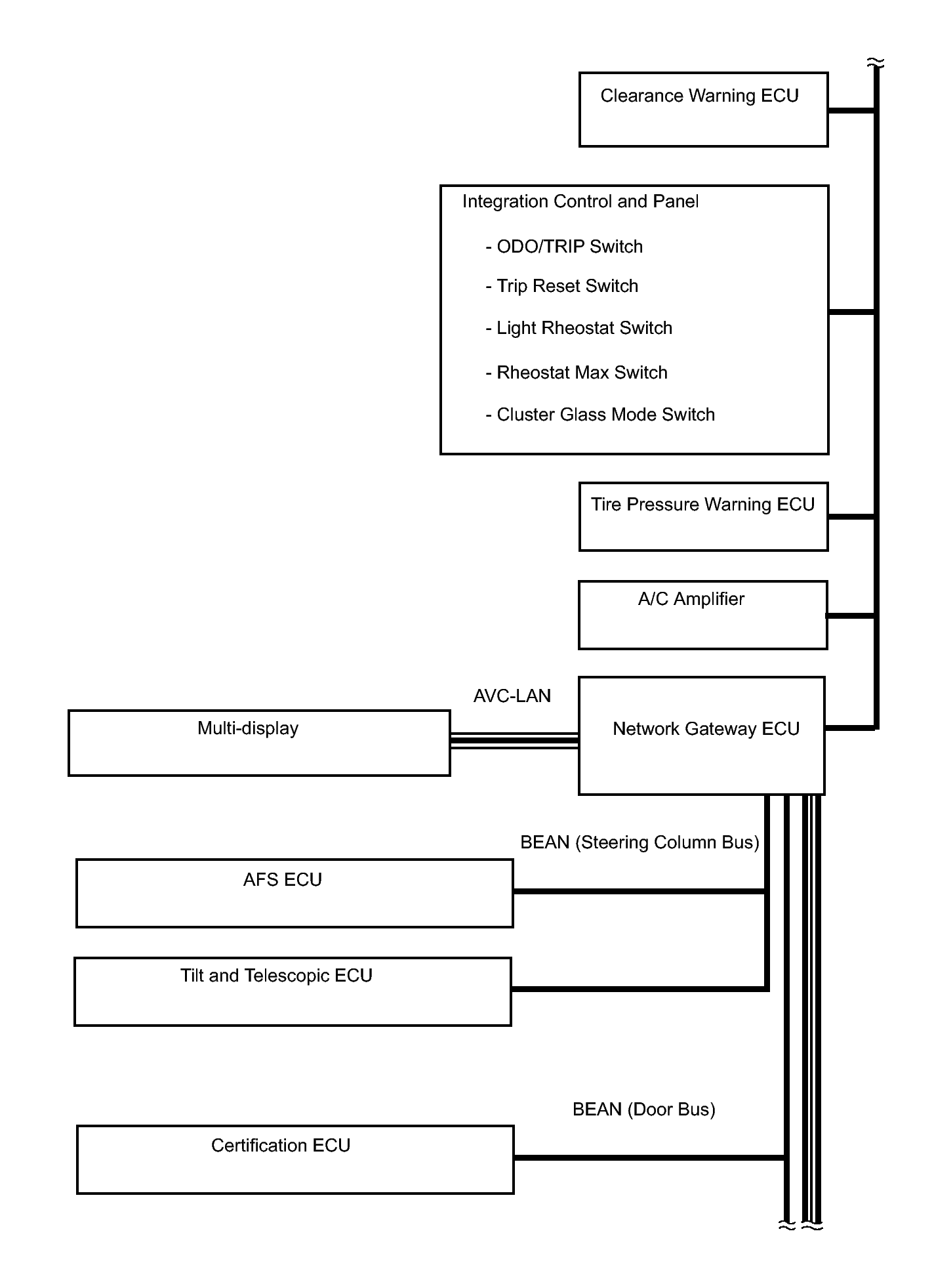

Fig 2: Meter/Gauge System Diagram (2 Of 4)

GTY150481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

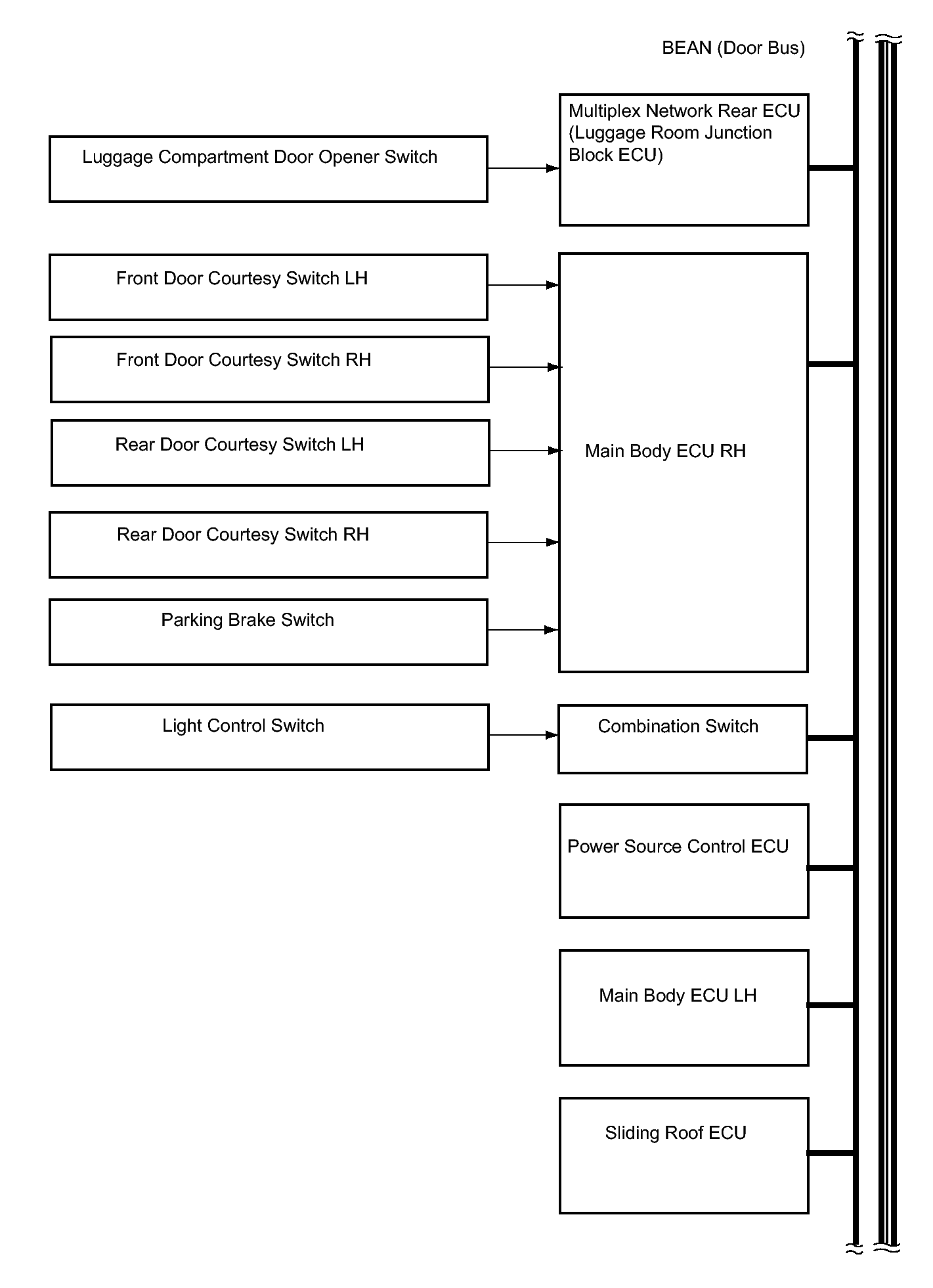

Fig 3: Meter/Gauge System Diagram (3 Of 4)

GTY150482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

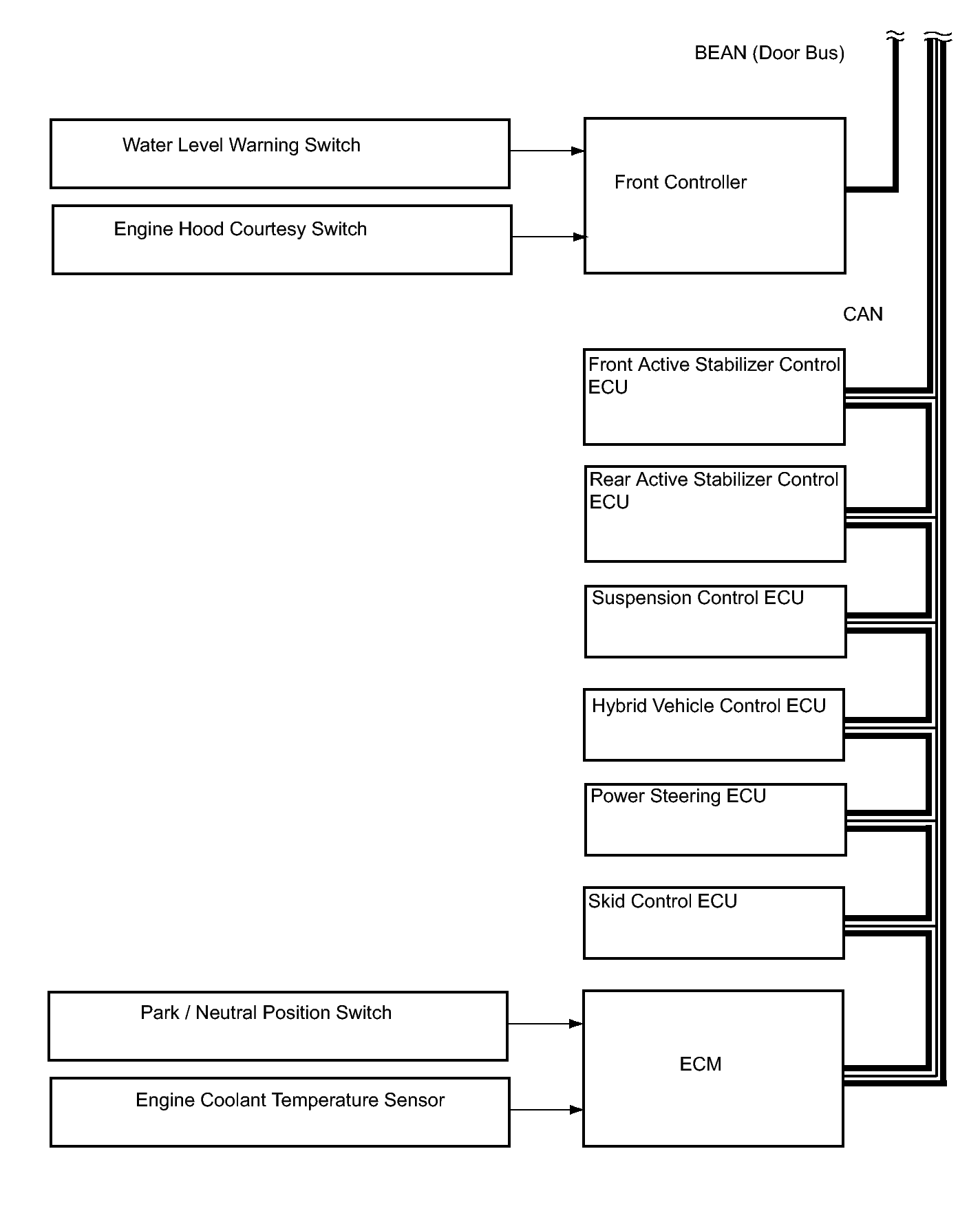

Fig 4: Meter/Gauge System Diagram (4 Of 4)

GTY152180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAN

ECU	Communication signal to combination meter
Skid control ECU	Transmits slip warning light signal Transmits ABS warning light signal Transmits electronically controlled brake system warning light signal Transmits parking brake switch signal Transmits brake fluid level warning signal Transmits VSC OFF warning light signal Transmits brake warning light signal
ECM	Transmits ECT snow indicator signal Transmits ECT power indicator signal Transmits check engine warning signal Transmits CRUISE warning signal Transmits battery charge signal Transmits shift position signal Transmits PCS warning signal Transmits engine oil level warning signal Transmits engine oil pressure warning signal Transmits test mode signal Transmits water temperature signal Transmits engine speed signal
Power steering ECU	Transmits power steering warning signal
Suspension control ECU	Transmits AVS warning signal
Hybrid vehicle control ECU	Power mode signal Snow mode signal
Front active stabilizer control ECU	Transmits test mode signal Transmits system check signal
Rear active stabilizer control ECU	Transmits test mode signal Transmits system check signal

BEAN (INSTRUMENT PANEL)

ECU	Communication signal to combination meter
Combination meter	Transmits vehicle speed signal
Center airbag sensor	Transmits driver seat buckle switch signal Transmits passenger seat buckle switch signal Transmits passenger seat occupant detection signal Transmits SRS airbag warning light signal
Clearance warning ECU	Transmits park assist system warning light signal
Tire pressure warning ECU	Transmits tire pressure warning light signal
Integration control and panel	Transmits ODO/TRIP switch signal Transmits trip reset switch signal Transmits light rheostat signal Transmits rheostat max signal Transmits ECD mode signal

BEAN (DOOR)

ECU	Communication signal to combination meter
Main body ECU RH	Transmits door courtesy switch signal Transmits fog light warning light signal Transmits high beam warning light signal
Multiplex network rear ECU Luggage room junction block ECU	Transmits luggage door courtesy switch signal
Front controller	Transmits washer level warning switch signal Transmits engine hood courtesy switch signal
Sliding roof control ECU	Transmits roof close signal Transmits roof open warning signal

BEAN (STEERING COLUMN)

ECU	Communication signal to combination meter
AFS ECU	Transmits AFS OFF warning light signal
