Parts Location: Illustration

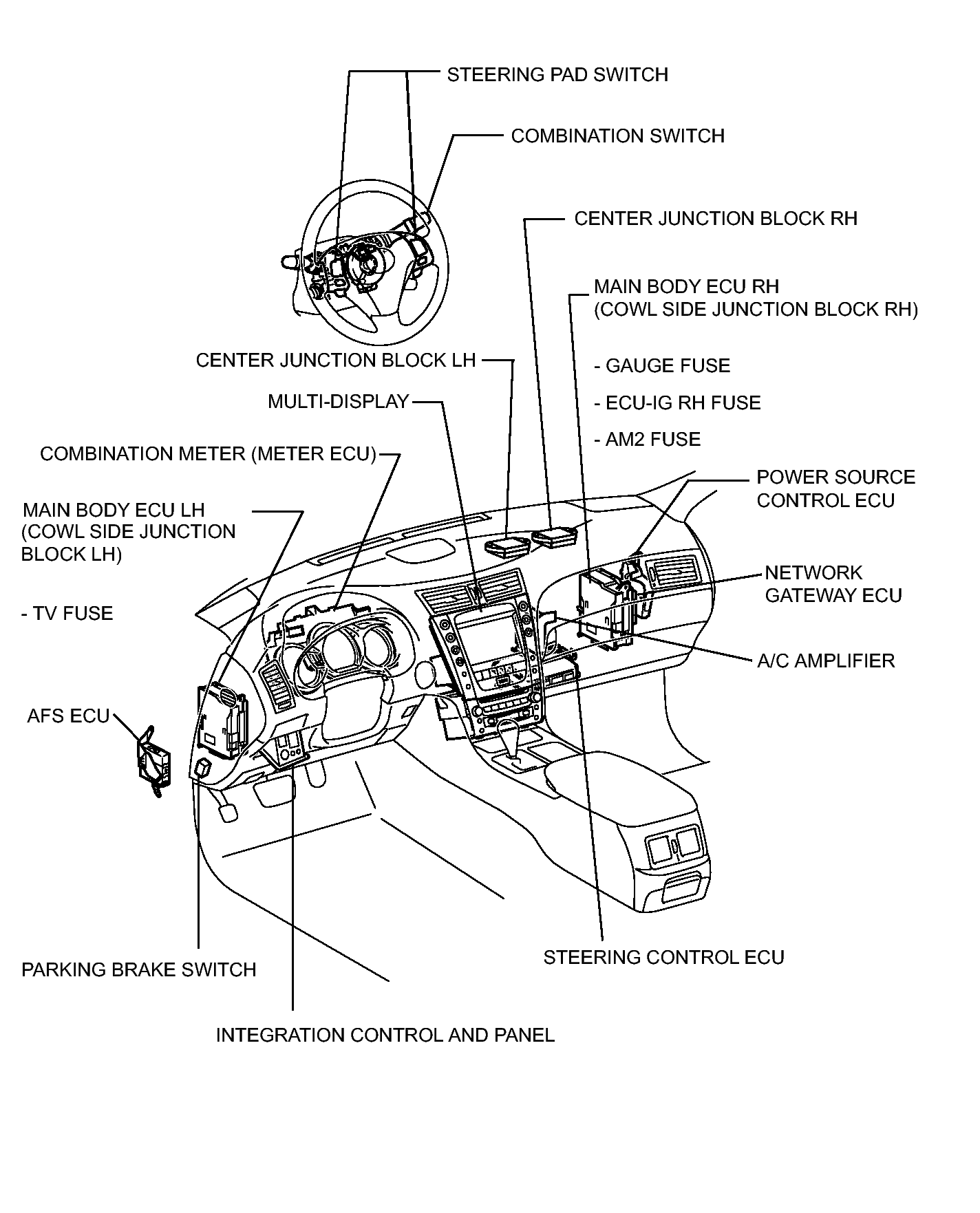

Fig 1: Identifying Meter/Gauge System Parts Location (1 Of 4)
GTY118216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Parts Location (2 Of 4)
GTY118217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

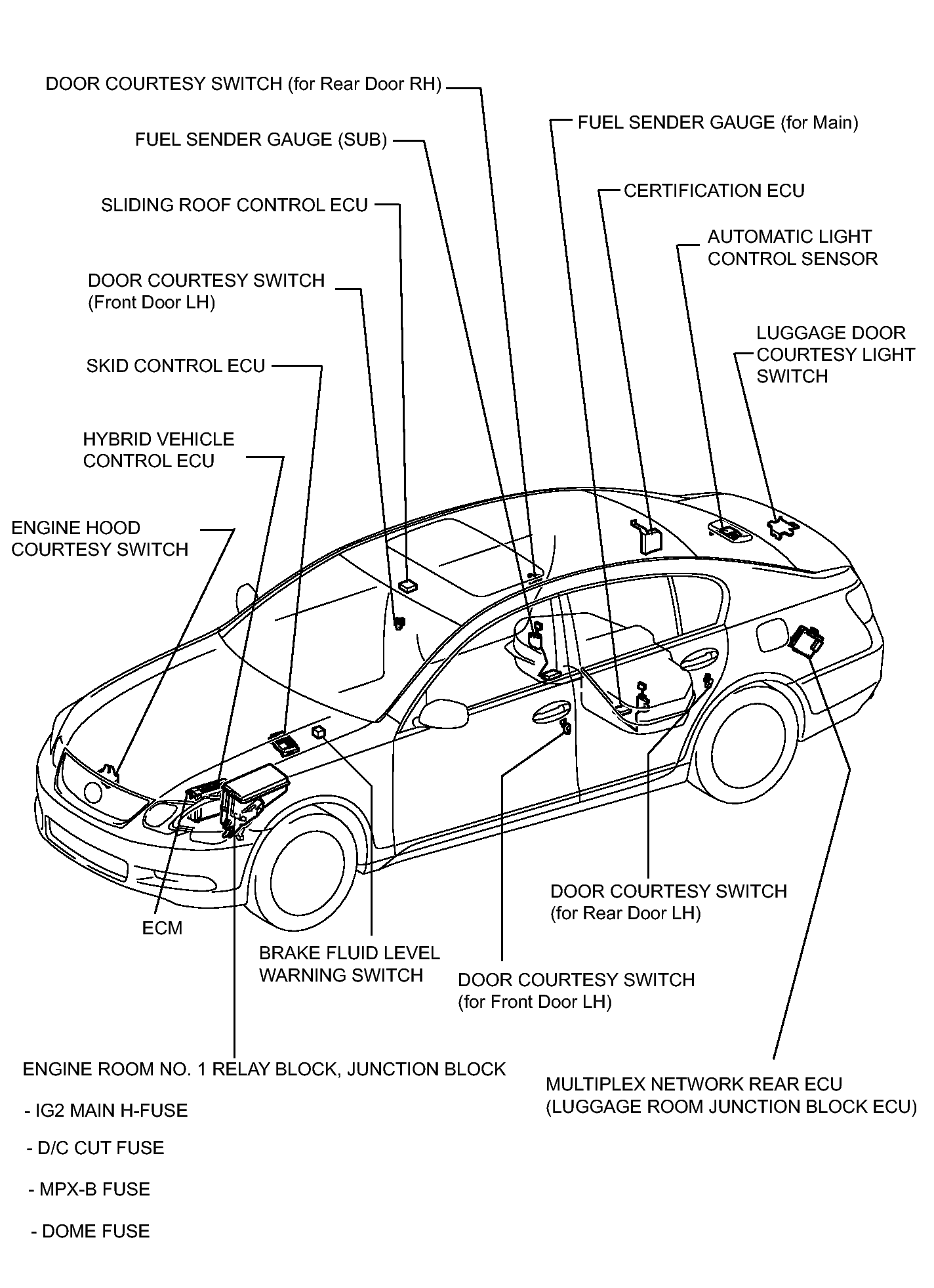

Fig 1: Identifying Meter/Gauge System Parts Location (3 Of 4)
GTY117682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

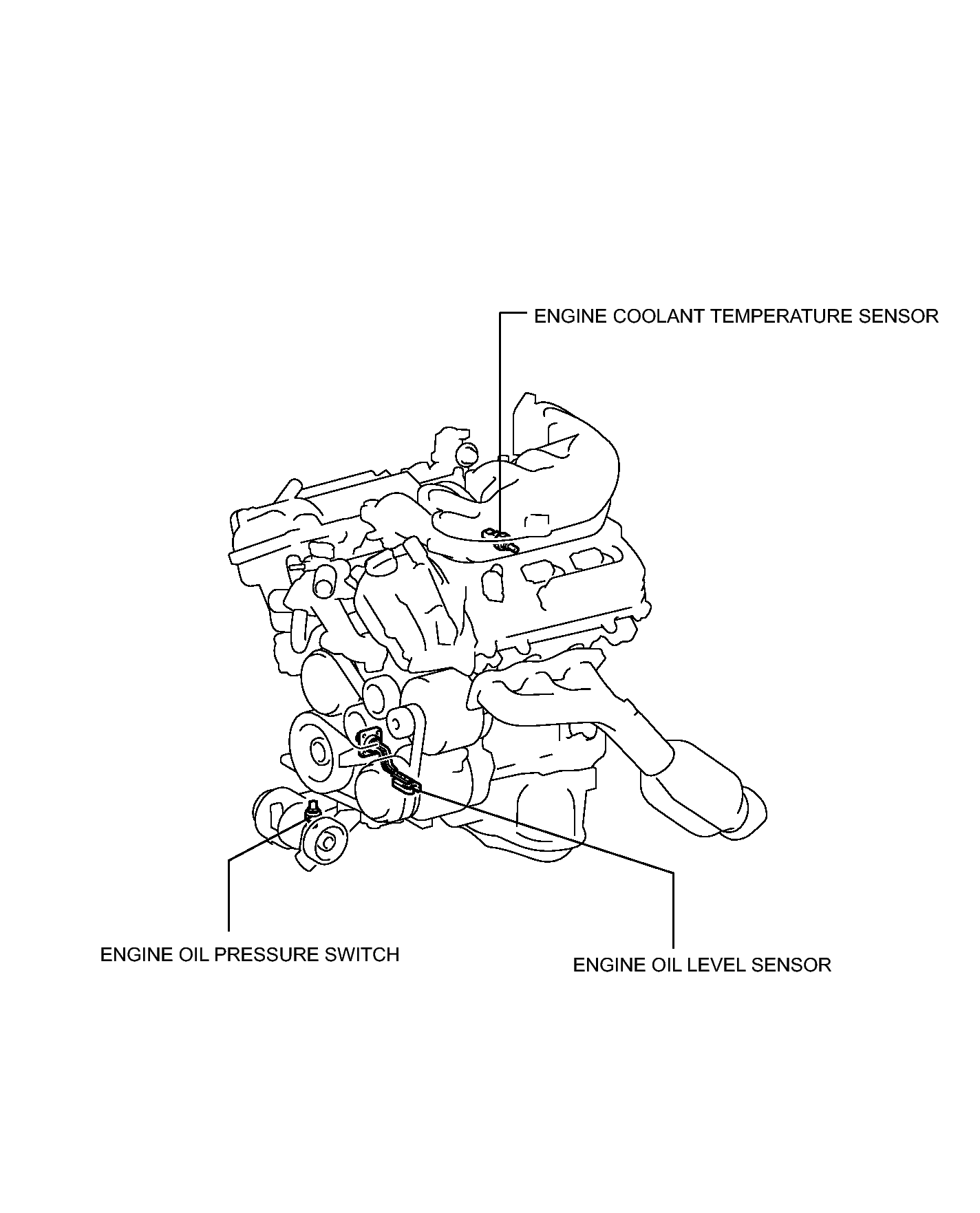

Fig 1: Identifying Meter/Gauge System Parts Location (4 Of 4)
GTY118219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
