Fuel Gauge Malfunction: Wiring Diagram

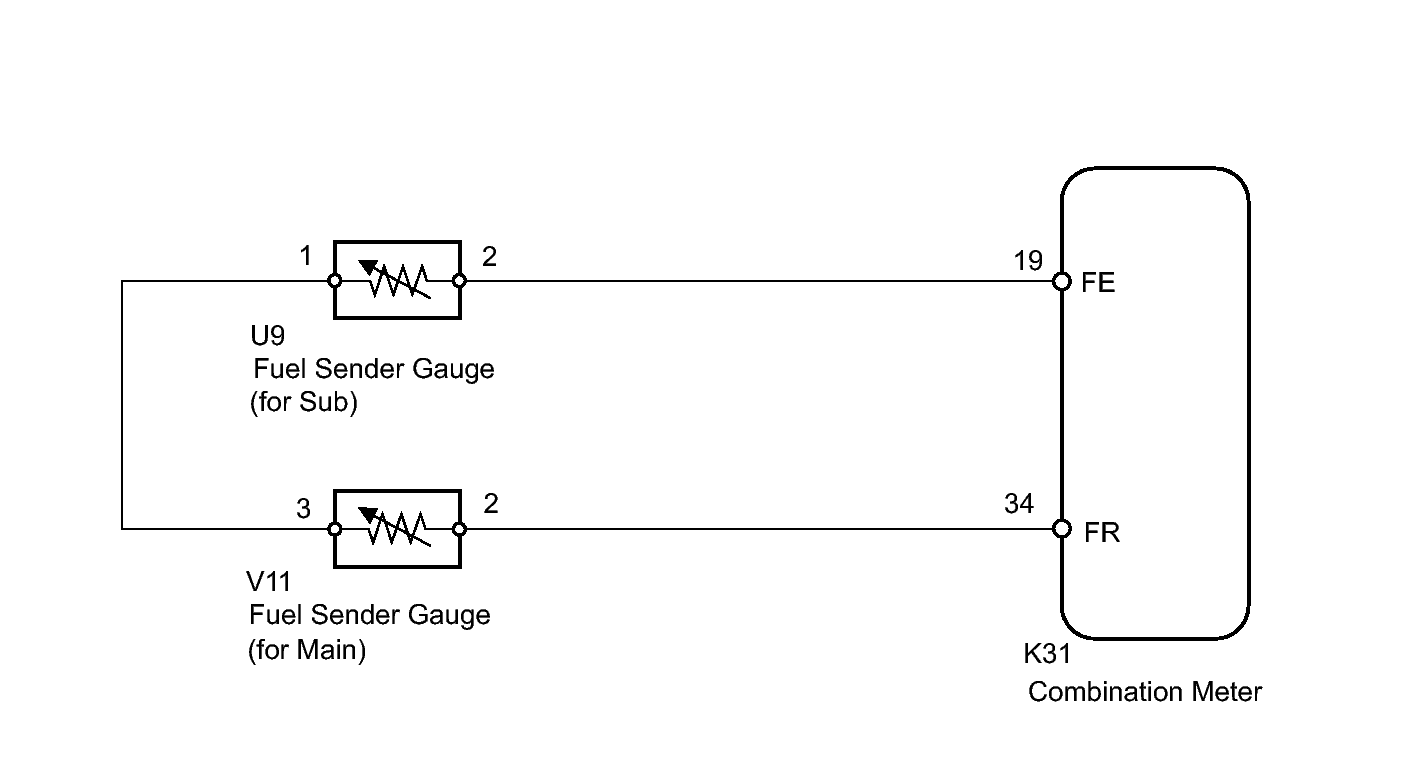

Fig 1: Identifying Fuel Gauge Wiring Diagram

GTY126799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
