Entire Combination Meter Does Not Operate: Wiring Diagram

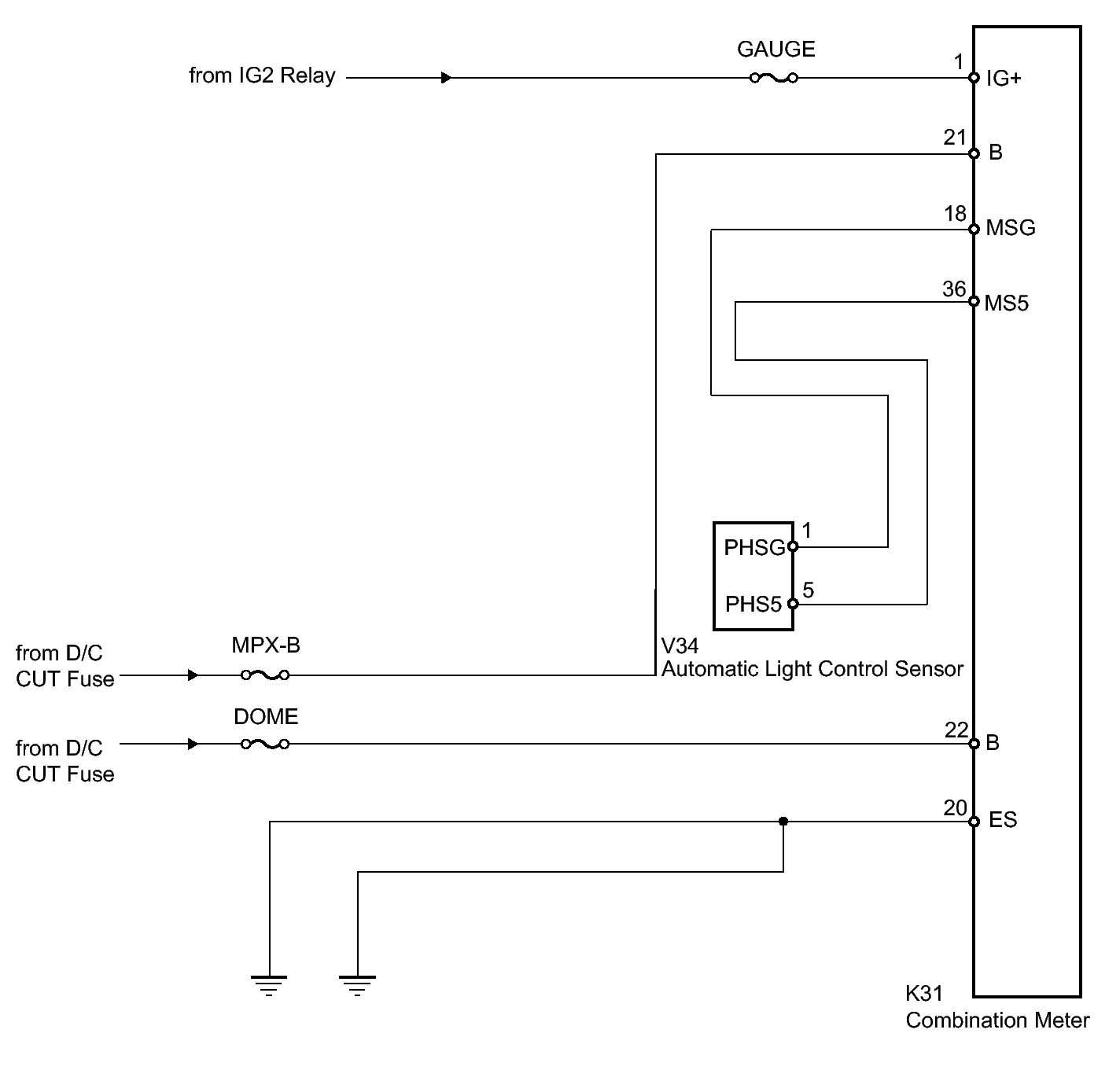

Fig 1: View Of Combination Meter Wiring Diagram
GTY125743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
