Engine Coolant Temperature Gauge Malfunction: Wiring Diagram

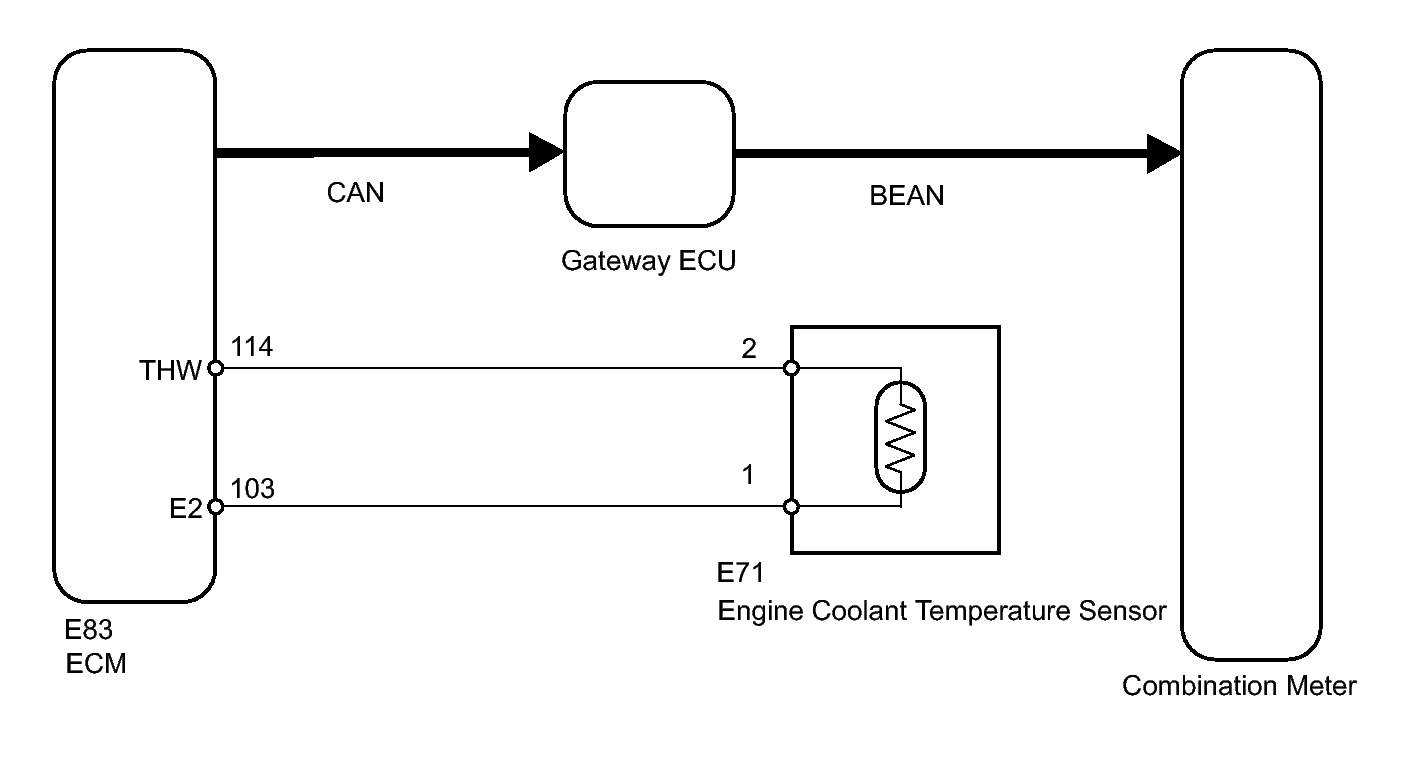

Fig 1: View Of Engine Coolant Temperature Gauge Wiring Diagram

GTY118227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
