Cluster Glass Does Not Become Tinted: Wiring Diagram

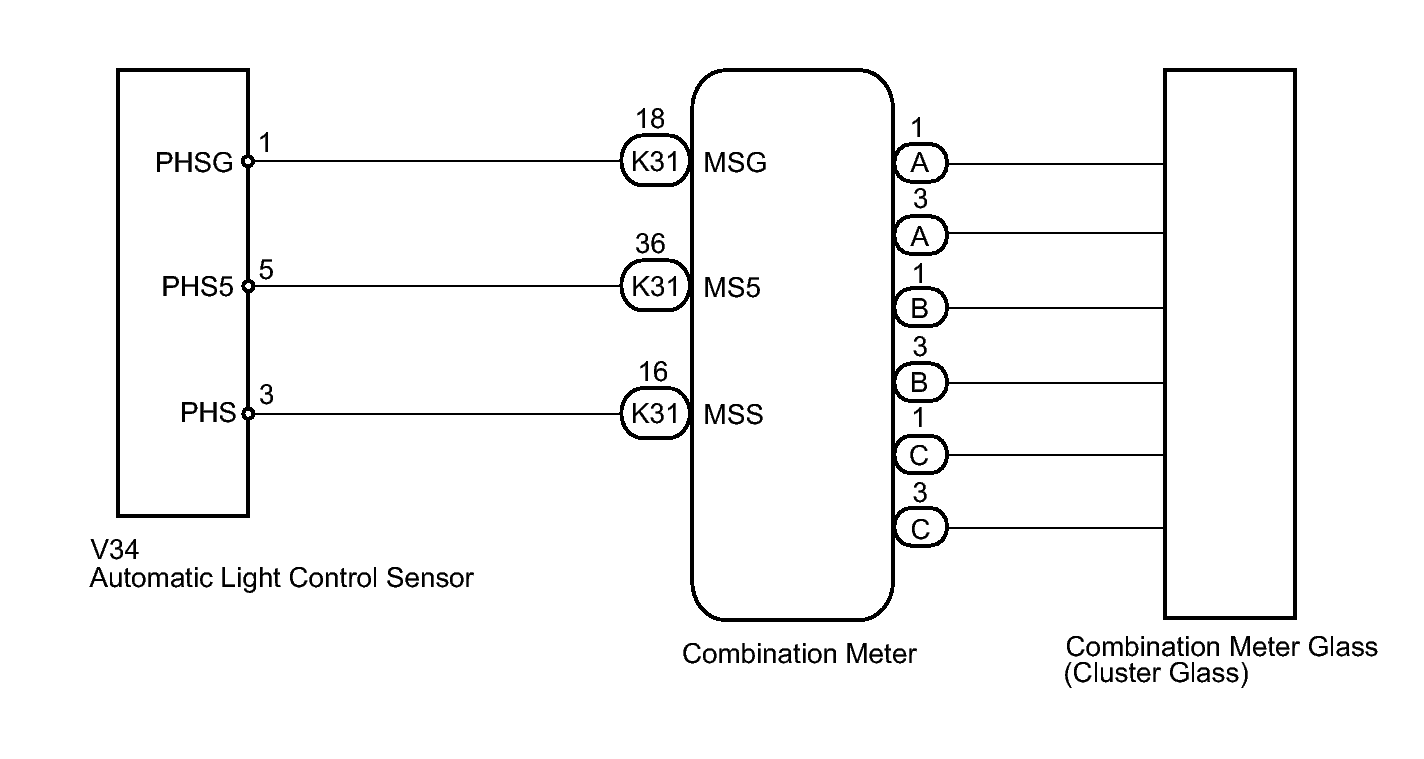

Fig 1: View Of Cluster Glass Wiring Diagram

GTY126329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
