Cluster Glass Does Not Become Tinted: Procedure

1. Cover the automatic light control sensor with a cloth to prevent it from sensing.
2. Connect the Techstream to the DLC3.
3. Power switch on (IG).
4. Turn the tester ON.
5. Enter following menus: Body Electrical / Combination Meter / Active Test.
6. Check the operation by referring to the table below.
   COMBINATION METER:



   Tester Display	Test Part	Control Range	Diagnostic Note
   Indicat. ECD ON	Cluster glass	Cluster glass becomes tinted when the active test is ON	Confirm that the vehicle is stopped, engine idling

   OK

   Cluster glass becomes tinted when the active test is ON.

NG → See step   5

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Power switch on (IG).
3. Turn the tester ON.
4. Enter following menus: Body Electrical / Combination Meter / Data List.
5. Check the values by referring to the table below.
   COMBINATION METER:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   ECD Sunlight Sensor	ECD sunlight sensor input value/Min.: 0, Max.: 255	Between 50 to 70	Confirm that the vehicle is stopped, engine idling
   		Between "light is not shined on automatic light control sensor" value and 195*

   HINT:

   *: The value changes according to the intensity of the light.

OK → REPLACE COMBINATION METER

NG: Go to next step

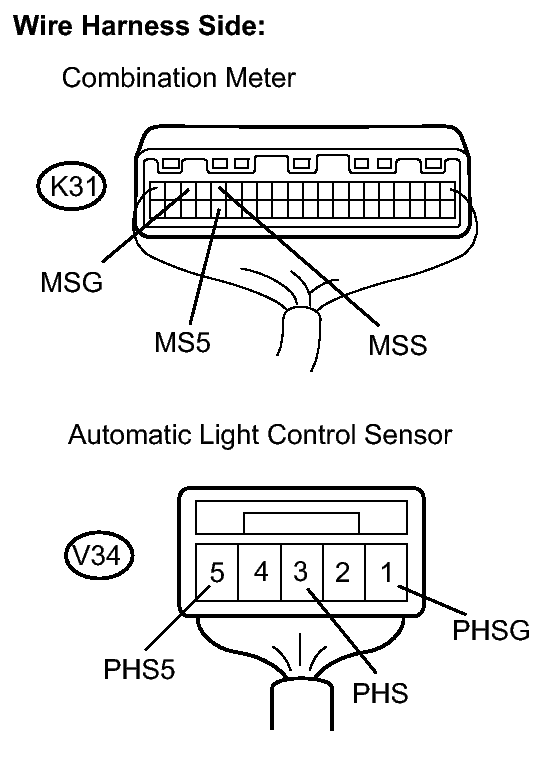

Fig 1: Identifying K31 And V34 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the K31 meter connector.
2. Disconnect the V34 sensor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   K31-36 (MS5) - V34-5 (PHS5)	Below 1 Ω
   K31-16 (MSS) - V34-3 (PHS)	Below 1 Ω
   K31-18 (MSG) - V34-1 (PHSG)	Below 1 Ω
   K31-36 (MS5)- Body ground	10 kΩ or higher
   K31-16 (MSS) - Body ground	10 kΩ or higher
   K31-18 (MSG) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Fig 2: Identifying V34 Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the K31 meter connector.
2. Disconnect the V34 sensor connector.
3. Measure the resistance of the wire harness side connector.

   Standard resistance

   Tester Connection	Specified Condition
   V34-3 (PHS) - V34-5 (PHS5)	275 to 325 Ω

4. Measure the voltage of the wire harness side connector.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   V34-1 (PHSG) - V34-5 (PHS5)	Power switch ON (IG)	4.6 to 5.4 V

NG → REPLACE COMBINATION METER

OK → REPLACE AUTOMATIC LIGHT CONTROL SENSOR

1. Disconnect the connectors labeled A, B and C in the illustration.
   Fig 3: Identifying Combination Meter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage of the wire harness side connector on the combination meter.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   A-1 - A-3	60 seconds after performing ACTIVE TEST "Indicate ECD ON"	1.22 to 1.32 V
   B-1 - B-3	60 seconds after performing ACTIVE TEST "Indicate ECD ON"	1.22 to 1.32 V
   C-1 - C-3	60 seconds after performing ACTIVE TEST "Indicate ECD ON"	1.22 to 1.32 V

NG → REPLACE COMBINATION METER

OK → REPLACE COMBINATION METER GLASS
