Rear Console Box: Removal: Removal

REMOVE FRONT CONSOLE UPPER PANEL GARNISH See step 17
REMOVE CONSOLE UPPER PANEL ASSEMBLY
1. Turn the shift lever knob in the direction indicated by the arrow and remove it.

  Fig 1: Turning Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 9 clips.

  Fig 2: Identifying Console Upper Panel Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
3. Remove the console upper panel assembly and then disconnect the connector.
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
1. Remove the screw.

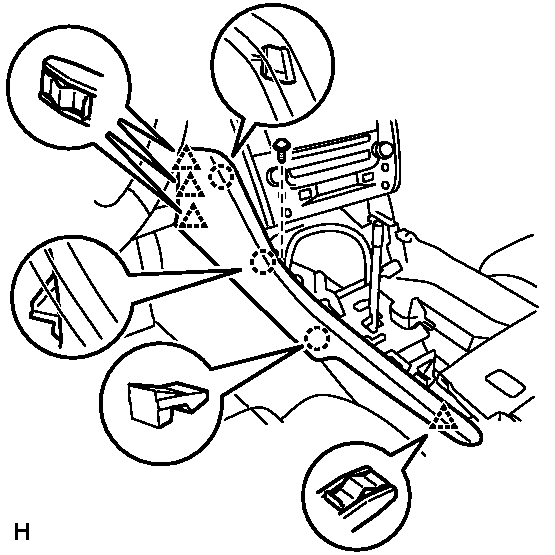

  Fig 3: Identifying Finish Panel End Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 3 clips and 3 claws.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the instrument panel finish panel end RH.
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
1. Remove the screw.

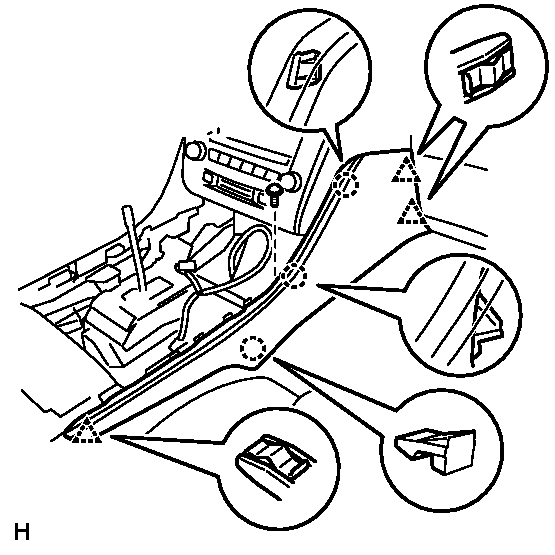

  Fig 4: Identifying Instrument Panel Finish Panel End Clips And Claws - LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 4 clips and 3 claws.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the instrument panel finish panel end LH.
REMOVE CONSOLE BOX PLATE
1. Using a screwdriver, disengage the 4 clips.

  Fig 5: Identifying Console Box Plate Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Remove the console box plate and then disconnect the connector.
REMOVE CONSOLE BOX REGISTER ASSEMBLY
1. Using a screwdriver, disengage the 4 clips and remove the console box register assembly.

  Fig 6: Identifying Console Box Register Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE CONSOLE BOX ASSEMBLY
1. Remove the 4 bolts and 2 screws.

  Fig 7: Identifying Console Box Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the console box assembly and then disconnect the connector.
