Rear Console Box: Components: Illustration

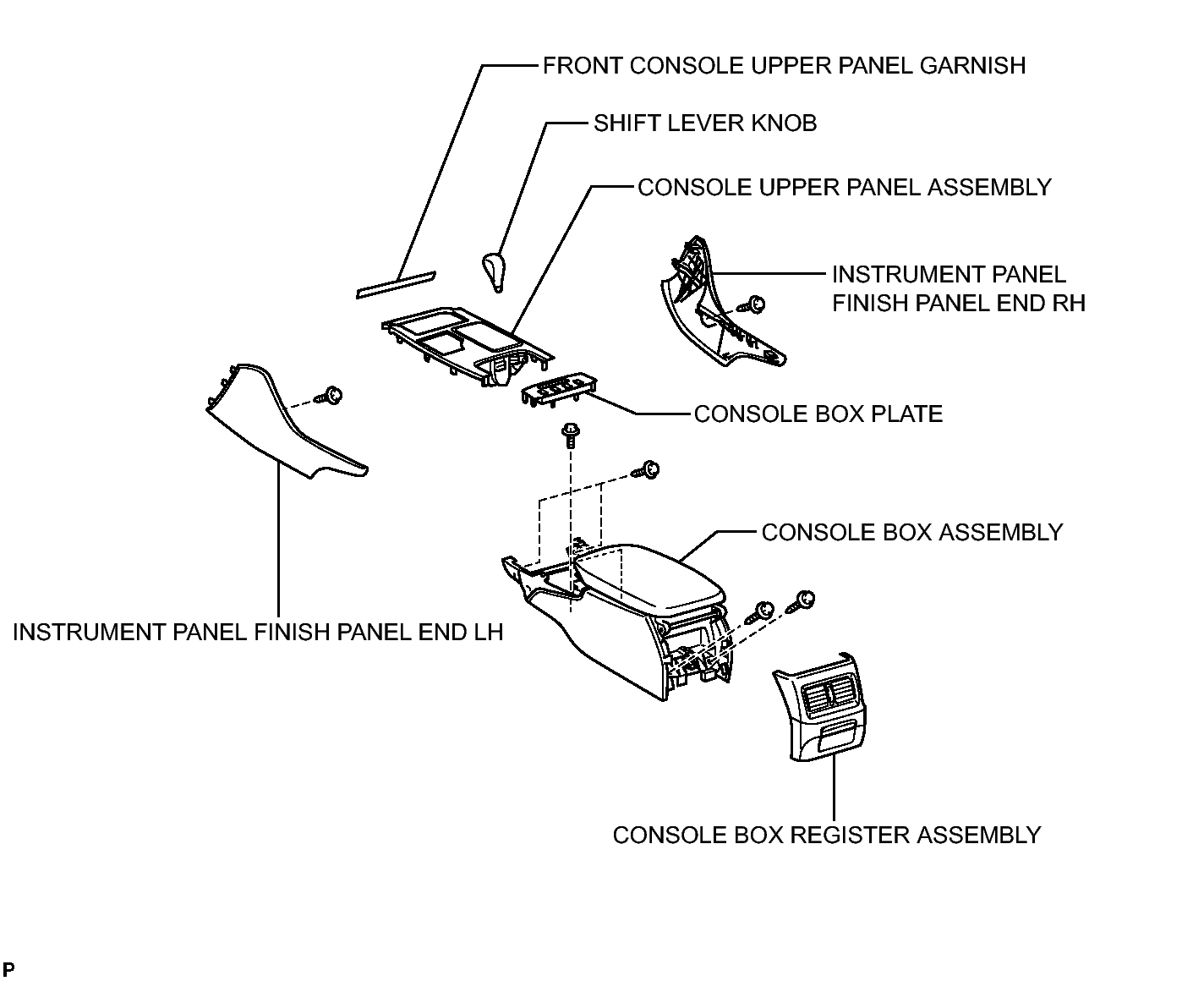

Fig 1: Identifying Rear Console Box Replacement Components (Figure 1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

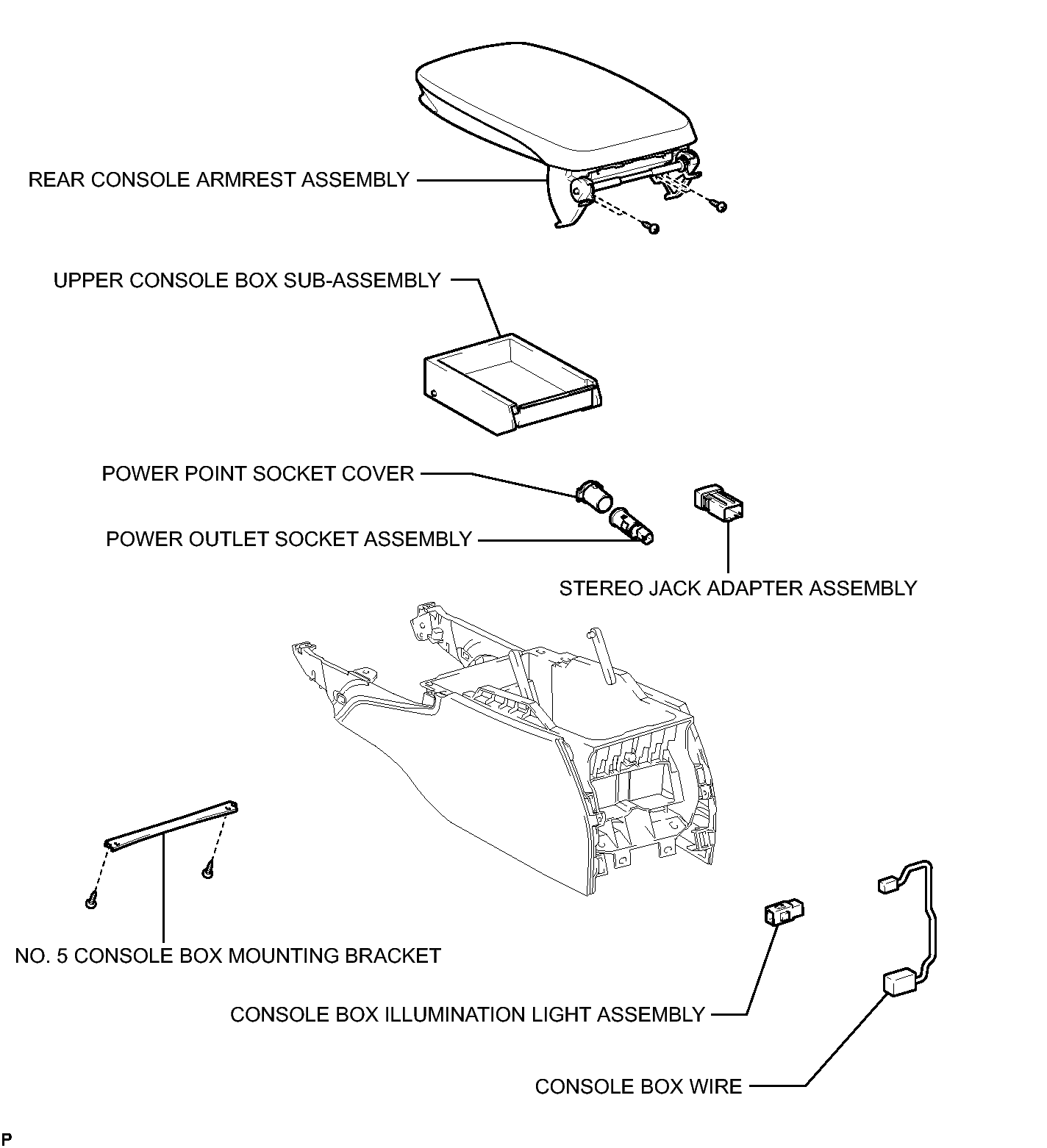

Fig 1: Identifying Rear Console Box Replacement Components (Figure 2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
