Instrument Panel Safety Pad: Installation: Installation

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Engage the 5 clips to install the instrument panel safety pad sub-assembly.
    2. Connect the connectors and clamps.
    3. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m ( 204 kgf*cm, 15 ft.*lbf)

    4. Install the 4 bolts, nut and 2 clips.
    5. Install the center junction block RH and LH with the 4 nuts.

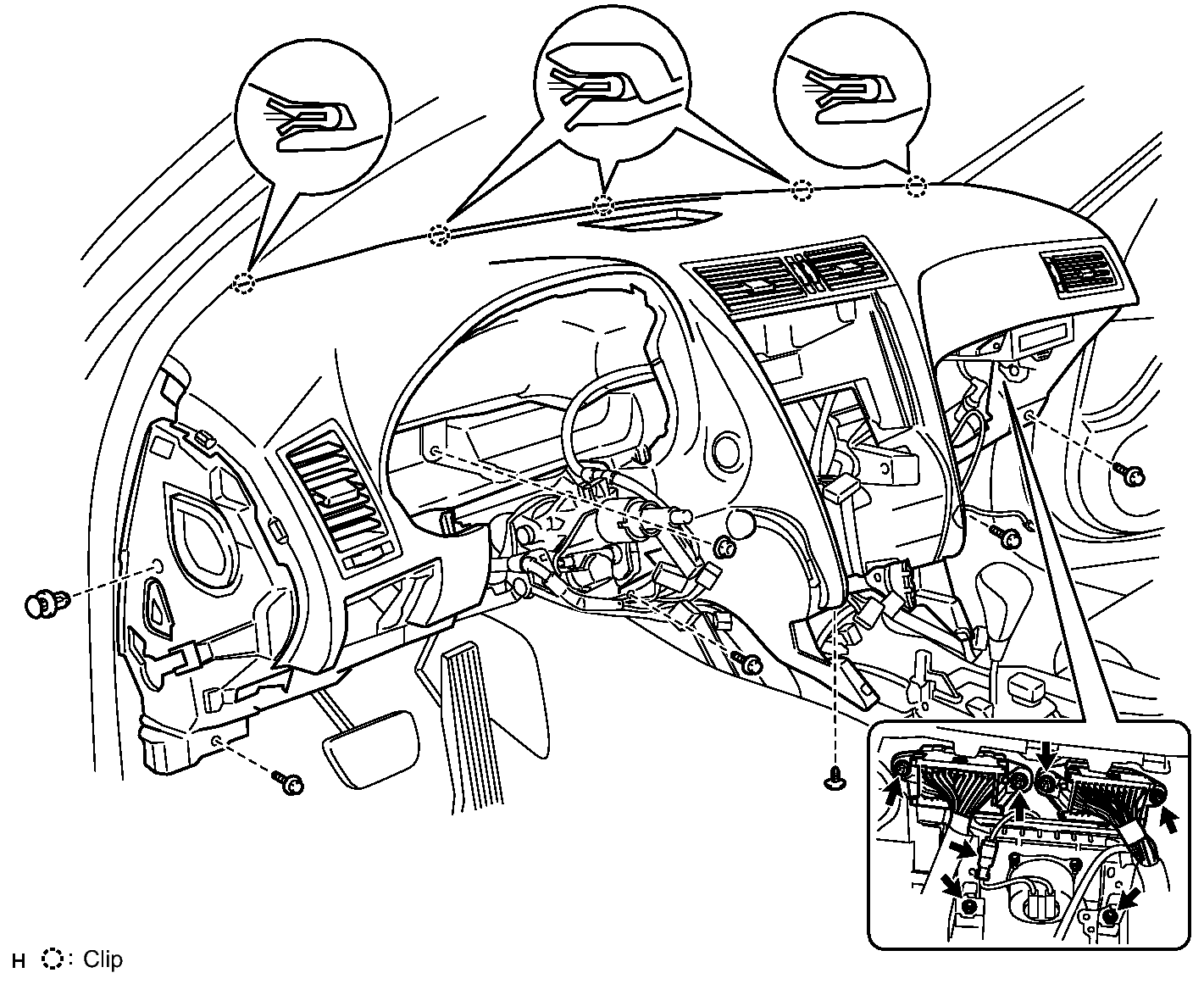

      Fig 1: Identifying Instrument Panel Safety Pad
      GTY100462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Navigation system:

      Install the navigation ECU.

      Fig 2: View Of ECU And Bolts
      GTY104243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the connector.
      2. Install the ECU with the 3 bolts.
  2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  . Refer to INSTALLATION - Step 3
  3. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 25
  4. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 26
  5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Engage the 2 clips and claw to install the glove compartment door sub-assembly.
      Fig 3: Identifying Glove Compartment Door
      GTY105795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and clamp.
    3. Install the 4 screws.
  6. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector and clamp.
      Fig 4: Identifying Instrument Panel No. 2 Under Cover
      GTY102856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips to install the No. 2 instrument panel under cover sub-assembly.
  8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Connect the connector.
      Fig 5: Identifying Driver Side Knee Airbag
      GTY108222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the integration control and panel assembly.
    3. Install the 2 screws.
  9. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  10. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Connect the connector.

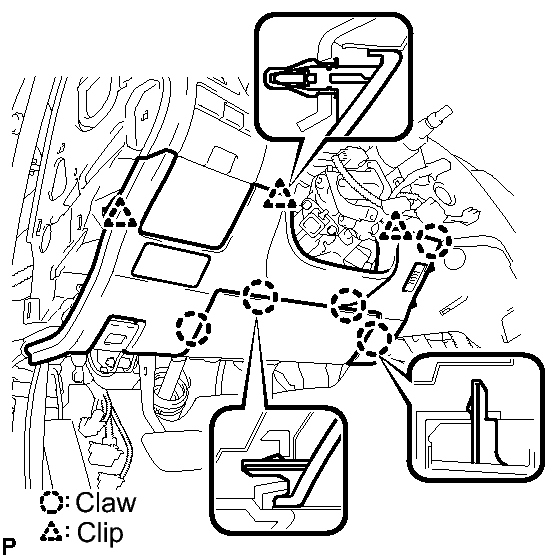

      Fig 6: Identifying Instrument Panel No. 1 Safety Pad Sub-Assembly Clips And Claws
      GTY102052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood lock control cable to the safety pad.
    3. Engage the 3 clips and 5 claws to install the No. 1 instrument panel safety pad sub-assembly.
  11. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.

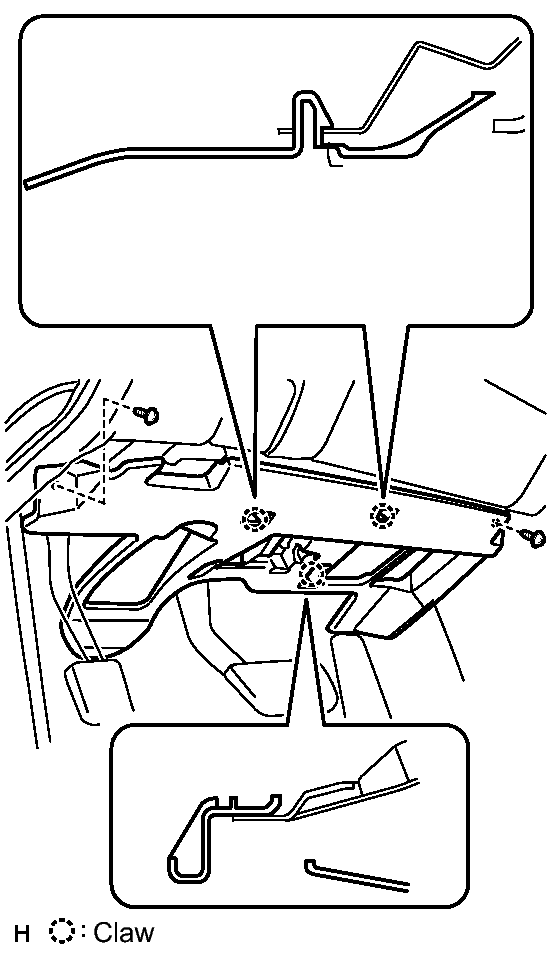

      Fig 7: Identifying Instrument Panel No. 1 Under Cover
      GTY106053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 3 claws to install the No. 1 instrument panel under cover sub-assembly.
    3. Install the 2 screws.
  12. INSTALL INSTRUMENT SIDE PANEL LH
    1. Engage the 2 claws and 4 clips to install the instrument side panel LH.
      Fig 8: Identifying Instrument Side Panel LH
      GTY103043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL INSTRUMENT SIDE PANEL RH
    1. Engage the 2 claws and 4 clips to install the instrument side panel RH.
      Fig 9: Identifying Instrument Side Panel RH
      GTY105793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
      Fig 10: Locating Combination Meter Mounting Screws
      GTY100446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the combination meter assembly with the 4 screws.
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.

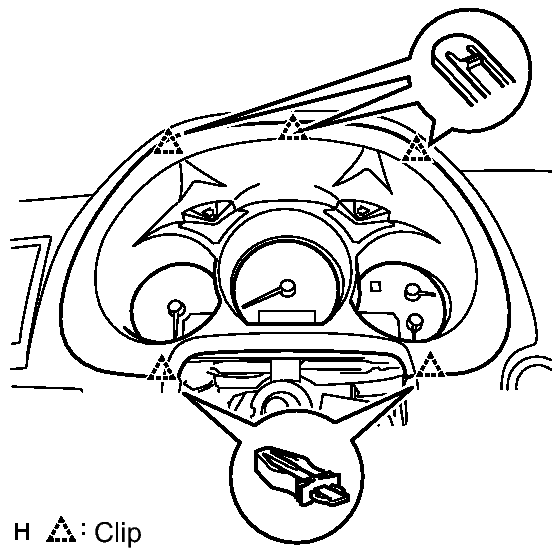

      Fig 11: Identifying Instrument Cluster Finish Panel
      GTY105792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 clips to install the instrument cluster finish panel sub-assembly.
  16. INSTALL CONSOLE BOX ASSEMBLY
    1. Connect the connector.
      Fig 12: Identifying Console Box Bolts And Screws
      GTY105885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the console box assembly with the 4 bolts and 2 screws.
  17. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Engage the 4 clips to install the console box register assembly.
      Fig 13: Identifying Console Box Register
      GTY105783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CONSOLE BOX PLATE
    1. Connect the connector.
      Fig 14: Identifying Console Box Plate
      GTY103385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips to install the console box plate.
  19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Engage the 4 clips and 3 claws to install the instrument panel finish panel end LH.

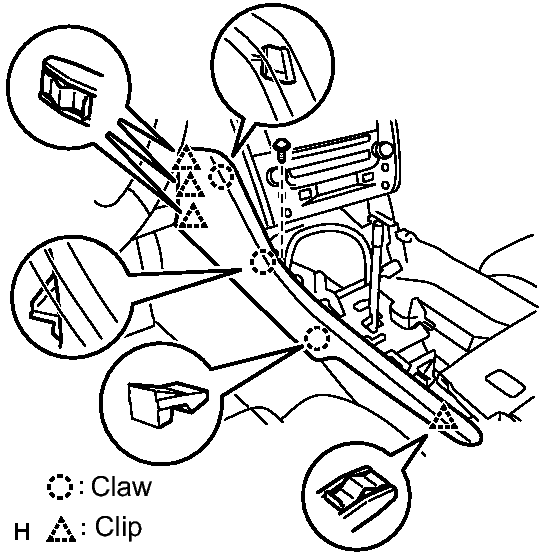

      Fig 15: Identifying Instrument Panel Finish Panel End LH
      GTY105785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  20. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Engage the 3 clips and 3 claws to install the instrument panel finish panel end RH.

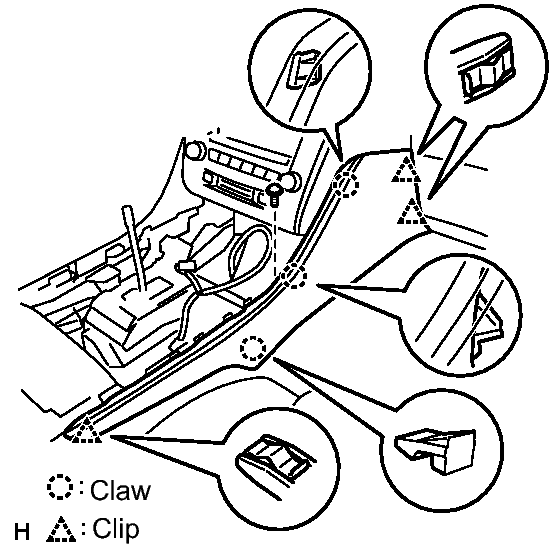

      Fig 16: Identifying Instrument Panel Finish Panel End RH
      GTY105787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  21. INSTALL CONSOLE UPPER PANEL ASSEMBLY
    1. Connect the connector.

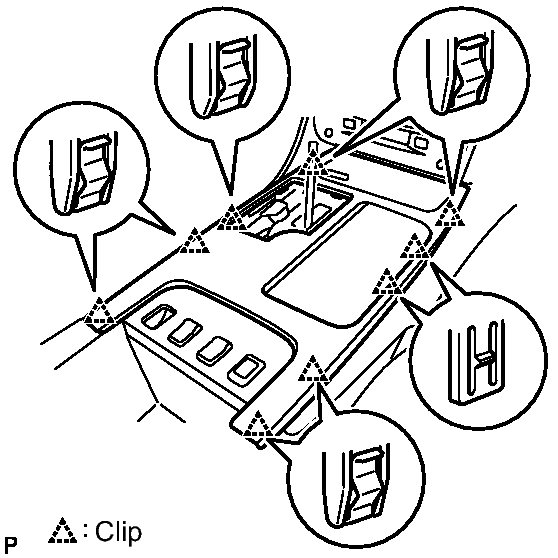

      Fig 17: Identifying Console Upper Panel Clips
      GTY104113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 9 clips to install the console upper panel assembly.
    3. Install the shift lever knob and turn it in the direction indicated by the arrow.
      Fig 18: Installing Shift Lever Knob
      GTY100281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
    1. Engage the claws to install the front console upper panel garnish.
  23. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  24. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  25. INSTALL SPIRAL CABLE WITH STEERING SENSOR  . Refer to INSTALLATION - Step 1
  26. INSTALL UPPER STEERING COLUMN COVER

    for 2GR-FSE:. Refer to INSTALLATION - Step 9

    for 1UR-FSE:. Refer to INSTALLATION - Step 10

  27. INSTALL LOWER STEERING COLUMN COVER

    for 2GR-FSE:. Refer to INSTALLATION - Step 9

    for 1UR-FSE:. Refer to INSTALLATION - Step 10

  28. INSTALL STEERING WHEEL ASSEMBLY

    for 2GR-FSE:. Refer to INSTALLATION - Step 11

    for 1UR-FSE:. Refer to INSTALLATION - Step 12

  29. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  30. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  31. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  32. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 27
  33. INSTALL FRONT DOOR OPENING TRIM COVER RH  . Refer to INSTALLATION - Step 28
  34. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 29
  35. INSTALL FRONT DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 30
  36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .

  37. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light Refer to DIAGNOSIS SYSTEM .
