Speedometer Malfunction: Procedure

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester ON.
4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
5. Check the operation by referring to the table below.
   COMBINATION METER:



   Tester Display	Test Part	Control Range	Diagnostic Note
   Speed Meter Operation	Speedometer	0, 40, 80, 120 mph (*1)	-
   		0, 40, 80, 120, 160, 200, 240 km/h (*2)

   *1: U.S.A.

   *2: except for models for U.S.A.

   OK

   Needle indication is normal.

NG → REPLACE COMBINATION METER

OK: Go to next step

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester ON.
4. Enter the following menus: Body Electrical / Combination Meter / Data List.
5. Check the values by referring to the values in the table below.
   COMBINATION METER:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Vehicle Speed Meter	Vehicle speed/Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph)	Almost same as actual speed (When driving)	-

   OK

   Vehicle speed displayed on the tester is almost the same as the actual vehicle speed.

NG → See step   3

OK → REPLACE COMBINATION METER

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester ON.
4. Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.
5. Check the values by referring to the table below.
   ABS/VSC/TRAC:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR/FL/RR/RL Wheel Speed	Vehicle speed/Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Almost same as actual speed (When driving)	-

   OK

   Vehicle speed displayed on the tester is almost the same as the actual vehicle speed.

NG → GO TO BRAKE CONTROL

OK: Go to next step

1. Disconnect the A13 connector.
2. Disconnect the A48 connector.

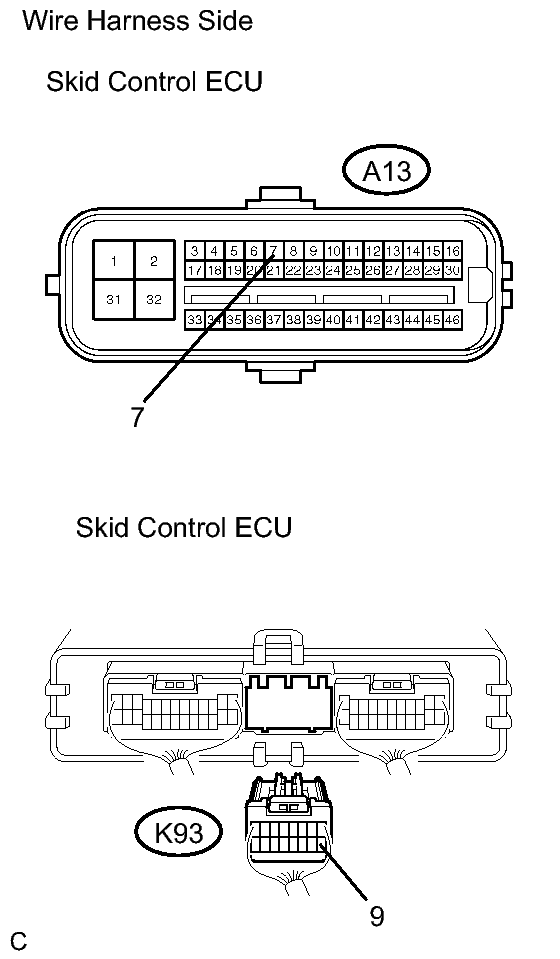

   Fig 1: Inspecting Combination Meter (Output Voltage)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   A13-7 *1 - Body ground	Engine switch on (IG)	10 to 14 V
   K93-9 *2 - Body ground	Engine switch on (IG)	10 to 14 V

   *1: for 1UR-FSE

   *2: for 2GR-FSE

NG → See step   6

OK: Go to next step

1. Check the input signal waveform.
   Fig 2: Identifying K31 Connector Terminal 29

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the combination meter with the connector still connected.
   2. Connect the oscilloscope to the terminals K31-29 and body ground.
   3. Start the engine.
   4. Check the signal waveform of the connector.
      Fig 3: Identifying Signal Waveform

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Item	Condition
      Tool setting	5 V/DIV, 20 ms/DIV.
      Vehicle condition	Driving at approx. 20 km/h (12 mph)

      OK

      As shown in the illustration

      HINT:

      As vehicle speed increases, the cycle of the signal waveform narrows.

NG → REPLACE COMBINATION METER

OK → GO TO BRAKE CONTROL

1. Disconnect the K31 meter connector.
2. Disconnect the A13 ECU connector.
3. Disconnect the A48 ECU connector.

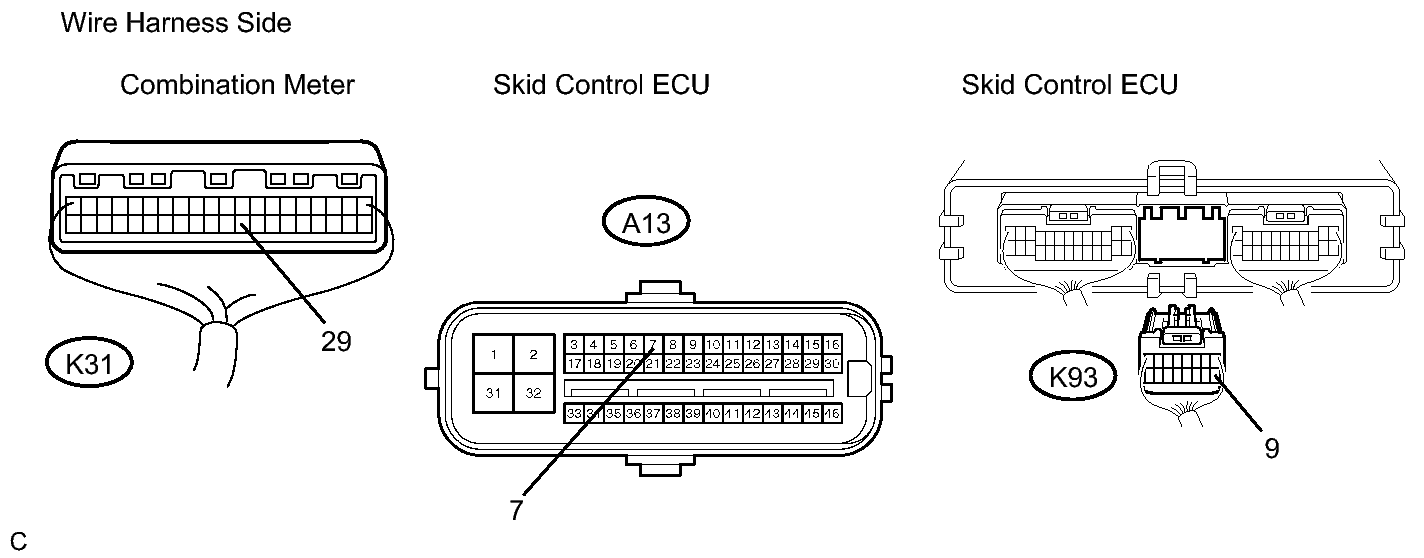

   Fig 4: Checking Harness And Connector Between Combination Meter & Skid Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   K31-29 - A13-7 *1	Always	Below 1 Ω
   K31-29 - K93-9 *2	Always	Below 1 Ω
   K31-29 - Body ground	Always	10 kΩ or higher

   *1: 1UR-FSE

   *2: 2GR-FSE

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE COMBINATION METER
