Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

  1. w/o Occupant Classification System

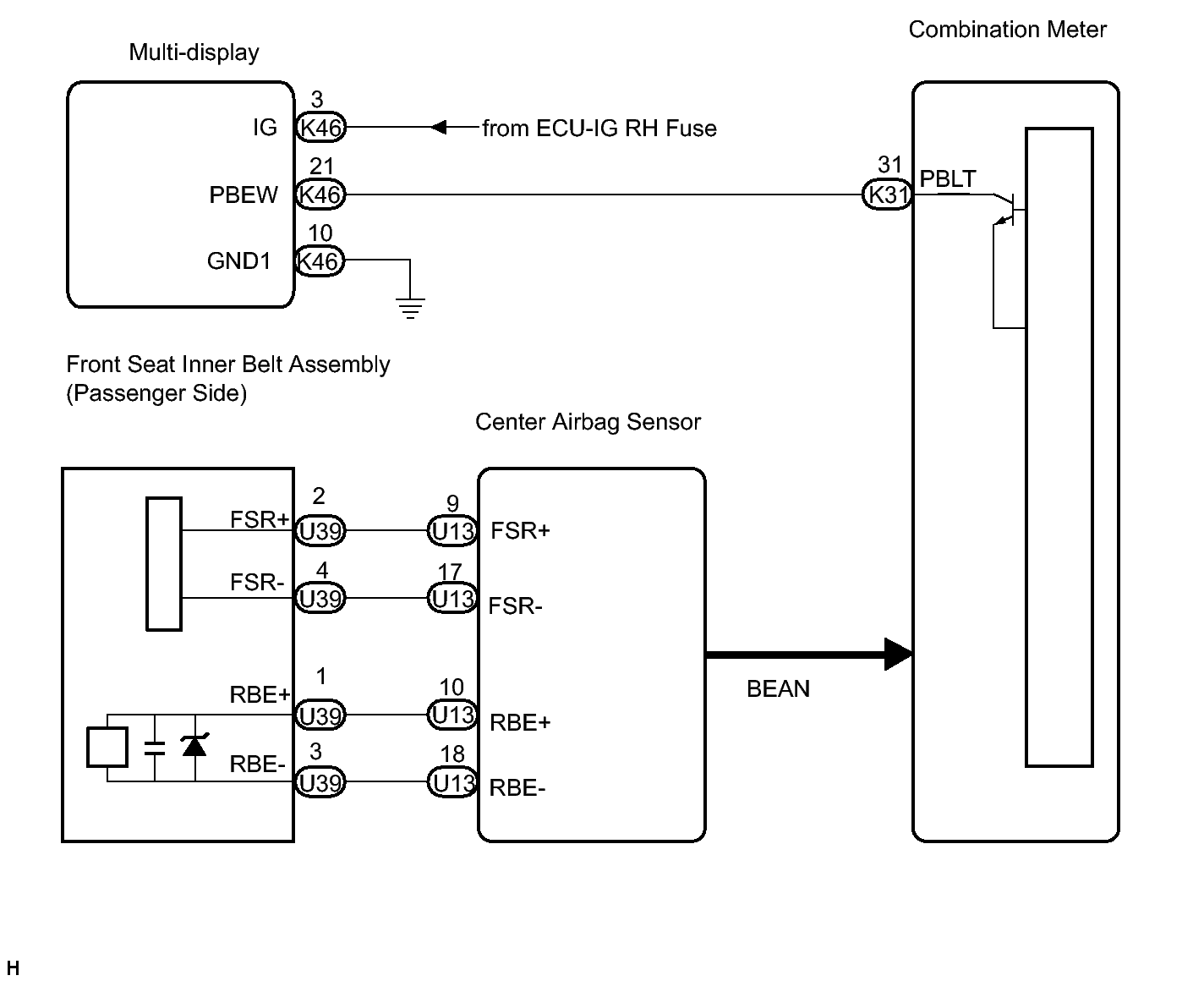

    Fig 1: Front Passenger Side Seat Belt Warning (w/o Occupant Classification System) - Wiring Diagram
    GTY101017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Occupant Classification System

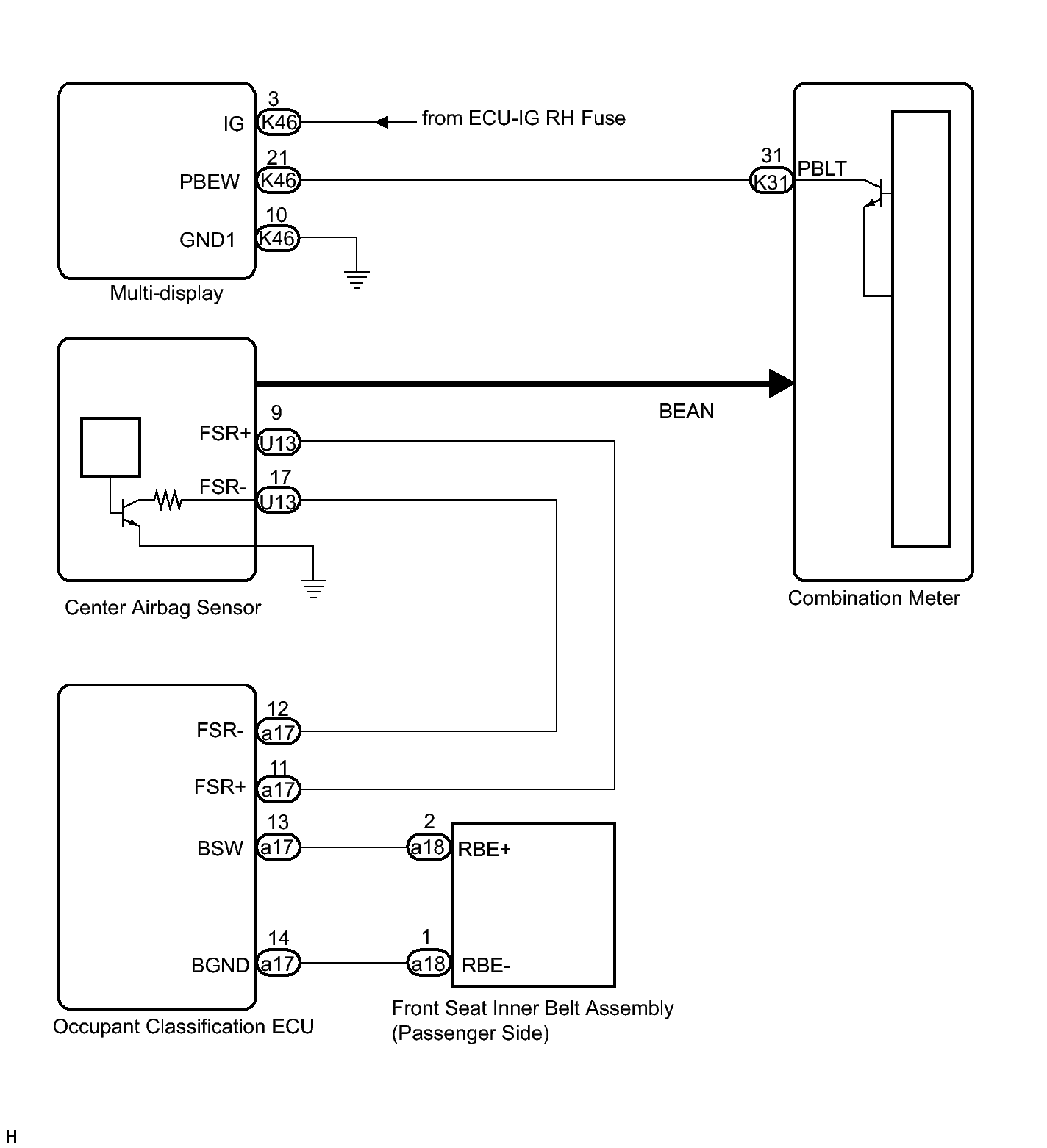

    Fig 2: Front Passenger Side Seat Belt Warning (w Occupant Classification System) - Wiring Diagram
    GTY102184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
