Entire Combination Meter Does Not Operate: Wiring Diagram

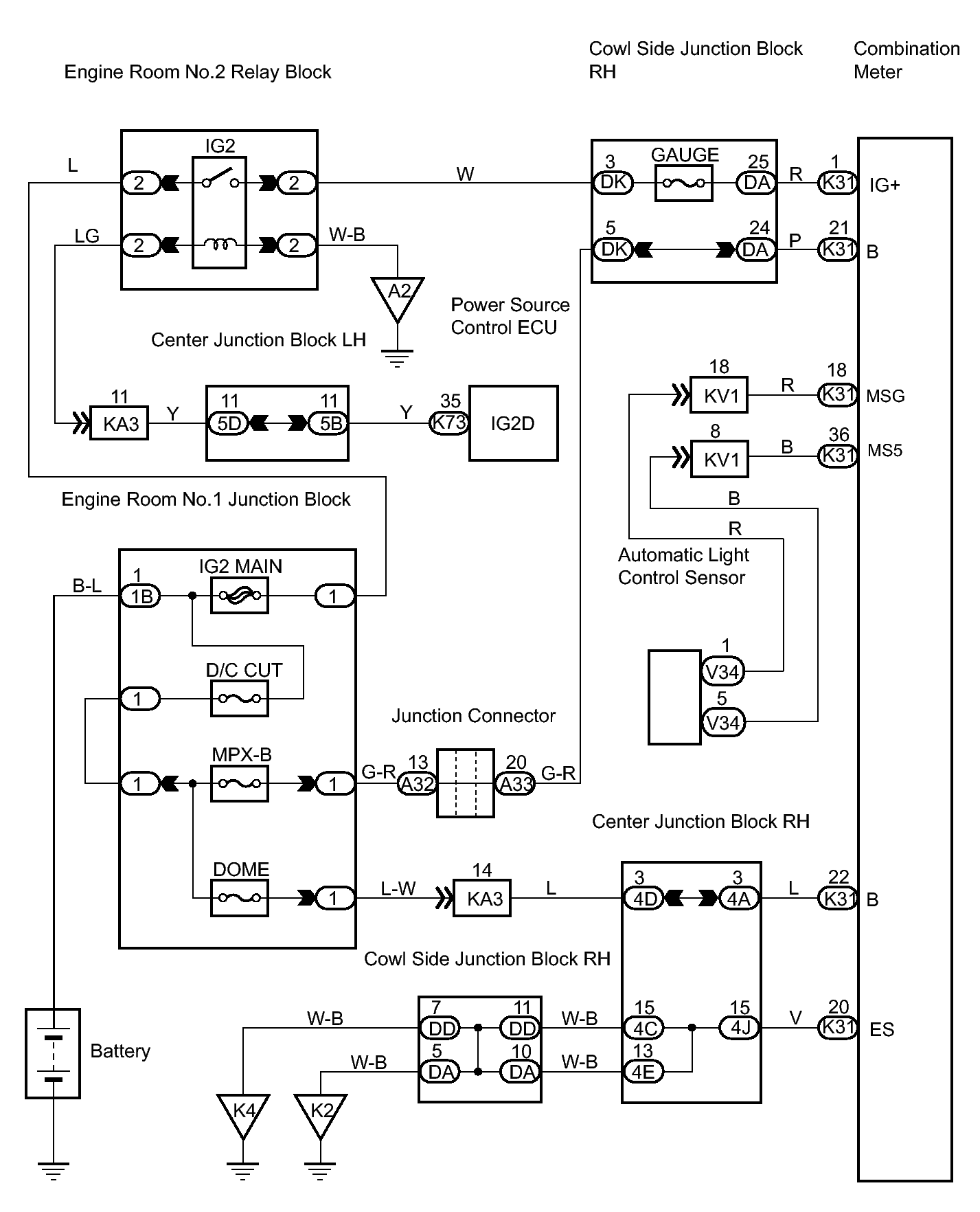

Fig 1: Combination Meter Power Source - Wiring Diagram

GTY100785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
