Driver Side Seat Belt Warning Light Does Not Operate: Wiring Diagram

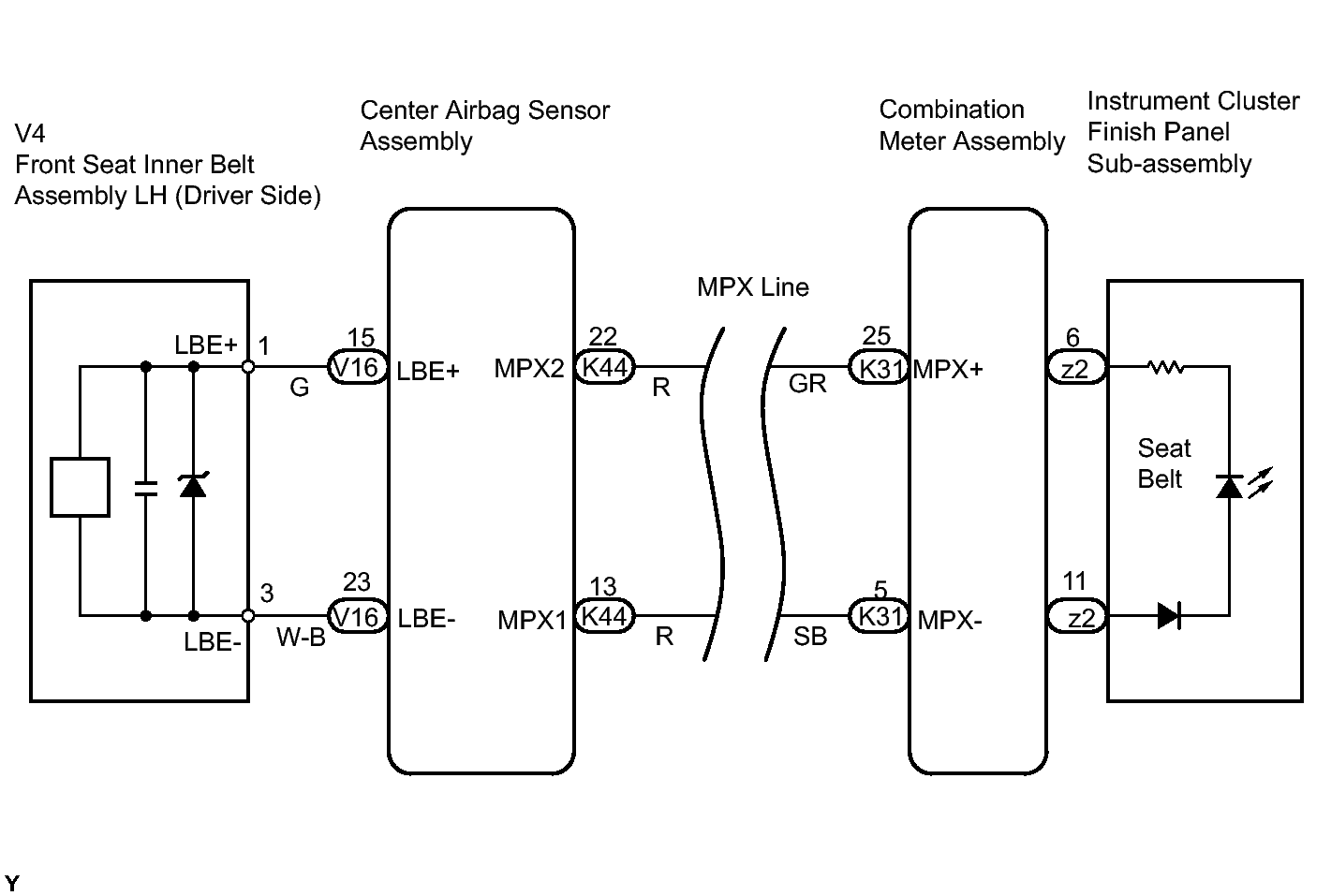

Fig 1: Driver Side Seat Belt Warning - Wiring Diagram

GTY103135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
