Instrument Panel Safety Pad: Disassembly: Disassembly

REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
1. Remove the screw and No. 1 side defroster nozzle duct.

  Fig 1: Identifying Side No. 2 Defroster Nozzle Duct Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
1. Remove the screw and No. 2 side defroster nozzle duct.

  Fig 2: Identifying Side No. 1 Defroster Nozzle Duct Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DEFROSTER NOZZLE ASSEMBLY
1. Remove the 3 screws and defroster nozzle assembly.

  Fig 3: Identifying Defroster Nozzle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 HEATER TO REGISTER DUCT
1. Remove the 3 screws and No. 1 heater to register duct.

  Fig 4: Identifying Heater To Register Duct With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 HEATER TO REGISTER DUCT
1. Remove the 3 screws and No. 3 heater to register duct.

  Fig 5: Identifying No. 1 Heater To Register Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 HEATER TO REGISTER DUCT
1. Remove the 4 screws and No. 2 heater to register duct.

  Fig 6: Locating No. 2 Heater To Register Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

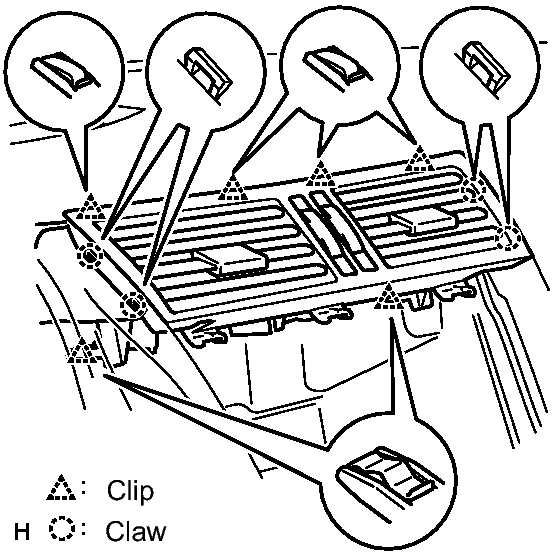

REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Using a screwdriver, disengage the 4 claws.

  Fig 7: Identifying Instrument Panel No. 2 Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Using a screwdriver, disengage the 6 clips and remove the No. 2 instrument panel register assembly.
  HINT:

  Tape the screwdriver tip before use.
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Using a screwdriver, disengage the 6 claws and remove the No. 1 instrument panel register assembly.

  Fig 8: Identifying Claws And Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Using a screwdriver, disengage the 2 claws.

  Fig 9: Identifying Instrument Panel No. 3 Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Using a screwdriver, disengage the 6 claws and remove the No. 3 instrument panel register assembly.
  HINT:

  Tape the screwdriver tip before use.
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY . Refer to REMOVAL - Step 5
REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
1. Using a screwdriver, disengage the 2 clips and 2 claws.

  Fig 10: Identifying Instrument Panel No. 2 Speaker Panel Sub-Assembly Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Remove the No. 1 instrument panel speaker panel sub-assembly.
REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
1. Using a screwdriver, disengage the 2 clips and 2 claws.

  Fig 11: Identifying Instrument Panel No. 1 Speaker Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Remove the No. 2 instrument panel speaker panel sub-assembly.
REMOVE NO. 1 SPEAKER HOLE COVER
1. Using a screwdriver, disengage the 4 clips and remove the No. 1 speaker hole cover.

  Fig 12: Identifying No. 1 Speaker Hole Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side) . Refer to REMOVAL - Step 4
REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) . Refer to REMOVAL - Step 4
REMOVE FRONT STEREO COMPONENT SPEAKER . Refer to REMOVAL - Step 2
REMOVE ENGINE SWITCH
for 2GR-FSE:. Refer to REMOVAL - Step 11

for 1UR-FSE:. Refer to REMOVAL - Step 12
