Meter / Gauge System
>>
Speed Signal Circuit
>>
Wiring Diagram
Speed Signal Circuit: Wiring Diagram
for 2GR-FE

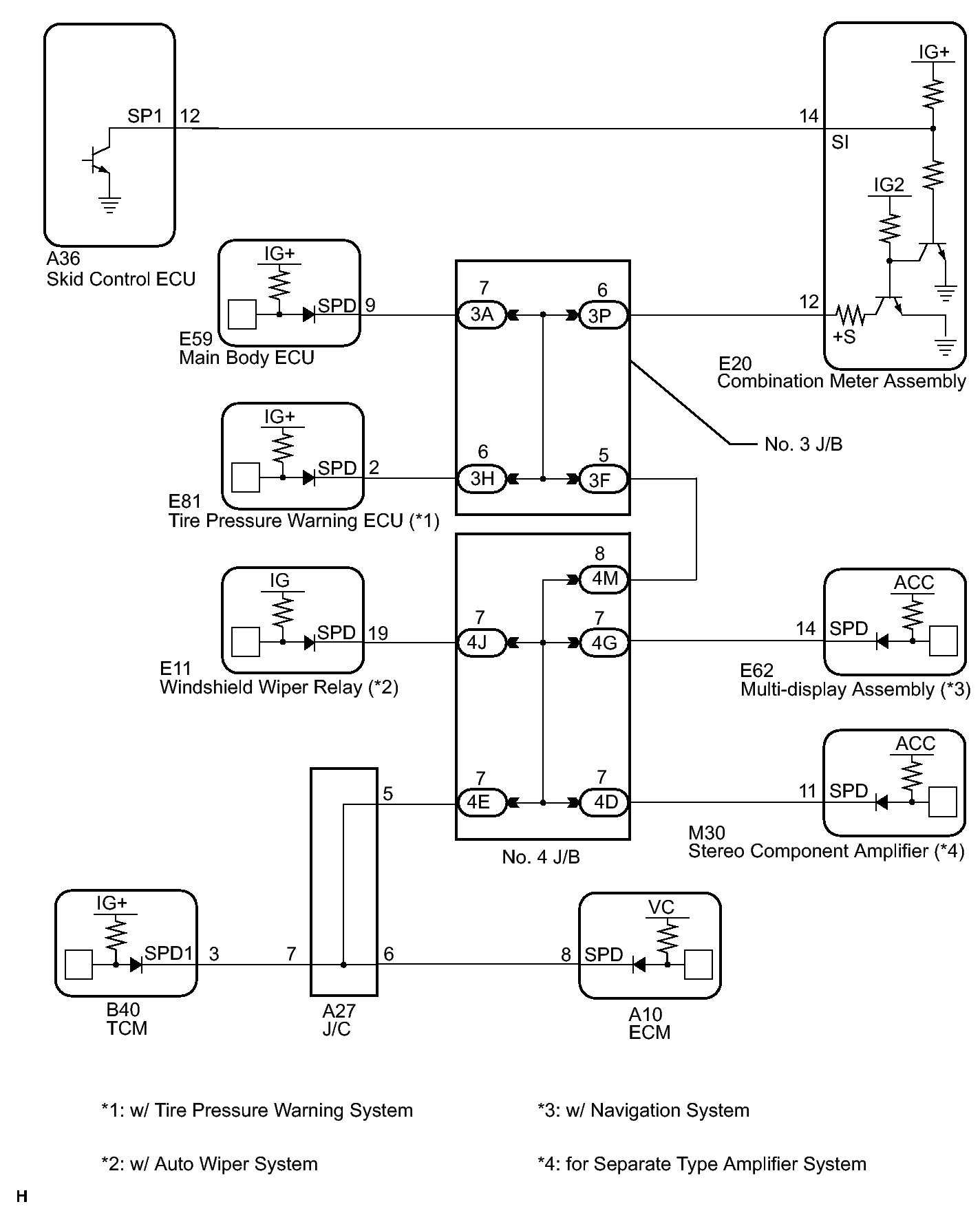

Fig 1: 2GR-FE Speed Signal - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
