Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

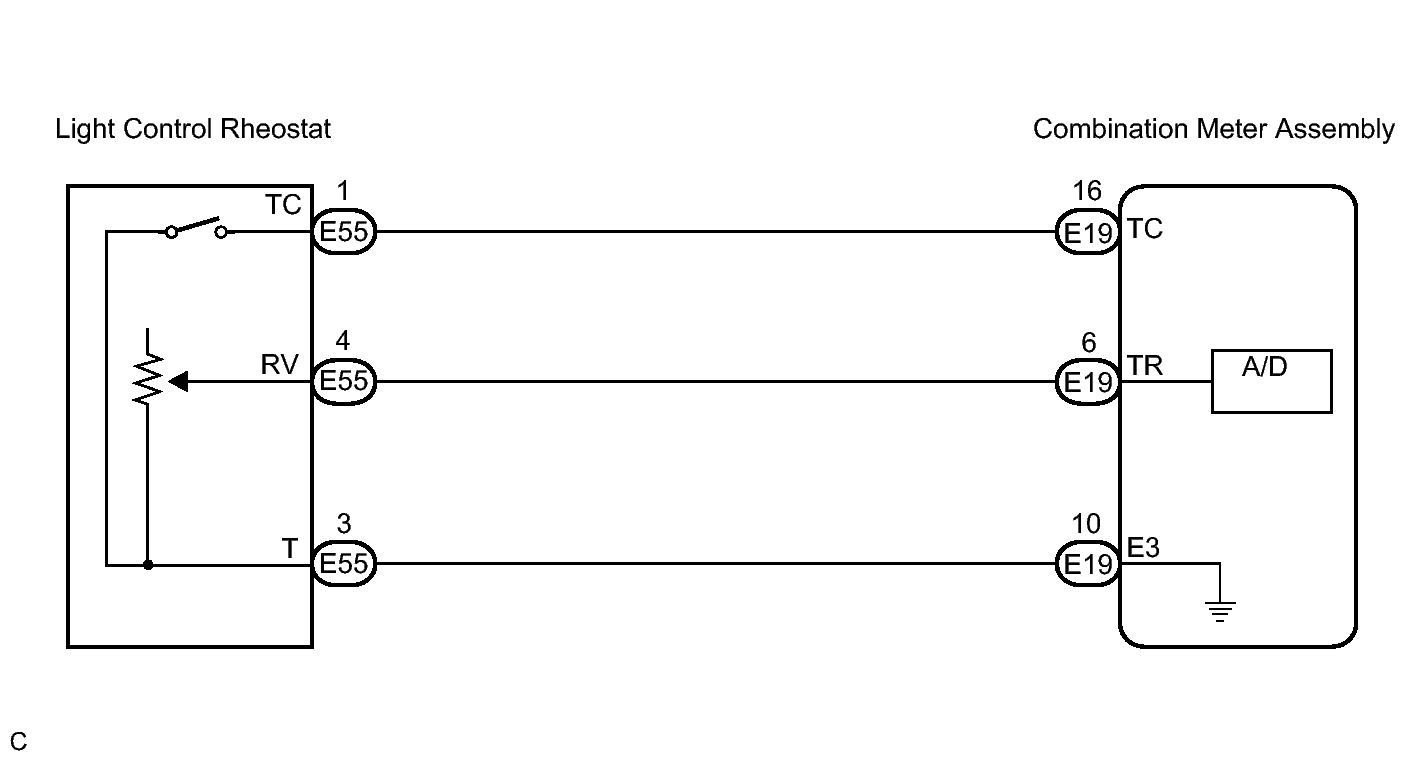

Fig 1: Light Control Rheostat - Wiring Diagram

GTY152079

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
