Fuel Receiver Gauge Malfunction: Wiring Diagram

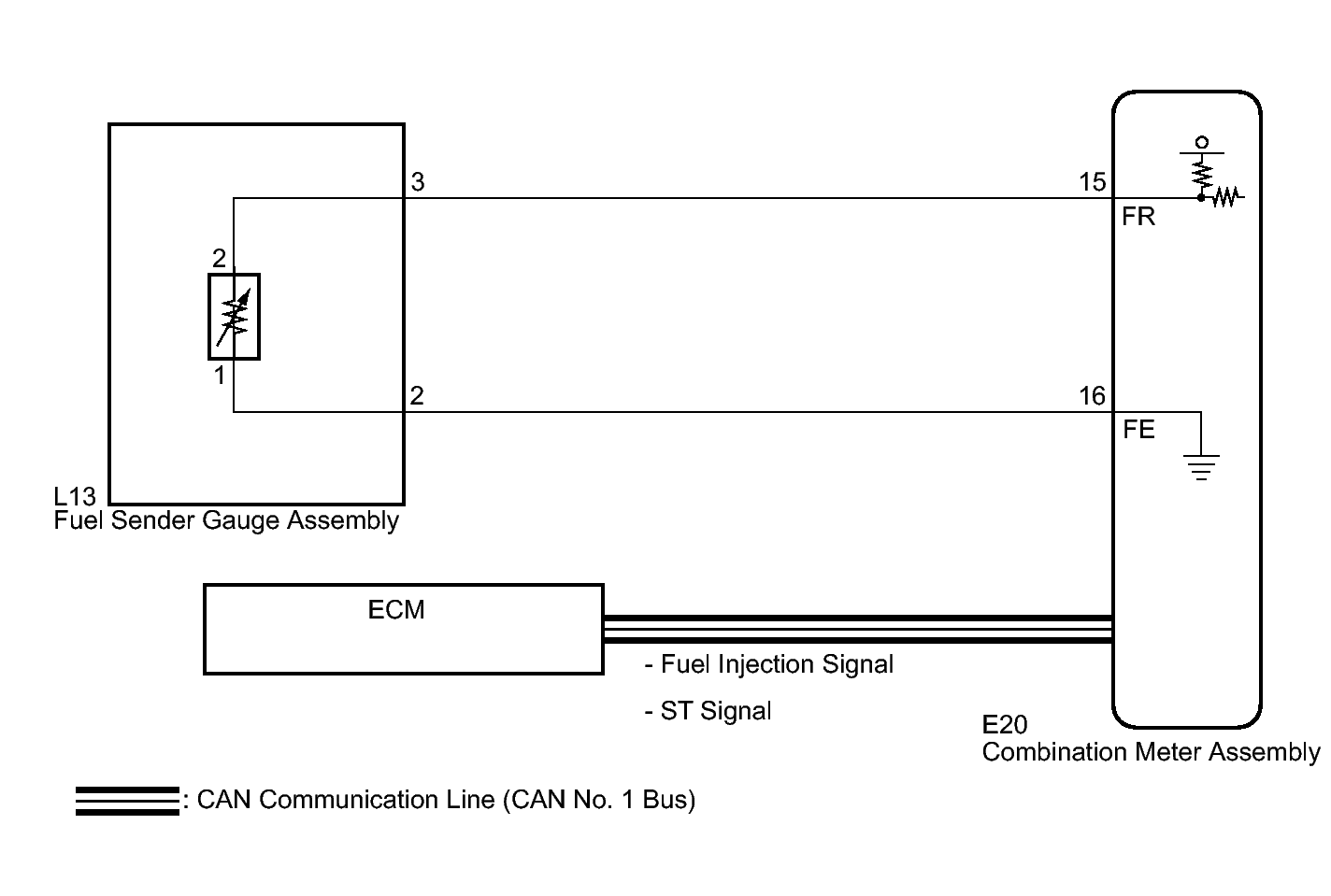

Fig 1: Fuel Receiver Gauge Malfunction - Wiring Diagram

GTY153308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
