Location of Connector Joining Wire Harness and Wire Harness: Overview

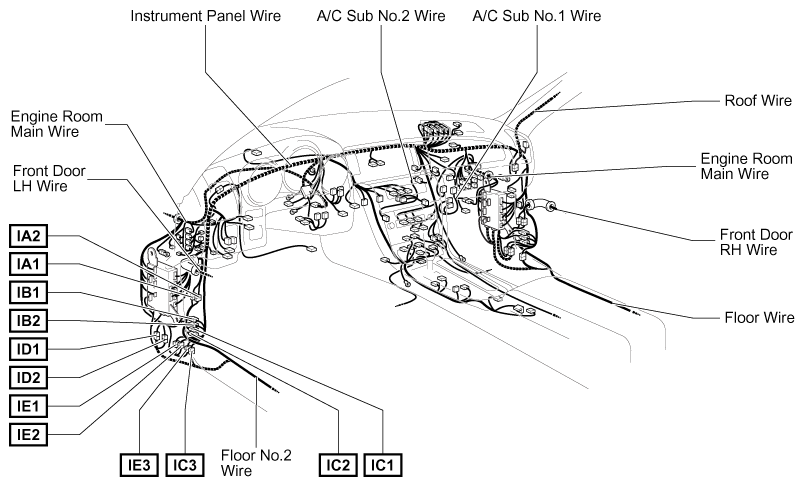

Fig 1: Locating Wire Harness Points
G07611916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

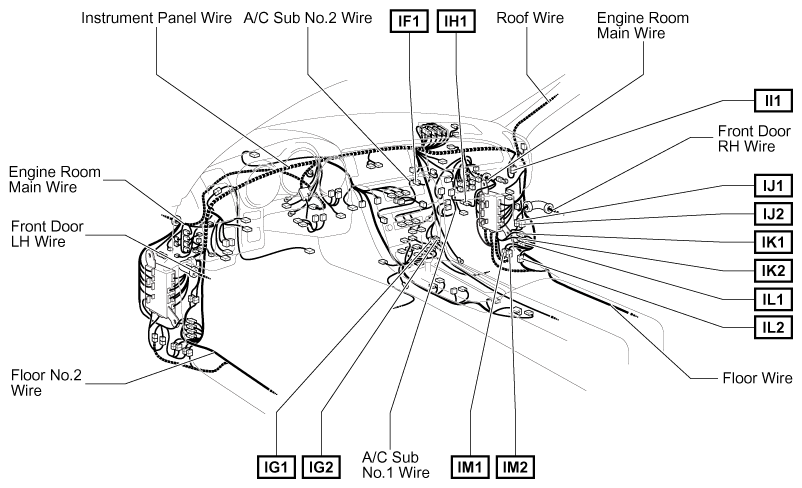

Fig 1: Locating Wire Harness Points
G07611918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
