Inspection Procedure

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from reconnecting it while you are working on the high-voltage system.
  • After disconnecting the service plug grip, wait for at least 5 minutes before touching any of the high-voltage connectors or terminals.

HINT:

At least 5 minutes is required to discharge the high-voltage capacitor inside the w/ converter inverter assembly.

  1. READ OUTPUT DTC (HV)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Select the following menu items: DIAGNOSIS / OBD/ MOBD / HV ECU / DTC.
    4. Read output DTCs. (See DTC CHECK / CLEAR )

      Result:

      The DTCs shown in the table below are output

      OUTPUT DTC (HV)

      DTC No. INF Code Detection Item
      P0A3F 243 Motor resolver circuit
      P0A40 500 Motor resolver output is out of normal range
      P0A41 245 Motor resolver malfunction (Low)
      P0A45 669 Interphase short in Rear Motor resolver circuit
      P0A46 671 Rear motor resolver output is out of normal range
      P0A47 670 Rear motor resolver malfunction (Low)
      P0A4B 253 Generator resolver circuit
      P0A4C 513 Generator resolver output is out of normal range
      P0A4D 255 Generator resolver malfunction (Low)
      P0A78 266, 280 Motor inverter function malfunction
      P0A94 558, 559, 588, 589 Boost converter circuit malfunction
      P0A95 123 High voltage fuse blown out
      P0AA1 226 SMR+ stuck closed
      P0AA2 227 SMR+ stuck open
      P0AA4 228 SMR- stuck closed
      P0AA5 229 SMR- stuck open
      P3004 803 High-current wiring malfunction

      HINT:

      • Turning the ignition switch to the ON position with the service plug grip and inverter cover removed causes interlock switch system DTC P0A0D-350 to be output.
      • P0A78-504 may be output due to a malfunction which causes the DTCs in the table above to be output. In this case, first troubleshoot the output DTCs in the table above. Then, perform a reproduction test to check that no DTCs are output.

    YES: GO TO  DIAGNOSTIC TROUBLE CODE CHART

    NO: GO TO NEXT STEP

  2. CHECK CONNECTION CONDITION OF MG ECU CONNECTOR (LOOSENESS AND POOR CONTACT)
    CAUTION: Be sure to wear insulated gloves.
    1. Turn the ignition switch off and remove the service plug grip. (See PRECAUTION )
      NOTE: Do not put the vehicle into the READY-on state with the service plug grip removed as this may cause a malfunction.
    2. Remove the inverter cover. (See INVERTER WITH CONVERTER )
      NOTE:
      • Wrap the interlock round terminal for the inverter cover with vinyl tape to prevent it from shorting to ground.
      • Prevent water in the reservoir tank from entering the inverter.
      • Removing the inverter cover causes the MG ECU board to be exposed. Therefore, temporarily install the inverter cover for each area to be inspected.
    3. Check the connections of the MG ECU connectors.

      OK:

      Connectors are connected securely and there is no poor connection.

    Fig 1: Checking Connection Condition Of MG ECU Connector (Looseness And Poor Contact)
    G04112034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: CONNECT SECURELY

    OK: GO TO NEXT STEP

  3. INSPECT HV RELAY ASSEMBLY (SMR2)
    CAUTION: Be sure to wear insulated gloves and protective goggles.
    1. Check that the service plug grip is removed.
    2. Remove the HV relay assembly from the vehicle. (See BATTERY SMART UNIT )
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      HV RELAY ASSEMBLY (SMR2) (1 OF 2)

      Tester Condition Specified Condition
      S47-1 - S44-1 Below 1 Ω
      (Apply auxiliary battery voltage between terminals (CON2 (S48-1) and GND (S48-4))
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      HV RELAY ASSEMBLY (SMR2) (2 OF 2)

      Tester Condition Specified Condition
      CON2 (S44-1) - GND (S44-4) 20 to 60 Ω at -35 to 80°C ( -31 to 176°F)

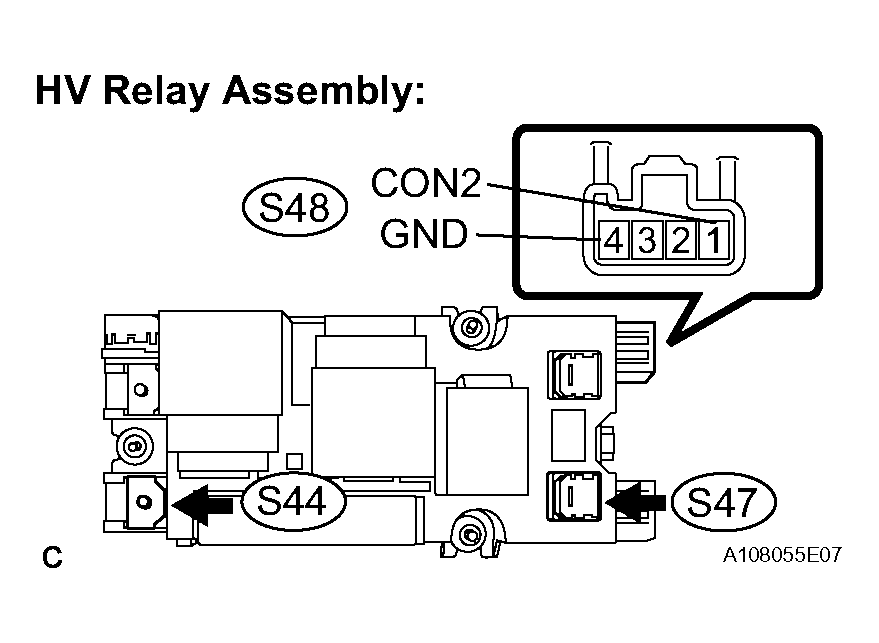

    Fig 2: Inspecting HV Relay Assembly (SMR2)
    G04112035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE HV RELAY ASSEMBLY

    OK: GO TO NEXT STEP

  4. INSPECT HV RELAY ASSEMBLY (SMR3)
    CAUTION: Be sure to wear insulated gloves.
    1. Check that the service plug grip is removed.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      HV RELAY ASSEMBLY (SMR3) (1 OF 2)

      Tester Condition Specified Condition
      S49-1 - S45-1 Below 1 Ω
      (Apply auxiliary battery voltage between terminals (CON3 (S48-2) and GND (S48-4))
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      HV RELAY ASSEMBLY (SMR3) (2 OF 2)

      Tester Condition Specified Condition
      CON3 (S44-1) - GND (S44-4) 20 to 60 Ω at -35 to 80°C ( -31 to 176°F)

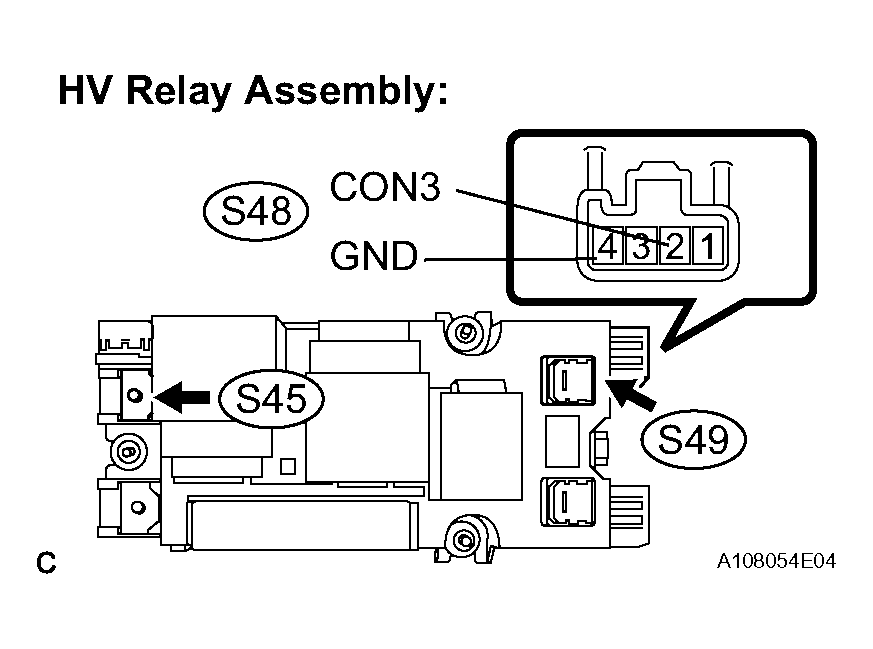

      Fig 3: Inspecting HV Relay Assembly (SMR3)
      G04112036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE HV RELAY ASSEMBLY

    OK: GO TO NEXT STEP

  5. CONFIRM INFORMATION (EXCLUSIVE INFO 4)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch to the ON position and check for HV system DTC P0A0D-350 by following the prompts on the intelligent tester screen.

      HINT:

      Turning the ignition switch to the ON position with the service plug grip and inverter cover removed causes interlock switch system DTCs to be output.

    3. Display freeze frame data corresponding to DTC P0A94 and select the information.
    4. Select INF code 556 and read "EXCLUSIVE INFO 4".

      Result:

      INFORMATION (EXCLUSIVE INFO 4)

      Displayed item in exclusive information 4 Proceed to
      -63 to 64 A
      65 to 128 B

    B: Go to step   8

    A: GO TO NEXT STEP

  6. CHECK HARNESS AND CONNECTOR (MG ECU - MOTOR RESOLVER)
    1. Disconnect the I22 connector from the MG ECU.
    2. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      Standard Voltage

      MG ECU - MOTOR RESOLVER (IGNITION SWITCH ON)

      Tester Connection Specified Condition
      MRF (I22-13) - Body ground Below 1 V
      MRFG (I22-23) - Body ground Below 1 V
      MSN (I22-21) - Body ground Below 1 V
      MSNG (I22-20) - Body ground Below 1V
      MCS (I22-19) - Body ground Below 1 V
      MCSG (I22-18) - Body ground Below 1 V
    3. Turn the ignition switch off.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - MOTOR RESOLVER (IGNITION SWITCH OFF) (1 OF 2)

      Tester Connection Specified Condition
      MRF (I22-13) - MRFG (I22-23) 7.65 to 10.2 Ω
      MSN (I22-21) - MSNG (I22-20) 12.6 to 16.8 Ω
      MCS (I22-19) - MCSG (I22-18) 12.6 to 16.8 Ω
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - MOTOR RESOLVER (IGNITION SWITCH OFF) (2 OF 2)

      Tester Connection Specified Condition
      MRF (I22-13) or MRFG (I22-23) - Body ground 10 kΩ or higher
      MSN (I22-21) or MSNG (I22-20) - Body ground 10 kΩ or higher
      MCS (I22-19) or MCSG (I22-18) - Body ground 10 kΩ or higher

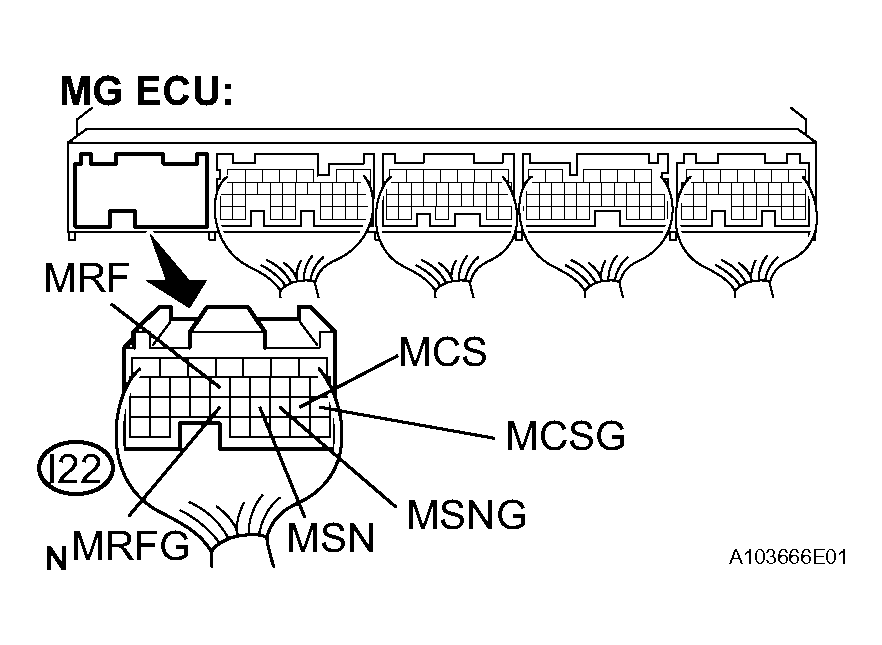

      Fig 4: Checking Harness And Connector (MG ECU - Motor Resolver)
      G04112037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   9

    OK: GO TO NEXT STEP

  7. CHECK HARNESS AND CONNECTOR (MG ECU - GENERATOR RESOLVER)
    1. Disconnect the I22 connector from the MG ECU.
    2. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      Standard Voltage

      MG ECU - GENERATOR RESOLVER (IGNITION SWITCH ON)

      Tester Connection Specified Condition
      GRF (I22-12) - Body ground Below 1 V
      GRFG (I22-23) - Body ground Below 1 V
      GSN (I22-11) - Body ground Below 1 V
      GSNG (I22-10) - Body ground Below 1V
      GCS (I22-9) - Body ground Below 1 V
      GCSG (I22-8) - Body ground Below 1 V

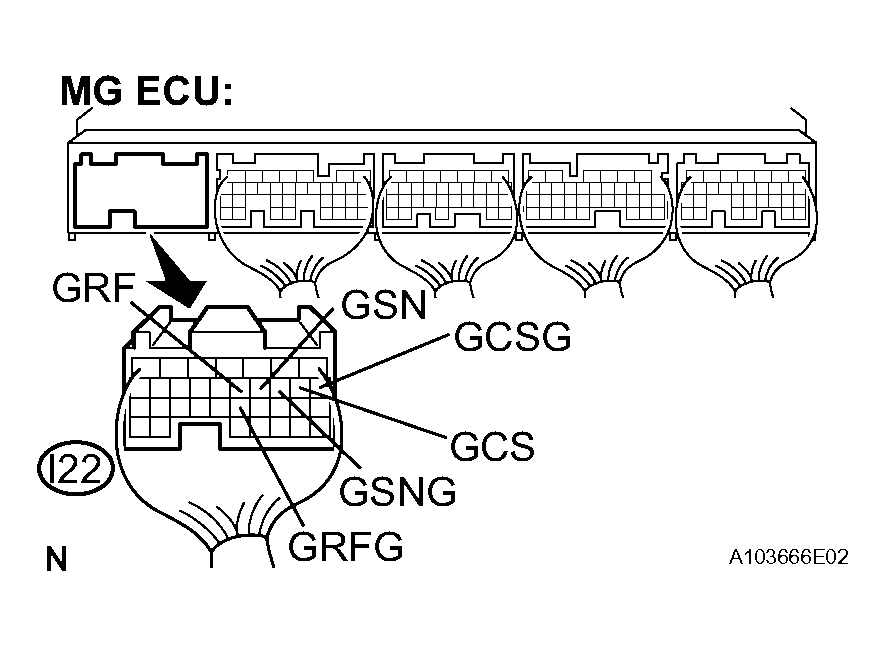

      Fig 5: Checking Harness And Connector (MG ECU - Generator Resolver)
      G04112038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the ignition switch off.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - GENERATOR RESOLVER (IGNITION SWITCH OFF) (1 OF 2)

      Tester Connection Specified Condition
      GRF (I22-12) - GRFG (I22-22) 7.65 to 10.2 Ω
      GSN (I22-11) - GSNG (I22-10) 12.6 to 16.8 Ω
      GCS (I22-9) - GCSG (I22-8) 12.6 to 16.8 Ω
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - GENERATOR RESOLVER (IGNITION SWITCH OFF) (2 OF 2)

      Tester Connection Specified Condition
      GRF (I22-12) or GRFG (I22-22) - Body ground 10 kΩ or higher
      GSN (I22-11) or GSNG (I22-10) - Body ground 10 kΩ or higher
      GCS (I22-9) or GCSG (I22-8) - Body ground 10 kΩ or higher

    NG: Go to step   10

    OK: REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

  8. CHECK HARNESS AND CONNECTOR (MG ECU - REAR MOTOR RESOLVER)
    1. Disconnect the I21connector from the MG ECU.
    2. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      Standard Voltage

      MG ECU - REAR MOTOR RESOLVER (IGNITION SWITCH ON)

      Tester Connection Specified Condition
      RRF (I21-21) - Body ground Below 1 V
      RRFG (I21-22) - Body ground Below 1 V
      RSN (I21-29) - Body ground Below 1 V
      RSNG (I21-30) - Body ground Below 1V
      RCS (I21-11) - Body ground Below 1 V
      RCSG (I21-23) - Body ground Below 1 V

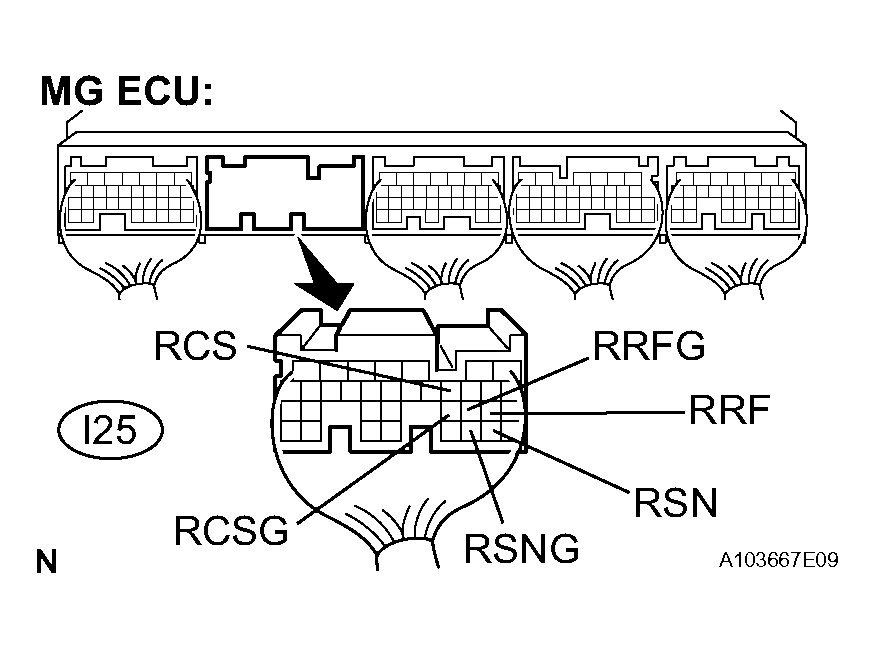

      Fig 6: Checking Harness And Connector (MG ECU - Rear Motor Resolver)
      G04112039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the ignition switch off.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - REAR MOTOR RESOLVER (IGNITION SWITCH OFF) (1 OF 2)

      Tester Connection Specified Condition
      RRF (I21-21) - Body ground 7.65 to 10.2 Ω
      RSN (I21-29) - Body ground 12.6 to 16.8 Ω
      RCS (I21-11) - Body ground 12.6 to 16.8 Ω
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MG ECU - REAR MOTOR RESOLVER (IGNITION SWITCH OFF) (2 OF 2)

      Tester Connection Specified Condition
      RRF (I21-21) or RRFG (I21-22) - Body ground 10 kΩ or higher
      RSN (I21-29) or RSNG (I21-30) - Body ground 10 kΩ or higher
      RCS (I21-11) or RCSG (I21-23) - Body ground 10 kΩ or higher

    NG: Go to step   11

    OK: REPLACE REAR TRACTION MOTOR W/TRANSAXLE ASSEMBLY

  9. INSPECT MOTOR RESOLVER
    1. Disconnect the M14 motor resolver connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      MOTOR RESOLVER

      Tester Connection Specified Condition
      MRF (M14-1) - MRFG (M14-4) 7.65 to 10.2 Ω
      MSN (M14-2) - MSNG (M14-5) 12.6 to 16.8 Ω
      MCS (M14-3) - MCSG (M14-6) 12.6 to 16.8 Ω
      Fig 7: Inspecting Motor Resolver
      G04112040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a megohmmeter, measure the insulation resistance according to the value(s) in the table below.

      Standard Resistance

      MOTOR RESOLVER (USING MEGOHMMETER)

      Tester Connection Specified Condition
      MRF (M14-1) - MSN (M14-2) 10 MΩ or higher
      MRF (M14-1) - MCS (M14-3) 10 MΩ or higher
      MSN (M14-2) - MCS (M14-3) 10 MΩ or higher
      MRFG (M14-4) - MSNG (M14-5) 10 MΩ or higher
      MRFG (M14-4) - MCSG (M14-6) 10 MΩ or higher
      MSNG (M14-5) - MCSG (M14-6) 10 MΩ or higher
      Each terminal listed above - Transaxle housing 10 MΩ or higher

    NG: REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

  10. INSPECT GENERATOR RESOLVER
    1. Remove the w/ converter inverter assembly. (See INVERTER WITH CONVERTER )
    2. Disconnect the M13 generator resolver connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      GENERATOR RESOLVER

      Tester Connection Specified Condition
      GRF (M13-1) - GRFG (M13-6) 7.65 to 10.2 Ω
      GSN (M13-2) - GSNG (M13-7) 12.6 to 16.8 Ω
      GCS (M13-3) - GCSG (M13-8) 12.6 to 16.8 Ω
    4. Using a megohmmeter, measure the insulation resistance according to the value(s) in the table below.

      Standard Resistance

      GENERATOR RESOLVER (USING MEGOHMMETER)

      Tester Connection Specified Condition
      GRF (M13-1) - GSN (M13-2) 10 MΩ or higher
      GRF (M13-1) - GCS (M13-3) 10 MΩ or higher
      GSN (M13-2) - GCS (M13-3) 10 MΩ or higher
      GRFG (M13-6) - GSNG (M13-7) 10 MΩ or higher
      GRFG (M13-6) - GCSG (M13-8) 10 MΩ or higher
      GSNG (M13-7) - GCSG (M13-8) 10 MΩ or higher
      Each terminal listed above - Transaxle housing 10 MΩ or higher
      Fig 8: Inspecting Generator Resolver
      G04112041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

  11. INSPECT REAR MOTOR RESOLVER
    1. Disconnect the M18 rear motor resolver connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      REAR MOTOR RESOLVER

      Tester Connection Specified Condition
      RRF (M18-1) - RRFG (M18-4) 7.65 to 10.2 Ω
      RSN (M18-2) - RSNG (M18-5) 12.6 to 16.8 Ω
      RCS (M18-3) - RCSG (M18-6) 12.6 to 16.8 Ω
    3. Using a megohmmeter, measure the insulation resistance according to the value(s) in the table below.

      Standard Resistance

      REAR MOTOR RESOLVER (USING MEGOHMMETER)

      Tester Connection Specified Condition
      RRF (M18-1) - RSN (M18-2) 10 MΩ or higher
      RRF (M18-1) - RCS (M18-3) 10 MΩ or higher
      RSN (M18-2) - RCS (M18-3) 10 MΩ or higher
      RRFG (M18-4) - RSNG (M18-5) 10 MΩ or higher
      RRFG (M18-4) - RCSG (M18-6) 10 MΩ or higher
      RSNG (M18-5) - RCSG (M18-6) 10 MΩ or higher
      Each terminal listed above - Transaxle housing 10 MΩ or higher
      Fig 9: Inspecting Rear Motor Resolver
      G04112042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE REAR TRACTION MOTOR W/ TRANSAXLE ASSEMBLY

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
