Inspection Procedure

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from reconnecting it while you are working on the high-voltage system.
  • After disconnecting the service plug grip, wait for at least 5 minutes before touching any of the high-voltage connectors or terminals.

HINT:

At least 5 minutes is required to discharge the high-voltage capacitor inside the w/ converter inverter assembly.

  1. CHECK HYBRID VEHICLE CONTROL ECU
    1. Connect the oscilloscope to the HV control ECU terminals specified in the table below and check the waveform.
      HYBRID VEHICLE CONTROL ECU

      Item Contents
      Terminal HTM+ (H34-18) - E1 (I31-5)
      HTM- (H34-17) - E1 (H31-5)
      Equipment Setting 1 V/DIV, 2 ms/DIV
      1 V/DIV, 200 ms/DIV
      Condition Ignition switch ON

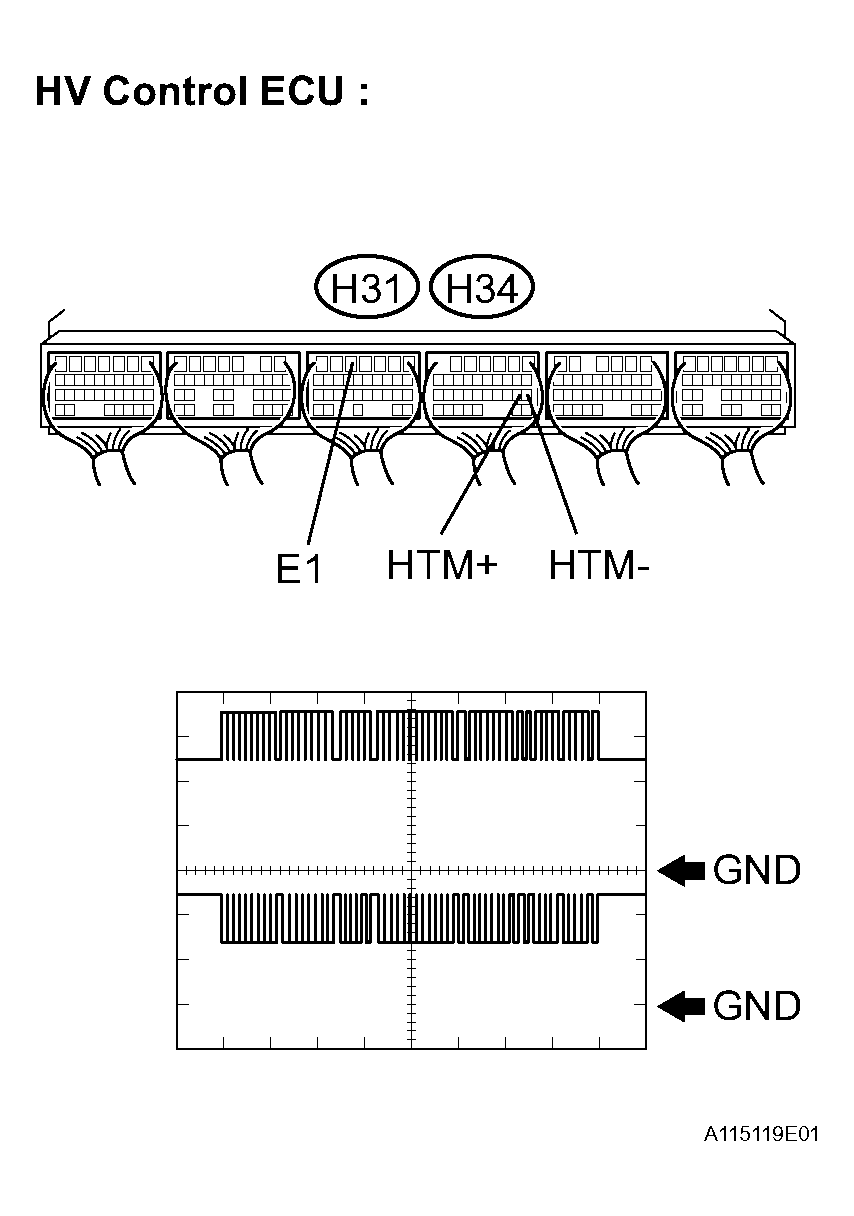

      Fig 1: Checking Hybrid Vehicle Control ECU
      G04112385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      The waveform appears as shown in the illustration.

      HINT:

      The waveform varies depending on the contents of communication.

    NG: Go to step   4

    OK: GO TO NEXT STEP

  2. CHECK HYBRID VEHICLE CONTROL ECU
    1. Connect the oscilloscope to the HV control ECU terminals specified in the table below and check the waveform.
      HYBRID VEHICLE CONTROL ECU

      Item Contents
      Terminal CLK+ (H34-22) - E1 (H31-5)
      CLK- (H34-29) - E1 (H31-5)
      Equipment Setting 1 V/DIV, 1 ms/DIV
      Condition READY-on state

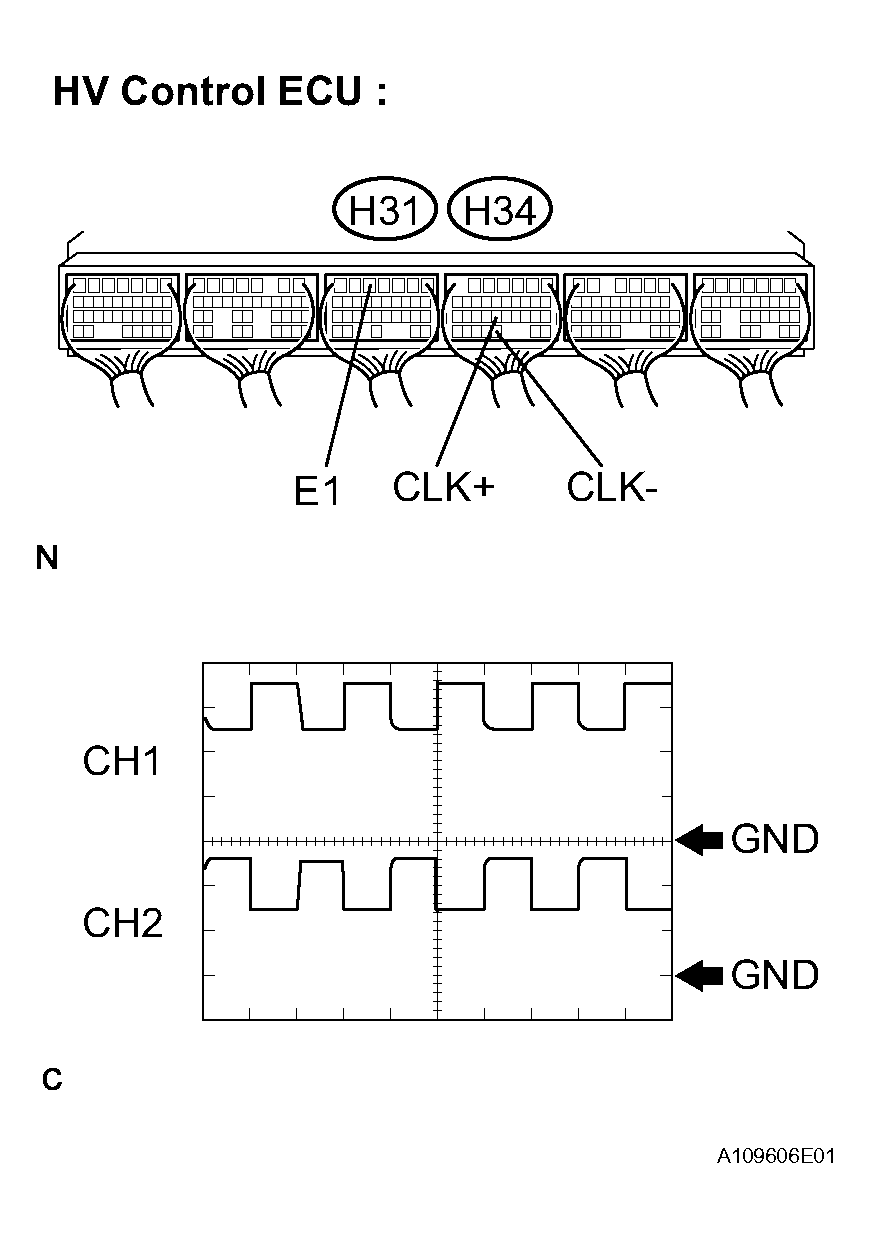

      Fig 2: Checking Hybrid Vehicle Control ECU
      G04112386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      The waveform appears as shown in the illustration.

    NG: Go to step   5

    OK: GO TO NEXT STEP

  3. CHECK HYBRID VEHICLE CONTROL ECU
    1. Connect the oscilloscope to the HV control ECU terminals specified in the table below and check the waveform.
      HYBRID VEHICLE CONTROL ECU

      Item Contents
      Terminal REQ+ (H34-23) - E1 (H31-5)
      REQ- (H34-30) - E1 (H31-5)
      Equipment Setting 1 V/DIV, 1 ms/DIV
      Condition READY ON

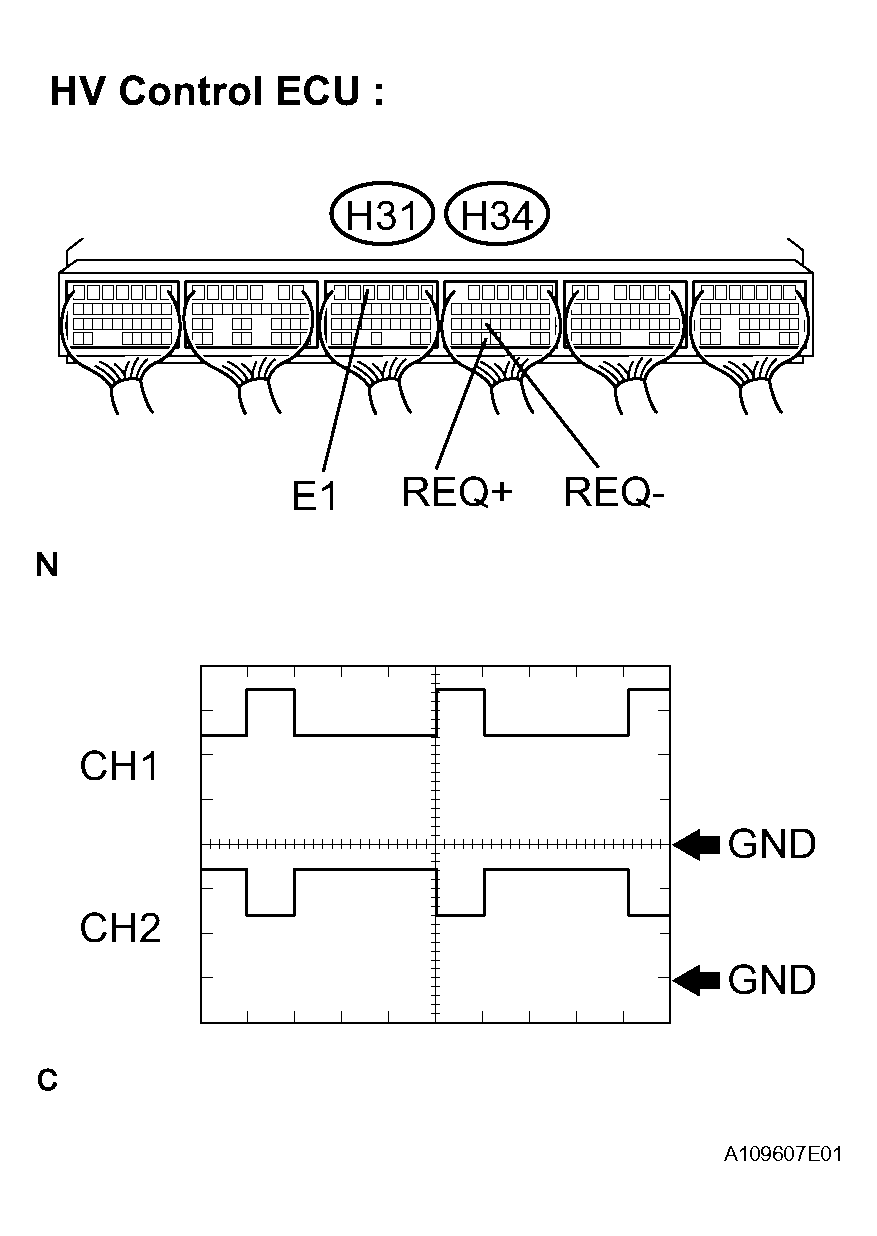

      Fig 3: Checking Hybrid Vehicle Control ECU
      G04112387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      The waveform appears as shown in the illustration.

    NG: Go to step   6

    OK: REPLACE W/ CONVERTER INVERTER ASSEMBLY

  4. CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - MG ECU)
    CAUTION: Be sure to wear insulated gloves.
    1. Turn the ignition switch off and remove the service plug grip. (See PRECAUTION )
    2. Disconnect the H34 connector from the HV control ECU.
    3. Remove the inverter cover. (See INVERTER WITH CONVERTER )
      NOTE:
      • Wrap the interlock round terminal for the inverter cover with vinyl tape to prevent it from shorting to ground.
      • Be sure to prevent water in the reservoir tank from entering the inverter.
      • Removing the inverter cover causes the MG ECU board to be exposed. Therefore, temporarily install the inverter cover for each area to be inspected.
    4. Disconnect the I21 connector from the MG ECU.
    5. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      HINT:

      Turning the ignition switch to the ON position with the service plug grip and inverter cover removed causes interlock switch system DTCs to be output.

      Standard Voltage

      HV CONTROL ECU - MG ECU (VOLTAGE)

      Tester Connection Specified Condition
      HTM+ (H34-18) - Body ground Below 1 V
      HTM- (H34-17) - Body ground Below 1 V
    6. Turn the ignition switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      HV CONTROL ECU - MG ECU (CHECK FOR OPEN)

      Tester Connection Specified Condition
      HTM+ (H34-18) - HTM+ (I21-12) Below 1 Ω
      HTM- (H34-17) - HTM- (I21-13) Below 1 Ω

      Standard Resistance (Check for short)

      HV CONTROL ECU - MG ECU (CHECK FOR SHORT)

      Tester Connection Specified Condition
      HTM+ (H34-18) or HTM+ (I21-12) - Body ground 10 kΩ or higher
      HTM- (H34-17) or HTM- (I21-13) - Body ground 10 kΩ or higher

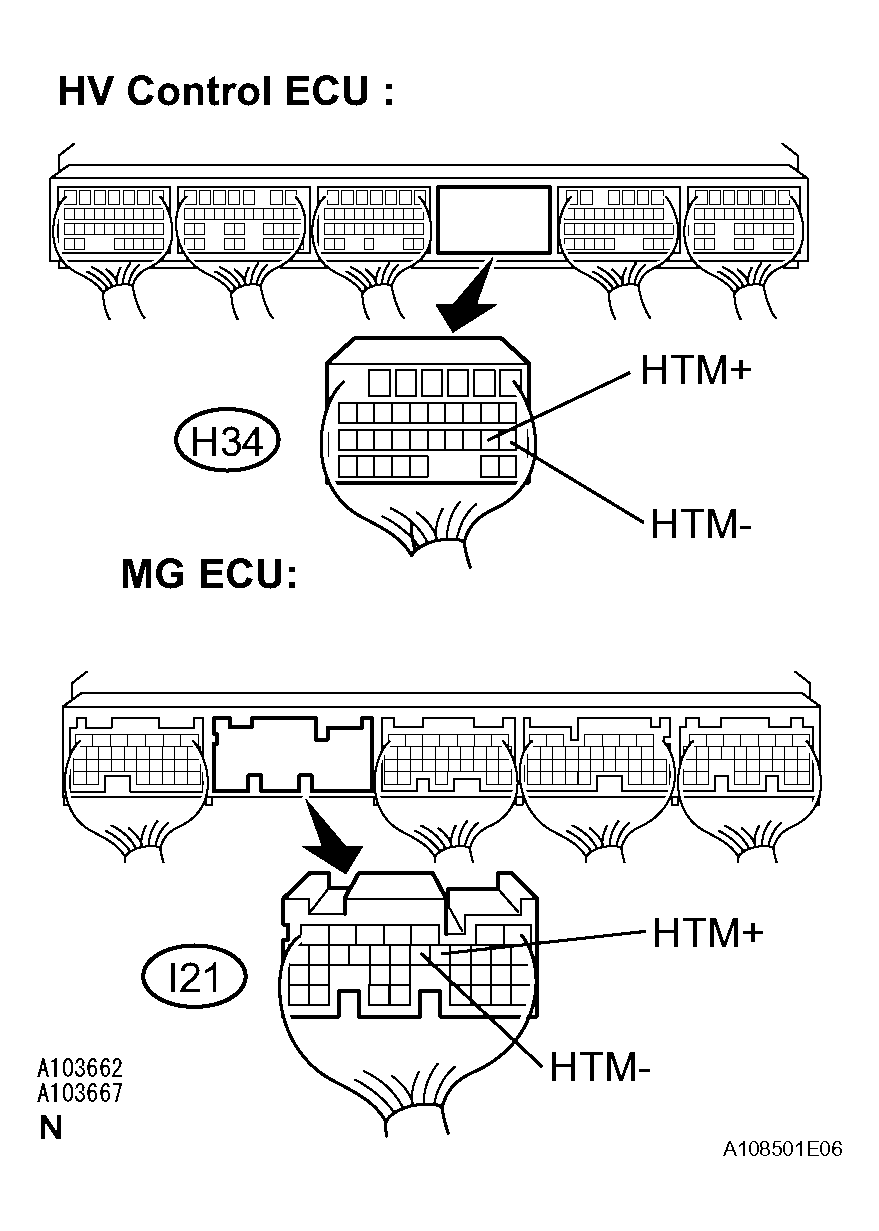

      Fig 4: Checking Harness And Connector (HV Control ECU - MG ECU) (1 Of 3)
      G04112388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE HYBRID VEHICLE CONTROL ECU

  5. CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - MG ECU)
    CAUTION: Be sure to wear insulated gloves.
    1. Turn the ignition switch off and remove the service plug grip. (See PRECAUTION )
    2. Disconnect the H34 connector from the HV control ECU.
    3. Remove the inverter cover. (See INVERTER WITH CONVERTER )
      NOTE:
      • Wrap the interlock round terminal for the inverter cover with vinyl tape to prevent it from shorting to ground.
      • Be sure to prevent water in the reservoir tank from entering the inverter.
      • Removing the inverter cover causes the MG ECU board to be exposed. Therefore, temporarily install the inverter cover for each area to be inspected.
    4. Disconnect the I21 connector from the MG ECU.
    5. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      HINT:

      Turning the ignition switch to the ON position with the service plug grip and inverter cover removed causes interlock switch system DTCs to be output.

      Standard Voltage

      HV CONTROL ECU - MG ECU (VOLTAGE)

      Tester Connection Specified Condition
      CLK+ (H34-22) - Body ground Below 1 V
      CLK- (H34-29) - Body ground Below 1 V
    6. Turn the ignition switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      HV CONTROL ECU - MG ECU (CHECK FOR OPEN)

      Tester Connection Specified Condition
      CLK+ (H34-22) - CLK+ (I21-17) Below 1 Ω
      CLK- (H34-29) - CLK- (I21-18) Below 1 Ω

      Standard Resistance (Check for short)

      HV CONTROL ECU - MG ECU (CHECK FOR SHORT)

      Tester Connection Specified Condition
      CLK+ (H34-22) or CLK+ (I21-17) - Body ground 10 kΩ or higher
      CLK- (H34-29) or CLK- (I21-18) - Body ground 10 kΩ or higher

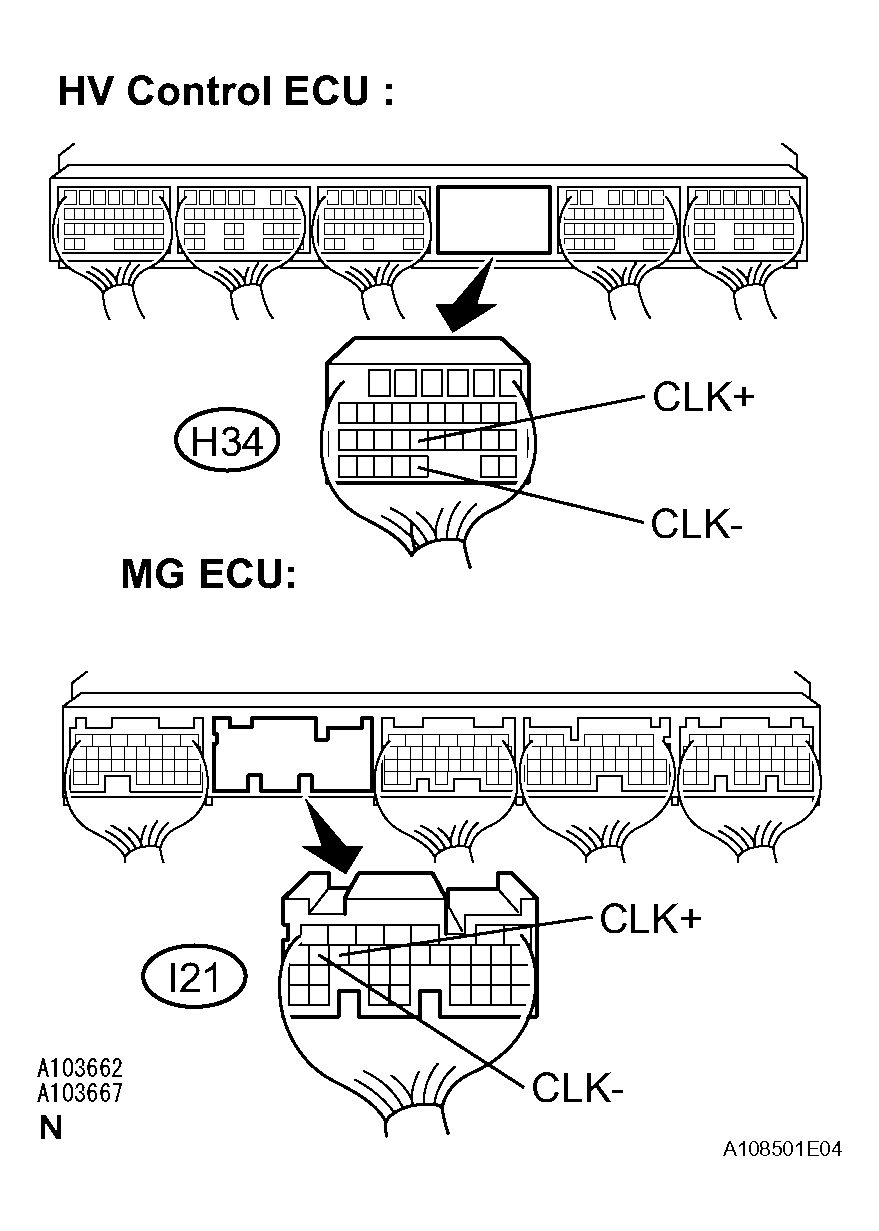

      Fig 5: Checking Harness And Connector (HV Control ECU - MG ECU) (2 Of 3)
      G04112389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE HYBRID VEHICLE CONTROL ECU

  6. CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - MG ECU)
    CAUTION: Be sure to wear insulated gloves.
    1. Turn the ignition switch off and remove the service plug grip. (See PRECAUTION )
    2. Disconnect the H34 connector from the HV control ECU.
    3. Remove the inverter cover. (See INVERTER WITH CONVERTER )
      NOTE:
      • Wrap the interlock round terminal for the inverter cover with vinyl tape to prevent it from shorting to ground.
      • Be sure to prevent water in the reservoir tank from entering the inverter.
      • Removing the inverter cover causes the MG ECU board to be exposed. Therefore, temporarily install the inverter cover for each area to be inspected.
    4. Disconnect the I21 connector from the MG ECU.
    5. Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.

      HINT:

      Turning the ignition switch to the ON position with the service plug grip and inverter cover removed causes interlock switch system DTCs to be output.

      Standard Voltage

      HV CONTROL ECU - MG ECU (VOLTAGE)

      Tester Connection Specified Condition
      REQ+ (H34-23) - Body ground Below 1 V
      REQ- (H34-30) - Body ground Below 1 V
    6. Turn the ignition switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      HV CONTROL ECU - MG ECU (CHECK FOR OPEN)

      Tester Connection Specified Condition
      REQ+ (H34-23) - REQ+ (I21-15) Below 1 Ω
      REQ- (H34-30) - REQ- (I21-16) Below 1 Ω

      Standard Resistance (Check for short)

      HV CONTROL ECU - MG ECU (CHECK FOR SHORT)

      Tester Connection Specified Condition
      REQ+ (H34-23) or REQ+ (I21-15) - Body ground 10 kΩ or higher
      REQ+ (H34-23) or REQ+ (I21-15) - Body ground 10 kΩ or higher

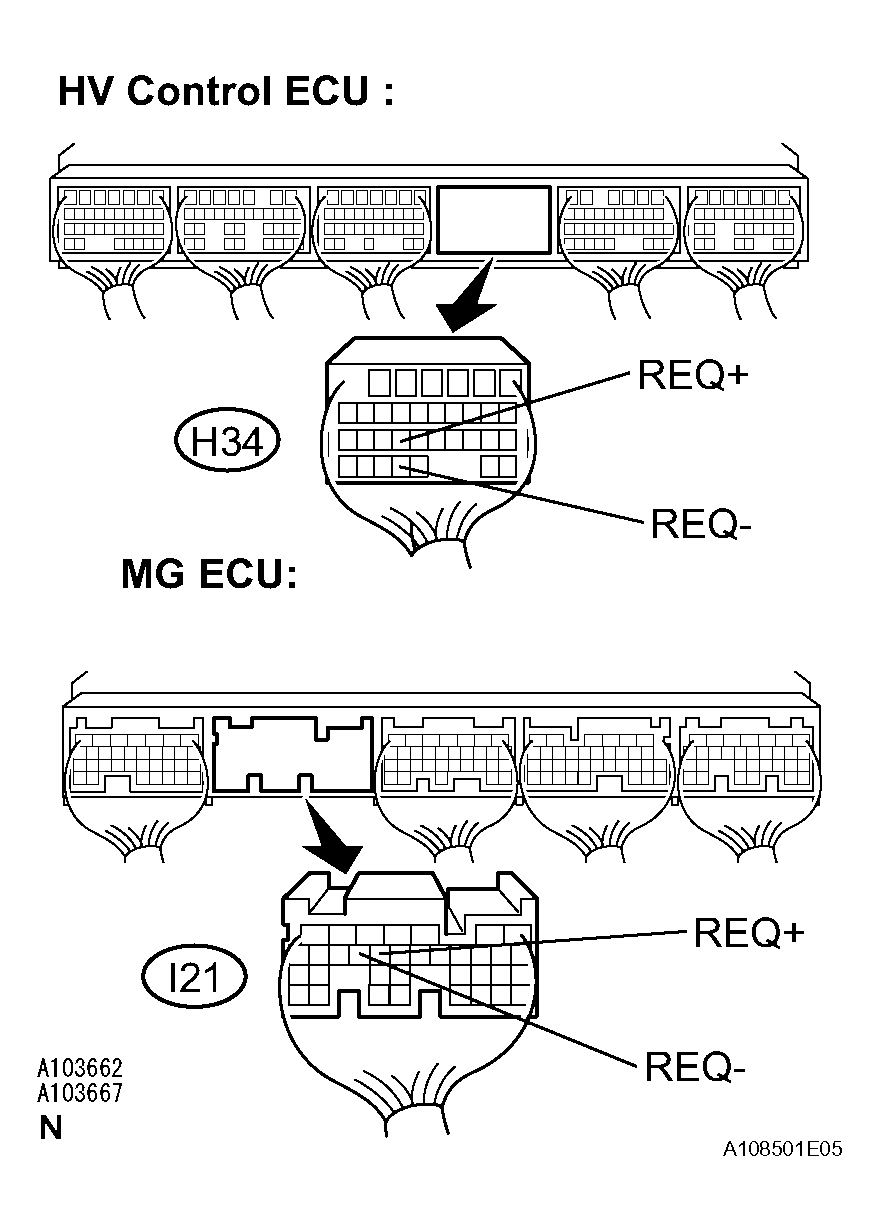

      Fig 6: Checking Harness And Connector (HV Control ECU - MG ECU) (3 Of 3)
      G04112390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE HYBRID VEHICLE CONTROL ECU
