Roof Headlining: Installation

  1. INSTALL ROOF WIRE AND RADIO ANTENNA CORD
    1. Attach the roof wire, radio antenna cord and washer hose along the adhesive part.

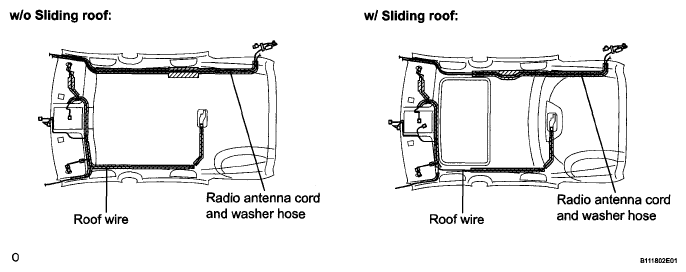

      Fig 1: Identifying Radio Antenna Cord And Washer Hose With Roof Wire
      G05281760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Attach the roof wire, radio antenna cord and washer hose securely.

      HINT:

      Be careful that dirt or foreign objects do not stick to the adhesive part when removing the peeling paper.

  2. INSTALL ROOF HEADLINING ASSEMBLY
    1. Place the roof headlining to the vehicle from the back door side.
    2. Engage the 2 fasteners and 3 clips, (w/o sliding roof)
      Fig 2: Identifying Roof Headlining Assembly With Fastener
      G05281759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 3 clips, (w/ sliding roof)
    4. Install the sunroof opening trim molding, (w/ sliding roof)
    5. Connect the sliding roof drive gear connector, (w/ sliding roof)
    6. Connect the washer hose. Connect the radio antenna cord connector and engage the clamps to the rear quarter pillar RH.
    7. Connect the roof wire connector and engage the clamps to the front pillar LH.
    8. Connect the washer hose. Connect the radio antenna cord connector and engage the clamps to the front pillar RH.
    9. Install the radio antenna cord connector bolt to the front pillar RH.
  3. INSTALL VISOR HOLDER
  4. INSTALL LH VISOR ASSEMBLY
    1. Connect the connector.
    2. Install the visor assembly with the 2 screws.
    3. Engage the 4 claws and install the visor bracket cover.
  5. INSTALL RH VISOR ASSEMBLY
  6. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the connector.
    2. Install the map light with the 4 screws.
      Fig 3: Identifying Map Light Screws
      G05281756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the claws and install the 2 caps.
      Fig 4: Identifying Map Light Claws
      G05281764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o sliding roof:

      Engage the 6 claws and install the lens cover.

      Fig 5: Identifying Lens Cover Claws (W/O Sliding Roof)
      G05281765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/ sliding roof:

      Engage the 8 claws and install the lens cover.

  7. INSTALL ROOM LIGHT ASSEMBLY NO. 1
    1. Connect the connector.
    2. Engage the 2 claws and 2 springs, and install the room light assembly No. 1.
      Fig 6: Identifying Lens Cover Claws (W/ Sliding Roof)
      G05281766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws and install the lens cover.
  8. INSTALL RAIN SENSOR (W/ RAIN SENSOR)  (See INSTALLATION )
  9. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Install the assist grip sub-assembly with the 2 screws.
      Fig 7: Identifying Lens Cover Claws
      G05205627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 6 claws and install the 2 assist grip covers.

      HINT:

      Use the same procedure for the other 3 assist grips.

      Fig 8: Identifying Assist Grip Covers Claws
      G05281768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL TELEVISION DISPLAY ASSEMBLY (W/ TELEVISION DISPLAY)  (See INSTALLATION )
  11. INSTALL TELEVISION BASE (W/ TELEVISION DISPLAY)  (See INSTALLATION )
  12. INSTALL ROOF SIDE LH GARNISH ASSEMBLY INNER
    1. Engage the 7 clips and install the roof side garnish assembly inner.
      Fig 9: Identifying Roof Side Garnish Assembly Inner Clips
      G05281748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 clips.
    3. Install the 3 bolts and tonneau cover holder cap.
      Fig 10: Identifying Tonneau Cover Holder Cap Bolts And Clips
      G05281747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 4 claws and install the seat belt bezel.
      5. Fig 11: Identifying Seat Belt Bezel Claws
      G05281749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL ROOF SIDE RH GARNISH ASSEMBLY INNER
  14. INSTALL ROOM LIGHT ASSEMBLY NO. 2
    1. Connect the connector.
    2. Engage the claw and install the room light assembly No. 2.
      Fig 12: Identifying Room Light Assembly No. 2 Claw
      G05281746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL DECK TRIM SIDE LH PANEL ASSEMBLY
    1. Engage the 2 clips and install the deck trim side panel assembly.
    2. Install the 4 clips.
  16. INSTALL DECK TRIM SIDE RH PANEL ASSEMBLY
  17. INSTALL ROPE HOOK
    1. Install the 2 rope hooks with the 2 bolts.

      Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

      HINT:

      Use the same procedure to install the other side.

      Fig 13: Identifying Deck Trim Side Panel Assembly With Clips
      G05281745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR FLOOR FINISH SIDE LH PLATE
    1. Engage the 2 clips and install the rear floor finish side plate.
    2. Install the clip.
      3. Fig 14: Identifying Rear Floor Finish Side Plate Clips
      G05281744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR FLOOR FINISH SIDE RH PLATE
  20. INSTALL REAR SEAT SIDE LH COVER
    1. Engage the 4 clips and install the rear seat side cover.
    2. Install the 3 clips.
  21. INSTALL REAR SEAT SIDE RH COVER
  22. INSTALL REAR NO. 1 SEAT OUTER LH BELT ASSEMBLY
    1. Install the rear No. 1 seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      2. Fig 15: Identifying Rear Seat Side Cover Clips
      G05281743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR NO. 1 SEAT OUTER RH BELT ASSEMBLY
  24. INSTALL DECK SIDE TRIM LH COVER
    1. Engage the 5 claws and install the deck side trim cover.
      2. Fig 16: Identifying Deck Side Trim Cover Claws
      G05281776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL DECK SIDE TRIM RH COVER
  26. INSTALL CENTER PILLAR LH GARNISH
    1. Engage the clip and install the center pillar garnish.
    2. Install the 2 screws.
      3. Fig 17: Installing Center Pillar LH Garnish
      G05281777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL CENTER PILLAR RH GARNISH
  28. INSTALL CENTER PILLAR LH GARNISH LOWER
    1. Engage the 2 clips and 3 claws, install the center pillar garnish lower.
      2. Fig 18: Identifying Center Pillar Garnish Lower Claws And Clips
      G05281740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL CENTER PILLAR RH GARNISH LOWER
  30. INSTALL FRONT SEAT OUTER LH BELT ASSEMBLY
    1. Install the front seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 19: Identifying Front Seat Outer LH Belt Assembly With Bolt
      G05281739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT SEAT OUTER RH BELT ASSEMBLY
  32. INSTALL LAP BELT OUTER ANCHOR COVER
    1. Engage the 2 claws and install the lap belt outer anchor cover as shown in the illustration.

      HINT:

      Use the same procedure to install the other side.

      Fig 20: Installing Lap Belt Outer Anchor Cover
      G05281780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL FRONT PILLAR LH GARNISH
    1. Install a new clip (A) on the front pillar garnish.
    2. Engage the 2 claws and 2 clips, and install the front pillar garnish.
      3. Fig 21: Identifying Front Pillar Garnish Claws And Clips
      G05281781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL FRONT PILLAR RH GARNISH
  35. INSTALL REAR DOOR OPENING TRIM LH WEATHERSTRIP
  36. INSTALL REAR DOOR OPENING TRIM RH WEATHERSTRIP
  37. INSTALL REAR DOOR SCUFF LH PLATE
    1. Connect the connector, (w/ illumination scuff plate)
    2. Engage the 4 claws and 2 clips, and install the rear door scuff plate.
      3. Fig 22: Identifying Rear Door Scuff Plate Claws And Clips
      G05281735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL REAR DOOR SCUFF RH PLATE
  39. INSTALL FRONT DOOR OPENING TRIM LH WEATHERSTRIP
  40. INSTALL FRONT DOOR OPENING TRIM RH WEATHERSTRIP
  41. INSTALL FRONT DOOR SCUFF LH PLATE
    1. Connect the connector, (w/ illumination scuff plate)
    2. Engage the 6 claws and 4 clips, and install the front door scuff plate.

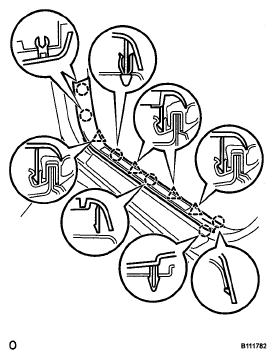

      3. Fig 23: Identifying Front Door Scuff Plate Claws And Clips
      G05281734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL FRONT DOOR SCUFF RH PLATE
  43. INSTALL REAR SEAT ASSEMBLY RH  (See INSTALLATION )
  44. INSTALL REAR SEAT TRACK BRACKET COVER
  45. INSTALL REAR SEAT ASSEMBLY LH  (See INSTALLATION )
  46. INSTALL REAR SEAT TRACK BRACKET COVER
  47. INSTALL DECK SIDE TRIM LH BOX
    1. Install the deck side trim box with the 2 clips.
  48. INSTALL DECK SIDE TRIM RH BOX
  49. INSTALL JACK CARRIER ASSEMBLY
    1. Install the jack carrier assembly, jack assembly and jack carrier support.
      Fig 24: Identifying Deck Side Trim Box With Clips
      G05281784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL REAR FLOOR FINISH PLATE
    1. Engage the 2 claws and 6 clips, and install the rear floor finish plate.
    2. Install the 2 clips.
      3. Fig 25: Identifying Rear Floor Finish Plate Claws And Clips
      G05281785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL BACK DOOR WEATHERSTRIP
  52. INSTALL DECK NO. 3 BOARD SUB-ASSEMBLY
    1. Install the deck No. 3 board sub-assembly with the 2 bolts and 2 nuts.
      Fig 26: Identifying Deck No. 3 Board Sub-Assembly Bolts And Nuts
      G05281730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. INSTALL DECK NO. 2 BOARD SUB-ASSEMBLY
    1. Install the deck No. 2 board sub-assembly with the 4 bolts and 2 nuts.
      Fig 27: Identifying Deck No. 2 Board Sub-Assembly Bolts And Nuts
      G05281731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSTALL DECK FLOOR BOX REAR
    1. Install the deck floor box rear with the 2 clips.
      Fig 28: Identifying Deck Floor Box Rear Clips
      G05281729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. INSTALL DECK FLOOR BOX FRONT
    1. Install the deck floor box front with the 2 clips.
      Fig 29: Identifying Deck Floor Box Front Clips
      G05281728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. INSTALL DECK BOARD SUB-ASSEMBLY
    1. Install the deck board sub-assembly with the 2 bolt.
    2. Engage the 5 clips.
      3. Fig 30: Installing Deck Board Sub-Assembly
      G05281790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. INSTALL TONNEAU COVER ASSEMBLY
  58. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  59. PERFORM INITIALIZATION

    (See INITIALIZATION )

  60. INSPECT SLIDE ADJUSTER LOCK  (See INSTALLATION )
